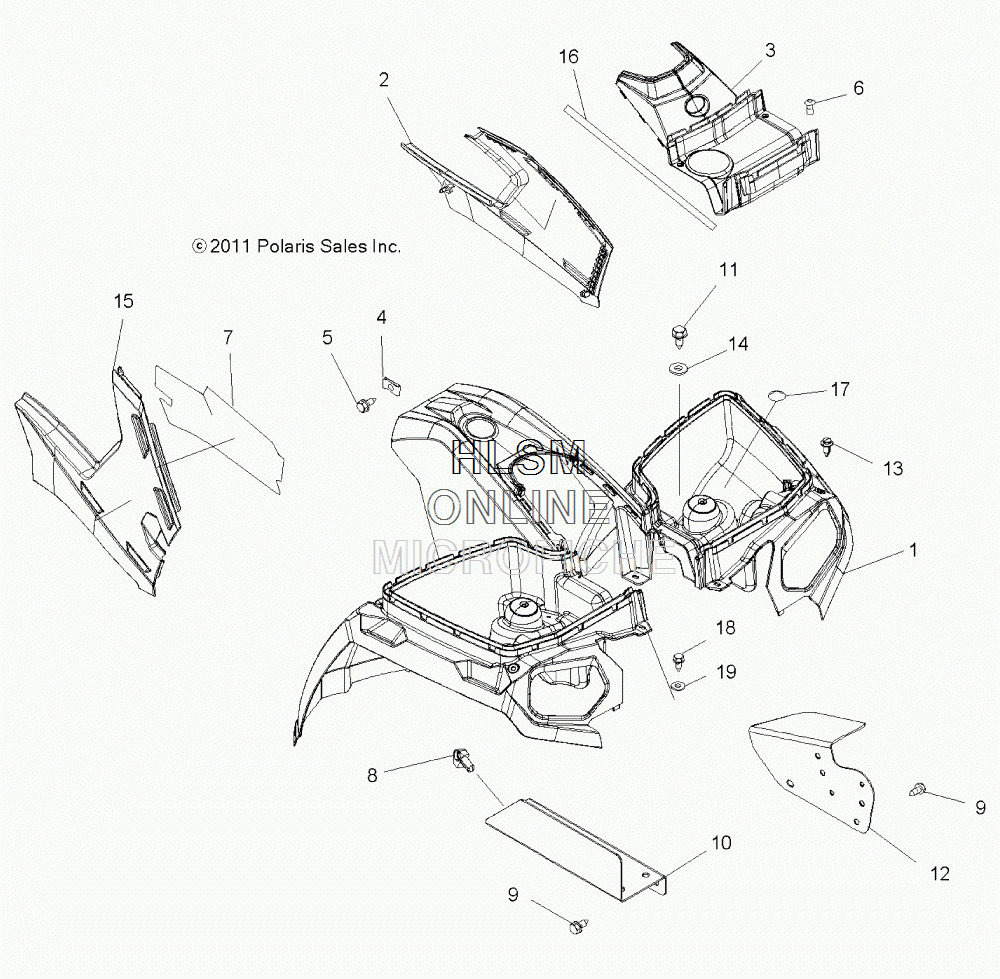

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN FOREST 800 [A12MH76FF] - 2012 года выпуска`
-
№АртикулНазвание
-
12634162-498 ASM., CAB, FRONT, SAGEBRUSH GREEN METALLIC (INCL. WARNING DECALS)ASM., CAB, FRONT, SAGEBRUSH GREEN METALLIC (INCL. WARNING DECALS)
-
25438554-070 PANEL, SIDE, BLACK, LEFT HANDPANEL, SIDE, BLACK, LEFT HAND
-
35439069-498 COVER, FRONT, SAGEBRUSH GREEN METALLICCOVER, FRONT, SAGEBRUSH GREEN METALLIC
-
47670057 NUT, SPEEDNUT, SPEED
-
57517386 SCREWSCREW
-
67519045 SCREWSCREW
-
75813653 FOIL, SIDE PANELFOIL, SIDE PANEL
-
87670102 CLIPCLIP
-
97517386 SCREWSCREW
-
105248100-329 GUARD, SPLASH, RIGHT HANDGUARD, SPLASH, RIGHT HAND
-
117515399 SCREWSCREW
-
125246872 GUARD, SPLASH, LEFT HANDGUARD, SPLASH, LEFT HAND
-
137661855 RIVETRIVET
-
147555960 WASHER, FLATWASHER, FLAT
-
152634049-070 ASM., PANEL/FOIL, BLACK, RIGHT HAND (INCL. 7)ASM., PANEL/FOIL, BLACK, RIGHT HAND (INCL. 7)
-
165521697-350 SEAL, BULBSEAL, BULB
-
175412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
187512232 SCREWSCREW
-
197555859 WASHER, FLATWASHER, FLAT
