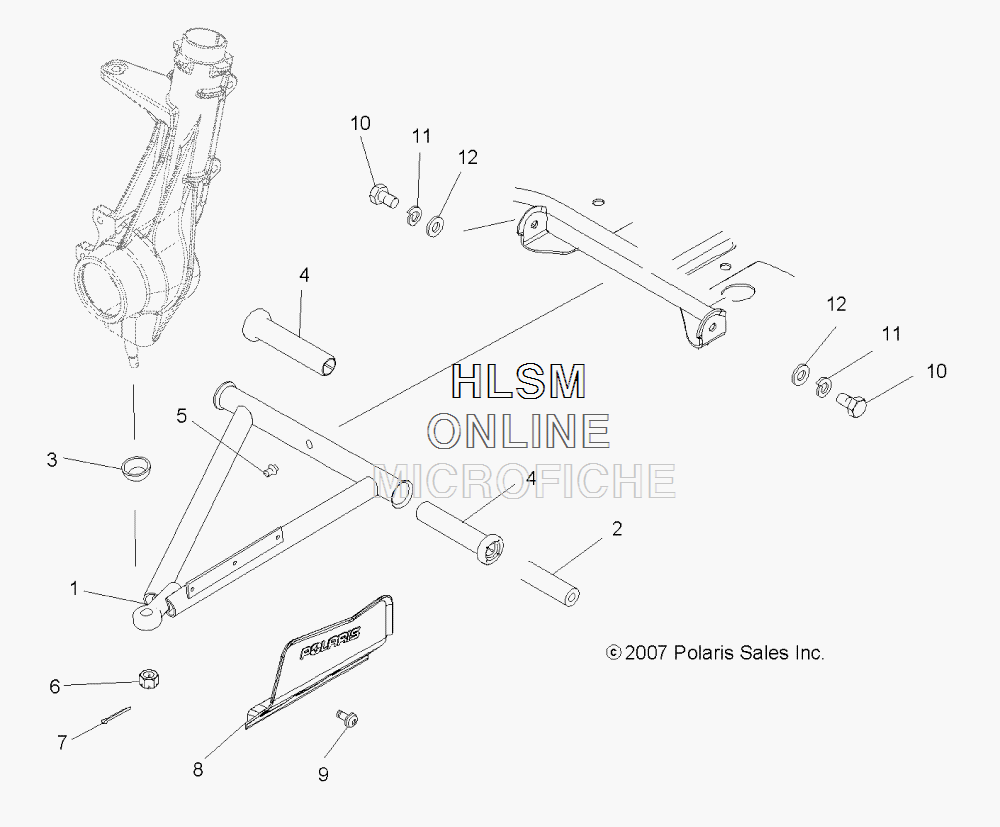

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris SPORTSMAN FOREST 800 6X6 [A12CF76FF] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    1542656-067 A-FRAME, FLARED, BLACK, LEFT HAND (INCL. 2,4,5,7,10,11,12)
    A-FRAME, FLARED, BLACK, LEFT HAND (INCL. 2,4,5,7,10,11,12)
  • 1
    1542657-067 A-FRAME, FLARED, BLACK, RIGHT HAND (INCL. 2,4,5,7,10,11,12)
    A-FRAME, FLARED, BLACK, RIGHT HAND (INCL. 2,4,5,7,10,11,12)
  • 2
    5133806 SHAFT, A-ARM
    SHAFT, A-ARM
  • 3
    5412658 BOOT, BALL JOINT, GREASELESS
    BOOT, BALL JOINT, GREASELESS
  • 4
    5436973 BUSHING, A-ARM, LONG
    BUSHING, A-ARM, LONG
  • 5
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 6
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 7
    7661203 PIN, COTTER
    PIN, COTTER
  • 8
    5435028-070 SHIELD, CV FRONT, BLACK, LEFT HAND
    SHIELD, CV FRONT, BLACK, LEFT HAND
  • 8
    5435029-070 SHIELD, CV FRONT, BLACK, RIGHT HAND
    SHIELD, CV FRONT, BLACK, RIGHT HAND
  • 9
    7512084 SCREW
    SCREW
  • 10
    7512492 SCREW
    SCREW
  • 11
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 12
    7555832 WASHER
    WASHER
