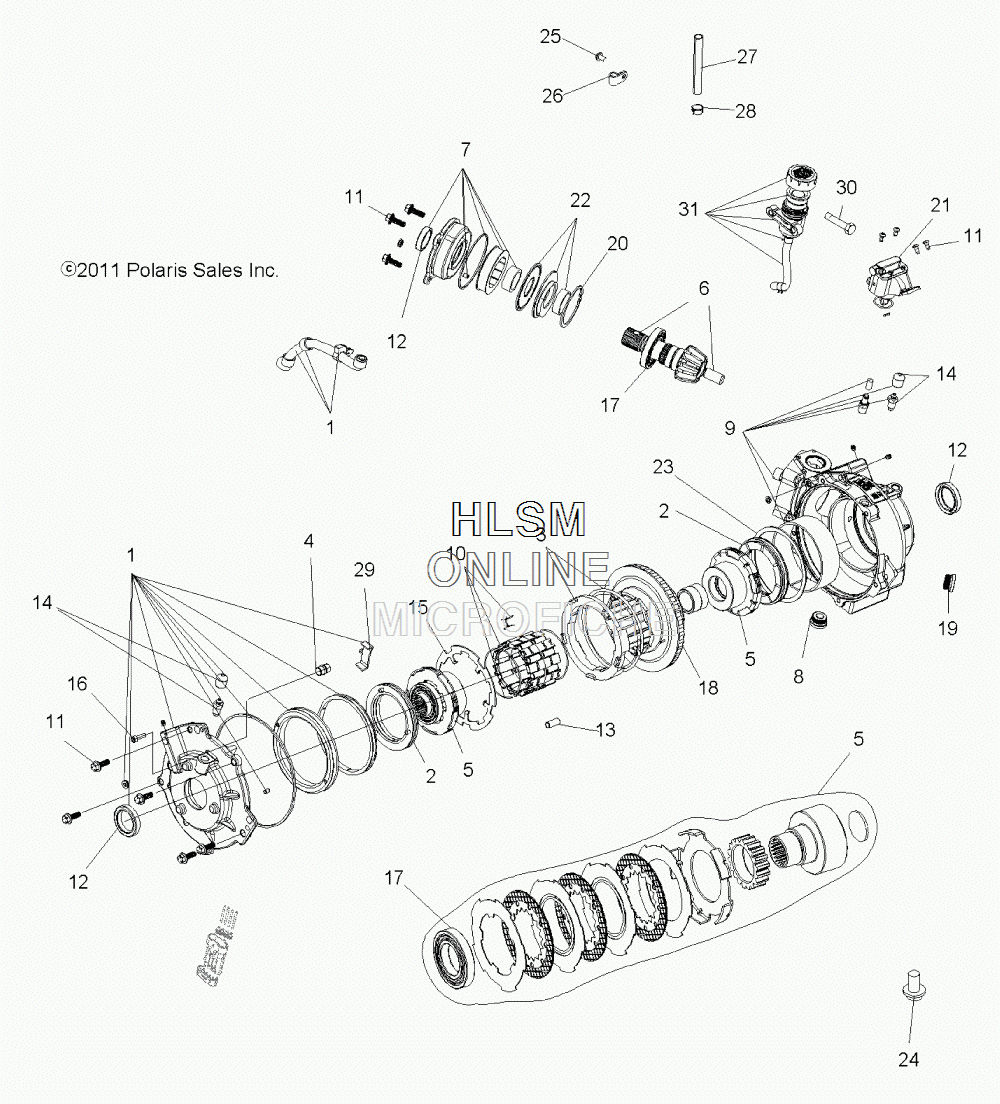

GEARCASE - FRONT - MOUNTING для Polaris SPORTSMAN FOREST 800 6X6 [A12CF76FF] - 2012 года выпуска
-
№АртикулНазвание
-
101332909 ASM., GEARCASE, PINLESS (INCL. 1-23,29,31)ASM., GEARCASE, PINLESS (INCL. 1-23,29,31)
-
13235161 ASM., COVER, OUTPUT, ADC (INCL. COVER, COIL, THRUST PLATE, SEALS, VENT)ASM., COVER, OUTPUT, ADC (INCL. COVER, COIL, THRUST PLATE, SEALS, VENT)
-
23234589 ASM., PISTONASM., PISTON
-
33234908 KIT, SPRING (INCL. RETAINER, SPRING)KIT, SPRING (INCL. RETAINER, SPRING)
-
43234594 ASM., THRUST BUTTON (INCL. SEAL)ASM., THRUST BUTTON (INCL. SEAL)
-
53235258 ASM., HUB, MALE/FEMALE, ADC (INCL. BEARINGS, PLATES, HUBS)ASM., HUB, MALE/FEMALE, ADC (INCL. BEARINGS, PLATES, HUBS)
-
63235187 ASM., RING AND PINION GEAR, ADC (INCL. RING GEAR, PINION, DOWEL PIN)ASM., RING AND PINION GEAR, ADC (INCL. RING GEAR, PINION, DOWEL PIN)
-
73234748 ASM., COVER, INPUT (INCL. SEALS, BEARING, COIL, GROMMET)ASM., COVER, INPUT (INCL. SEALS, BEARING, COIL, GROMMET)
-
83234412 ASM., DRAIN PLUG, MAGNETIC (INCL. MAGNETASM., DRAIN PLUG, MAGNETIC (INCL. MAGNET
-
93235259 ASM., GEARCASE, ADC (INCL. SEALS, PLUGS, VENTS, BUSHING)ASM., GEARCASE, ADC (INCL. SEALS, PLUGS, VENTS, BUSHING)
-
103235261 ASM., ROLL CAGE (INCL. ROLL CAGE, CLIPS)ASM., ROLL CAGE (INCL. ROLL CAGE, CLIPS)
-
113234592 KIT, FASTENERKIT, FASTENER
-
123234593 KIT, REPAIR, SEAL (INCL. SEALS, O-RINGS, SQUARE RING)KIT, REPAIR, SEAL (INCL. SEALS, O-RINGS, SQUARE RING)
-
133234393 KIT, ROLL (INCL. COMPLETE ROLL SET)KIT, ROLL (INCL. COMPLETE ROLL SET)
-
143234431 ASM., BLEEDER VALVEASM., BLEEDER VALVE
-
153234407 PLATE, ARMATUREPLATE, ARMATURE
-
163234408 SET, SCREWSET, SCREW
-
173234390 BEARINGBEARING
-
183234620 HOUSING, CLUTCH, ADCHOUSING, CLUTCH, ADC
-
193234414 PLUG, OIL FILLPLUG, OIL FILL
-
203234416 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
213234429 PUMPPUMP
-
223234434 KIT, CAM AND ARMATUREKIT, CAM AND ARMATURE
-
233234437 SPACER, RING GEARSPACER, RING GEAR
-
247517632 SCREW (GEARCASE MOUNTING)SCREW (GEARCASE MOUNTING)
-
257512024 SCREWSCREW
-
267080693 CLAMP, HOSECLAMP, HOSE
-
278450003-1525 LINE, FUELLINE, FUEL
-
287080307 CLAMP, HOSECLAMP, HOSE
-
293235183 PLATE, THRUST, DVPLATE, THRUST, DV
-
307517312 SCREW (RESERVOIR MOUNTING)SCREW (RESERVOIR MOUNTING)
-
313234751 ASM., RESERVOIRASM., RESERVOIR
