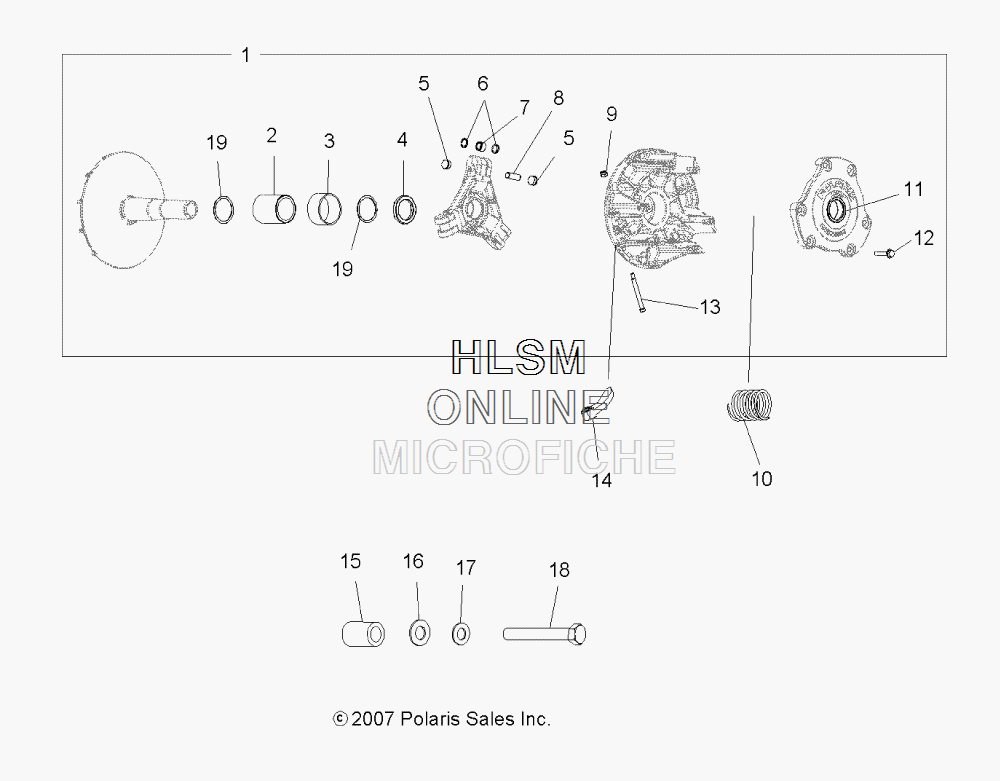

CLUTCH - PRIMARY для Polaris SPORTSMAN FOREST 800 6X6 [A12CF76FF] - 2012 года выпуска
-
№АртикулНазвание
-
11322749 ASM., CLUTCH (INCL. 1-9,11-13.19)ASM., CLUTCH (INCL. 1-9,11-13.19)
-
21520836 ASM., CLUTCHASM., CLUTCH
-
33514492 BEARINGBEARING
-
45632060 SPACERSPACER
-
55431936 BUTTON, CLUTCHBUTTON, CLUTCH
-
65438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
71321622 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
85020422 PIN, ROLLERPIN, ROLLER
-
97541906 NUT, FLEXLOCNUT, FLEXLOC
-
107043372 SPRING, CLUTCHSPRING, CLUTCH
-
113576510 BEARING, COVERBEARING, COVER
-
127518062 SCREWSCREW
-
137512266 BOLT, SHOULDERBOLT, SHOULDER
-
145632117 WEIGHT, SHIFT, 21-74, PMWEIGHT, SHIFT, 21-74, PM
-
155430261 BUSHINGBUSHING
-
165210748 WASHERWASHER
-
177575202 WASHER, LOCKWASHER, LOCK
-
187519287 BOLTBOLT
-
197556335 WASHERWASHER
