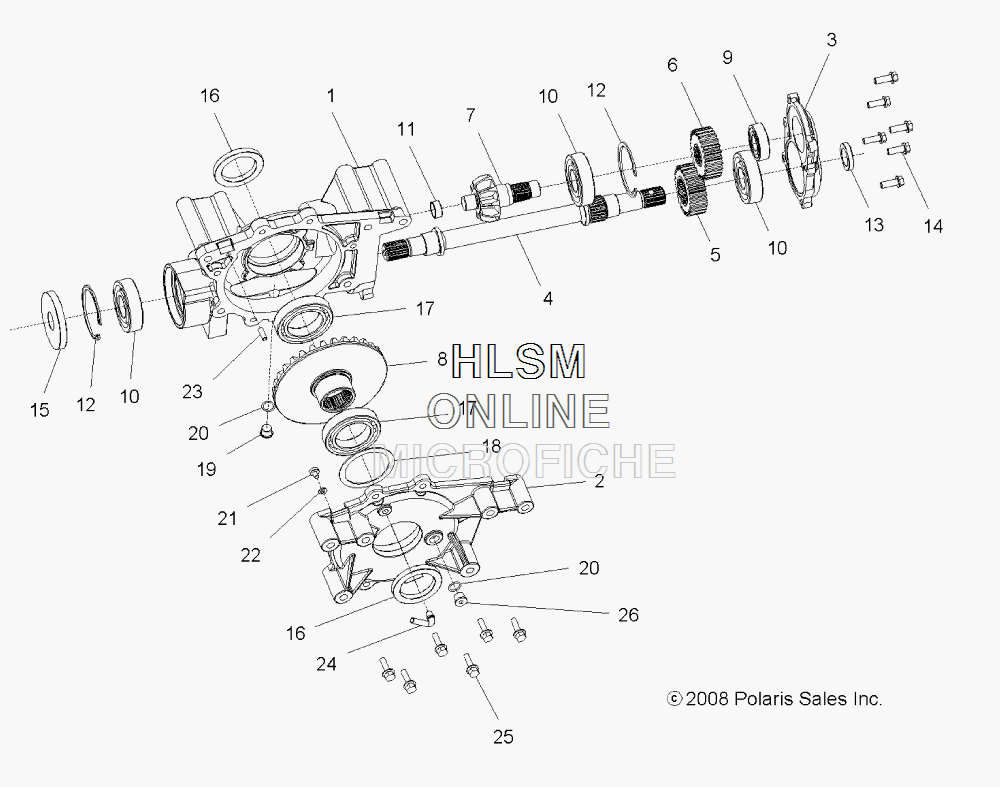

GEARCASE - MID - INTERNAL для Polaris SPORTSMAN FOREST 800 6X6 [A12CF76FF] - 2012 года выпуска
-
№АртикулНазвание
-
-1332715 ASM., GEARCASE, MID (INCL. ALL)ASM., GEARCASE, MID (INCL. ALL)
-
13234840 CASE, RIGHT HANDCASE, RIGHT HAND
-
23234841 CASE, LEFT HANDCASE, LEFT HAND
-
33234842 COVERCOVER
-
43234843 SHAFT, YOKESHAFT, YOKE
-
53234844 GEAR, DRIVEGEAR, DRIVE
-
63234845 GEAR, DRIVENGEAR, DRIVEN
-
73234846 SHAFT, PINIONSHAFT, PINION
-
83234663 GEAR, 31TGEAR, 31T
-
93234847 BEARING, BALLBEARING, BALL
-
103234666 BEARING, BALLBEARING, BALL
-
113234665 BUSHINGBUSHING
-
123234667 RING, RETAININGRING, RETAINING
-
133234848 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
143234849 BOLT, W/WASHERBOLT, W/WASHER
-
153234669 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
163234660 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
173234662 BEARING, BALLBEARING, BALL
-
183234661 SHIMSHIM
-
193234853 PLUGPLUG
-
203234855 O-RINGO-RING
-
213234671 BUTTON, THRUSTBUTTON, THRUST
-
223234672 SHIMSHIM
-
233234670 PIN, DOWELPIN, DOWEL
-
243234673 TUBE, VENTTUBE, VENT
-
253234850 BOLT, FLANGEBOLT, FLANGE
-
263234854 PLUGPLUG
