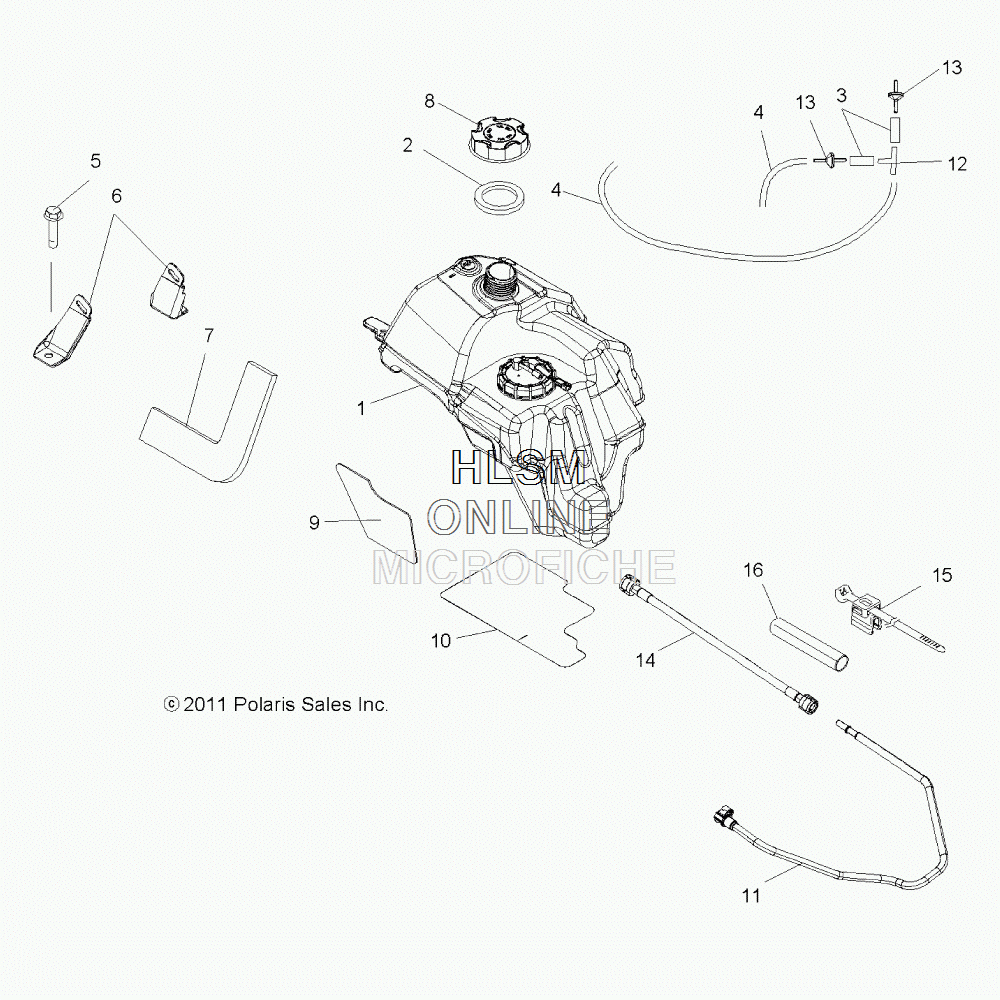

FUEL TANK для Polaris SPORTSMAN FOREST 800 6X6 [A12CF76FF] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    2520865 ASM., TANK, FUEL (INCL. FOIL, PUMP)
    ASM., TANK, FUEL (INCL. FOIL, PUMP)
  • 1
    2204308 KIT, FUEL PUMP (INCL. FUEL PUMP ASM., GASKET, NUT, CLEANING PAD, INSTRUCTIONS)
    KIT, FUEL PUMP (INCL. FUEL PUMP ASM., GASKET, NUT, CLEANING PAD, INSTRUCTIONS)
  • 2
    5812123 GASKET
    GASKET
  • 3
    8450061-600 LINE, OIL
    LINE, OIL
  • 4
    8360009-600 LINE, FUEL
    LINE, FUEL
  • 5
    7517219 SCREW
    SCREW
  • 6
    5247184 BRACKET, FUEL COVER MOUNT, LEFT HAND
    BRACKET, FUEL COVER MOUNT, LEFT HAND
  • 6
    5247185 BRACKET, FUEL COVER MOUNT, RIGHT HAND
    BRACKET, FUEL COVER MOUNT, RIGHT HAND
  • 7
    5812265 SEAL, FOAM
    SEAL, FOAM
  • 8
    5433687 CAP, GAS TANK (INCL. 2)
    CAP, GAS TANK (INCL. 2)
  • 9
    5813282 FOIL
    FOIL
  • 10
    5813218 FOIL
    FOIL
  • 11
    2520820 LINE, FUEL, HARD
    LINE, FUEL, HARD
  • 12
    7052048 FITTING, T
    FITTING, T
  • 13
    7051011 VALVE, CHECK, VENT
    VALVE, CHECK, VENT
  • 14
    2520821 LINE, FUEL, SOFT
    LINE, FUEL, SOFT
  • 15
    7081808 STRAP, CABLE TIE W/CLIP
    STRAP, CABLE TIE W/CLIP
  • 16
    5521922 SLEEVE, TUBE, TWIST
    SLEEVE, TUBE, TWIST
