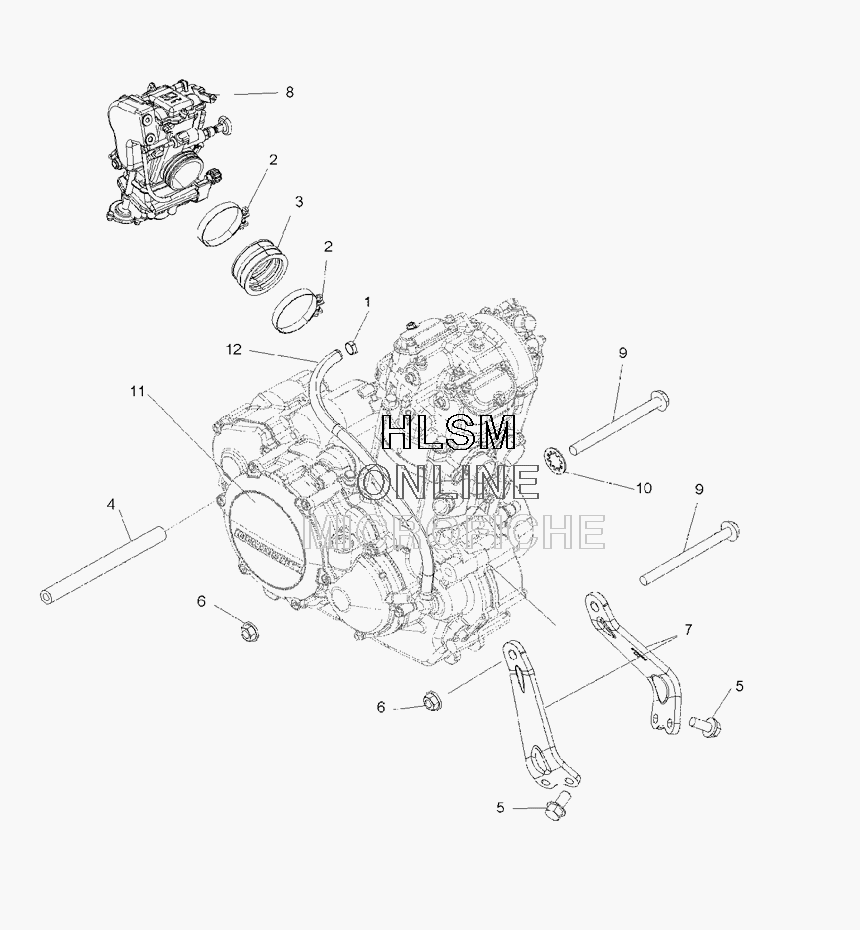

ENGINE - MOUNTING для Polaris OUTLAW 450 S (A09GJ45AA) - 2009 года выпуска`
-
№АртикулНазвание
-
17080699 CLAMP, HOSECLAMP, HOSE
-
27080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
35413231 BOOT-INTAKE, 525ATVBOOT-INTAKE, 525ATV
-
45134957 BUSHING-MOTOR MOUNTBUSHING-MOTOR MOUNT
-
57518514 BOLT-M8X1.25X25, HXFLG-OLIVE DBOLT-M8X1.25X25, HXFLG-OLIVE D
-
67547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
75251131 BRKT-MOUNT, ENGINE, LEFT HANDBRKT-MOUNT, ENGINE, LEFT HAND
-
75251132 MOUNT-ENGINE, RIGHT HANDMOUNT-ENGINE, RIGHT HAND
-
81203826 ASM-CARB, KEIHIN FCR, 3900VASM-CARB, KEIHIN FCR, 3900V
-
97518665 BOLT-M10X1.25X130, HXFLG-OLIVEDBOLT-M10X1.25X130, HXFLG-OLIVED
-
107575202 WASHER LOCKWASHER LOCK
-
111203609 ENGINE-ES045KLE012ENGINE-ES045KLE012
-
125413360 HOSE-BREATHERHOSE-BREATHER
Все узлы модели:
- AIR INTAKE SYSTEM
- AXLE - REAR W/ HOUSING
- BATTERY
- BRAKE - FRONT CALIPER - DUAL PISTON
- BRAKE - FRONT CALIPER - SINGLE PISTON
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR
- BRAKE - REAR CALIPER
- BUMPER AND GRAB BAR
- CAB - REAR W/FOOTWELLS
- CARBURETOR
- CLUTCH - MASTER CYLINDER
- CLUTCH COVER
- CONTROLS- THROTTLE ASSY/CABLE
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DRIVE - VALVE
- • ENGINE - MOUNTING
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FRAME
- FUEL TANK
- GEARCASE - CLUTCH
- GUARD - FRONT SPROCKET
- HANDLEBAR - W/STEERING POST
- HEADLIGHT - TAILLIGHT W/BULBS
- IGNITION SYSTEM
- OIL PUMP
- REGULATOR - CDI - COIL
- SEAT ASSY.
- SHAFT - BALANCER
- SHIFT - SHAFT
- STARTING MOTOR
- STEERING - TIE RODS W/LOWER ASSEMBYL
- SUSPENSION - FRONT FOX SHOCK
- SUSPENSION - REAR SHOCK
- SUSPENSION - SWING ARM W/ REAR SHOCK ASSY
- SUSPENSION - SWING ARM W/ SHOCK MOUNTING
- SUSPENSION- FRONT
- TIMING SYSTEM
- TOOL KIT
- TRANSMISSION - INTERNALS
- TRANSMISSION 2
- WHEEL - FRONT
- WHEEL - REAR
- WIRE HARNESS
