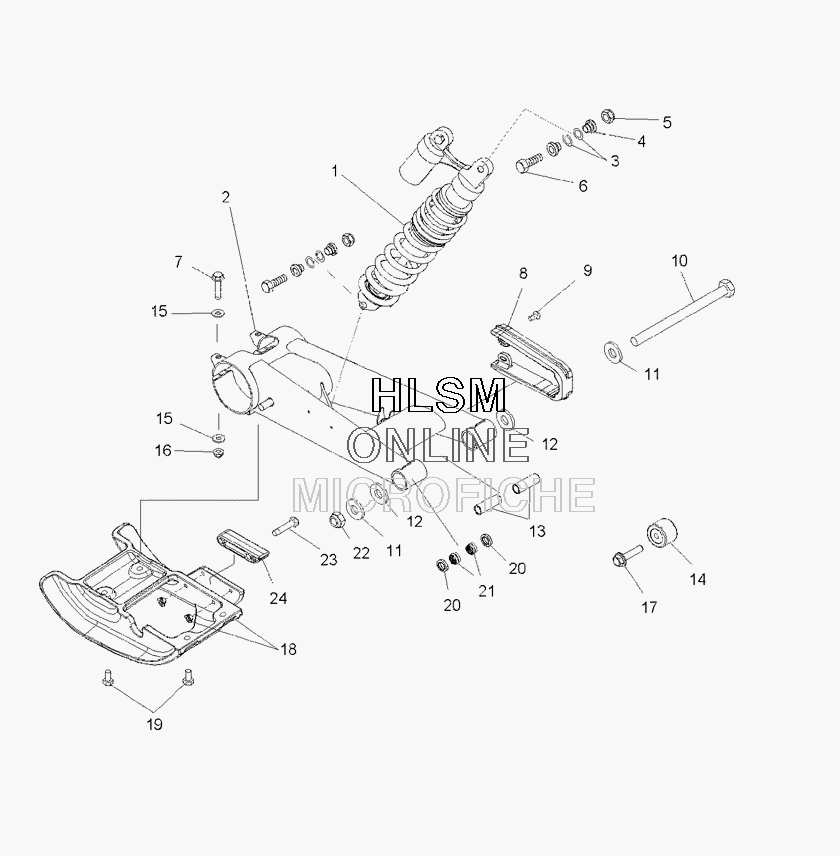

SUSPENSION - SWING ARM W/ REAR SHOCK ASSY для Polaris OUTLAW 450 S (A09GJ45AA) - 2009 года выпуска
-
№АртикулНазвание
-
21542376-385 ASM-SWING ARM, SLVR (INCL. 13, 20, 21)ASM-SWING ARM, SLVR (INCL. 13, 20, 21)
-
35412290 O-RING, 0.600IDX.210O-RING, 0.600IDX.210
-
45334195 BUSHING-REDUCER, .500 TO .4375BUSHING-REDUCER, .500 TO .4375
-
57547066 NUT-7/16-20, NYLOK, YNUT-7/16-20, NYLOK, Y
-
67518207 BOLT-7/16-20X2.25, HXHDCP, G5, YBOLT-7/16-20X2.25, HXHDCP, G5, Y
-
77518561 BOLT-M10X1.25X70, HXFLG-OLIVE DBOLT-M10X1.25X70, HXFLG-OLIVE D
-
85437259 SLIDER-CHAINSLIDER-CHAIN
-
97519069 SCREWSCREW
-
107518810 BOLT-SWINGARMBOLT-SWINGARM
-
117556264 WASHER-9/16, HARDENEDWASHER-9/16, HARDENED
-
125434754 BUSHING-THRUST WASHERBUSHING-THRUST WASHER
-
135135991 SPACER-SWING ARMSPACER-SWING ARM
-
141590360 ASM-CHAIN ROLLERASM-CHAIN ROLLER
-
157555832 WASHERWASHER
-
167547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
177518469 BOLT-M8X1.25X35, HX HD FLGBOLT-M8X1.25X35, HX HD FLG
-
181542667 ASM-GUARD, SWINGARMASM-GUARD, SWINGARM
-
187547448 ASM-GUARD, SWINGARMASM-GUARD, SWINGARM
-
197518181 SCR-5/16-18X3/4, FLGHX, 65, LK-YSCR-5/16-18X3/4, FLGHX, 65, LK-Y
-
203610104 SEAL-.875X1.125X20SEAL-.875X1.125X20
-
213514473 BEARING-NEEDLE, .875X1.125X.750BEARING-NEEDLE, .875X1.125X.750
-
227518299 NUT-FLANGE, M14X1.50 -DNUT-FLANGE, M14X1.50 -D
-
237518512 BOLT-M6X1.0X65, HXFLG-OLIVE D.BOLT-M6X1.0X65, HXFLG-OLIVE D.
-
245435411 GUIDE-CHAINGUIDE-CHAIN
