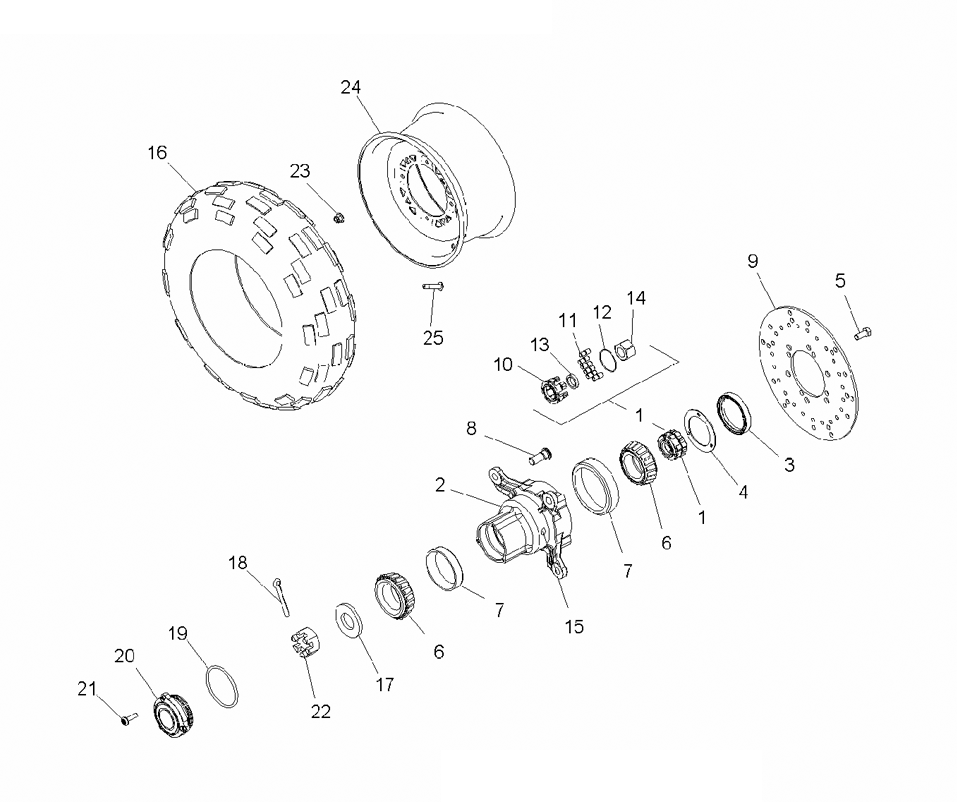

WHEEL - FRONT для Polaris SCRAMBLER 4X4 (BG50AA) (SONIC BLUE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    1520281 CLUTCH, FR HUB E/M [SPLINED DRIVE SHAFT]
    CLUTCH, FR HUB E/M [SPLINED DRIVE SHAFT]
  • 2
    1520243 KIT-WHEEL HUB ASSMEBLY W/CAP [INCL. 3,7,8]
    KIT-WHEEL HUB ASSMEBLY W/CAP [INCL. 3,7,8]
  • 3
    3610019 SEAL, FR. HUB
    SEAL, FR. HUB
  • 4
    5211148 PLATE, ARMATURE
    PLATE, ARMATURE
  • 5
    7512325 BOLT
    BOLT
  • 6
    3554506 BRG, TAPER.ROLL.CONE
    BRG, TAPER.ROLL.CONE
  • 7
    3554507 BRG, TAPER, ROLL CUP
    BRG, TAPER, ROLL CUP
  • 8
    7515513 STUD
    STUD
  • 9
    5240035 DISC-BRAKE, 7.21 OD, .158, 20T
    DISC-BRAKE, 7.21 OD, .158, 20T
  • 10
    3250028 CAGE, ROLL
    CAGE, ROLL
  • 11
    3250010 ROLL
    ROLL
  • 12
    3250032 SPRING, GARTER
    SPRING, GARTER
  • 13
    1321814 SPACER
    SPACER
  • 14
    3250030 CAM
    CAM
  • 15
    7052045 PLUG, MAGNETIC DRAIN
    PLUG, MAGNETIC DRAIN
  • 16
    5412324 TIRE-23X7-10, TITAN 489, 2 STAR
    TIRE-23X7-10, TITAN 489, 2 STAR
  • 17
    7556004 WASHER
    WASHER
  • 18
    7661402 PIN, COTTER
    PIN, COTTER
  • 19
    5410470 O RING
    O RING
  • 20
    5432611 CAP, HUB, 3-LOBE, AWD
    CAP, HUB, 3-LOBE, AWD
  • 21
    7512027 SCREW
    SCREW
  • 22
    7542810 NUT, SLOTTED
    NUT, SLOTTED
  • 23
    7547237 NUT-FLANGE, TWO PIECE, 3/8-24
    NUT-FLANGE, TWO PIECE, 3/8-24
  • 24
    1520175-486 RIM, FRONT, 5.86X10, NR SLVR
    RIM, FRONT, 5.86X10, NR SLVR
  • 25
    1525017 VALVE, RIM
    VALVE, RIM
