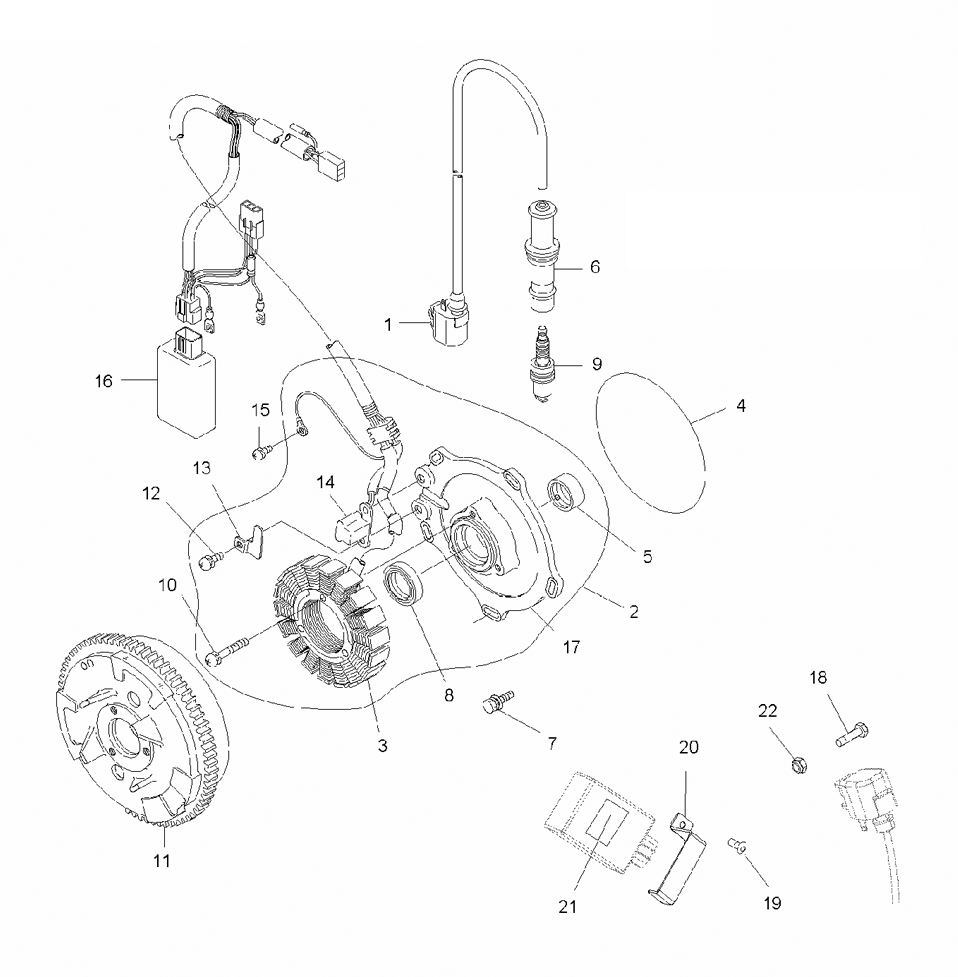

IGNITION SYSTEM для Polaris SCRAMBLER 4X4 (BG50AA) (SONIC BLUE) - 2008 года выпуска
‹-+›
-
№АртикулНазвание
-
13089260 ASM-IGNITION COIL [INCL. 1,6]ASM-IGNITION COIL [INCL. 1,6]
-
23089572 ASM., PLATE [INCL. 5,6,8-13,15,17]ASM., PLATE [INCL. 5,6,8-13,15,17]
-
33089249 STATOR [INCL. 14]STATOR [INCL. 14]
-
43084978 O-RINGO-RING
-
53084972 BEARING, METALBEARING, METAL
-
63084980 SPARK PLUG CAPSPARK PLUG CAP
-
73081657 BOLT AND WASHERBOLT AND WASHER
-
83084973 SEAL, OILSEAL, OIL
-
93070172 SPARK PLUG, BKR6E (4)SPARK PLUG, BKR6E (4)
-
103089251 SCREW AND WASHERSCREW AND WASHER
-
113089247 FLYWHEEL-W/RING GEARFLYWHEEL-W/RING GEAR
-
123084976 SCREW AND WASHERSCREW AND WASHER
-
133089250 BAND-PULSEBAND-PULSE
-
143089254 COIL-PULSERCOIL-PULSER
-
153081256 SCREW AND WASHERSCREW AND WASHER
-
163089238 CDI SYSTEMCDI SYSTEM
-
173089248 PLATEPLATE
-
187512007 BOLTBOLT
-
197512024 SCREWSCREW
-
205246747 BRKT-CDI, DIGITAL, LONGBRKT-CDI, DIGITAL, LONG
-
215810317 PAD, BULK FUELPAD, BULK FUEL
-
227541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
