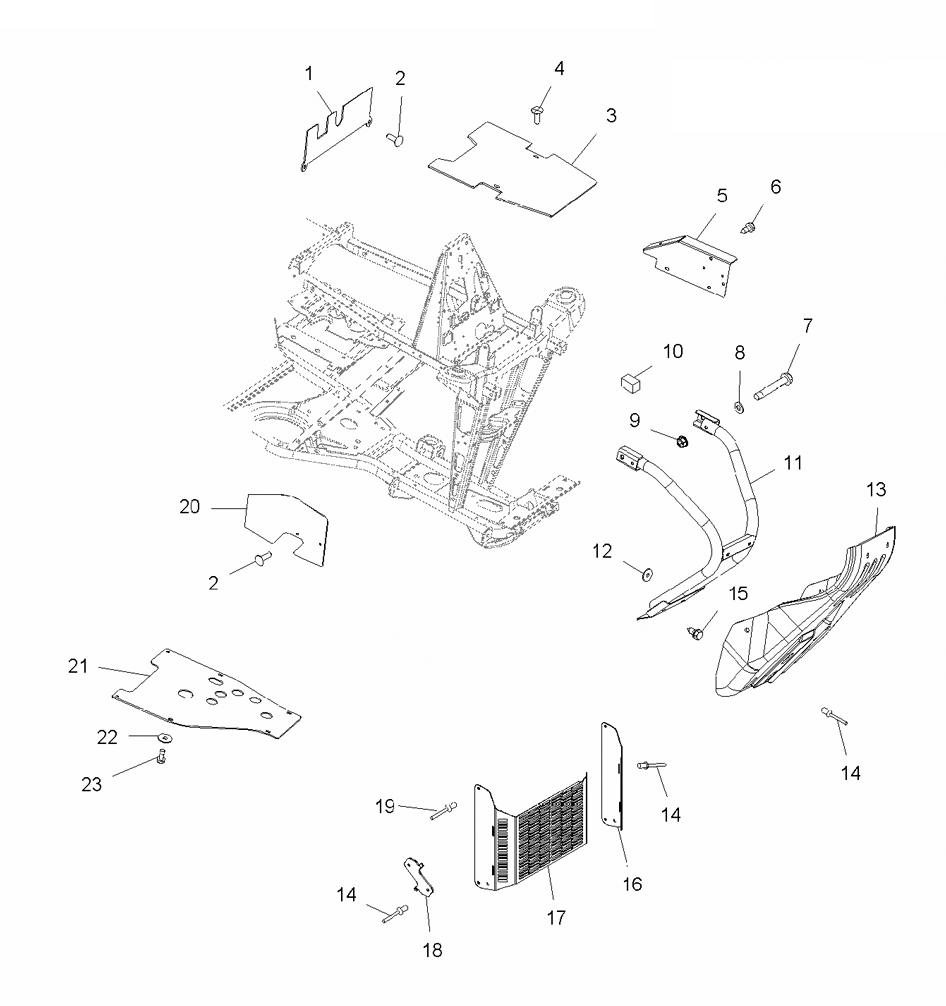

BUMPER - FRONT для Polaris SCRAMBLER 4X4 (BG50AA) (SONIC BLUE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    5434162 SHIELD-SPLASH, REAR
    SHIELD-SPLASH, REAR
  • 2
    7670088 CLIP, PLASTIC DART, NYLON
    CLIP, PLASTIC DART, NYLON
  • 3
    5436927 SHIELD-SPLASH, FRONT
    SHIELD-SPLASH, FRONT
  • 4
    7522026 SCREW
    SCREW
  • 5
    5247602-067 SHIELD-SPLASH, LEFT HAND, BLACK
    SHIELD-SPLASH, LEFT HAND, BLACK
  • 6
    7517386 SCREW
    SCREW
  • 7
    7512329 BOLT
    BOLT
  • 8
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 9
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 10
    5811675 PLUG, FRAME, FOAM
    PLUG, FRAME, FOAM
  • 11
    1012773-067 BUMPER, FR, GEN 3, BLACK.
    BUMPER, FR, GEN 3, BLACK.
  • 12
    7558201 WASHER, FLAT
    WASHER, FLAT
  • 13
    5432378-070 PLATE, SKID, BUMPER, BLACK
    PLATE, SKID, BUMPER, BLACK
  • 14
    7621418 RIVET, POP
    RIVET, POP
  • 15
    7515399 SCREW
    SCREW
  • 16
    5248297-067 SHIELD-RADIATOR SIDE, LEFT HAND, BLACK
    SHIELD-RADIATOR SIDE, LEFT HAND, BLACK
  • 17
    5248298-067 SHIELD-RADIATOR SIDE, RIGHT HAND, BLACK
    SHIELD-RADIATOR SIDE, RIGHT HAND, BLACK
  • 18
    5248299 BRKT-RADIATOR SHIELD, 3/16, PLTD
    BRKT-RADIATOR SHIELD, 3/16, PLTD
  • 19
    7661121 RIVET-1/4''MULTIGRIP, .08-.35, B
    RIVET-1/4''MULTIGRIP, .08-.35, B
  • 20
    5434085 GUARD-SPLASH, RIGHT HAND
    GUARD-SPLASH, RIGHT HAND
  • 21
    5432763 GUARD, ROCK
    GUARD, ROCK
  • 22
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 23
    7515179 SCREW
    SCREW
