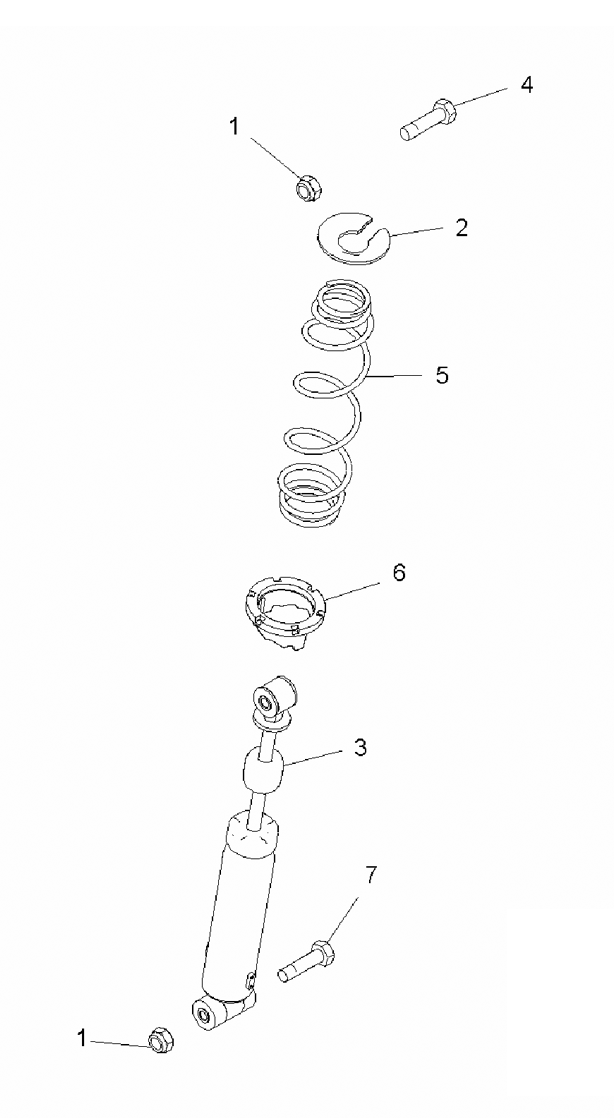

SUSPENSION - REAR SHOCK для Polaris SCRAMBLER 4X4 (BG50AA) (SONIC BLUE) - 2008 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25251753 RETAINER-SPRING, STEELRETAINER-SPRING, STEEL
-
37042319 SHOCK-REAR, SACHSSHOCK-REAR, SACHS
-
47515415 SCREWSCREW
-
57043068-133 SPRING-COMP, 110/180#/IN, BR WHTSPRING-COMP, 110/180#/IN, BR WHT
-
65630551 CAM, ADJUST, SPRINGCAM, ADJUST, SPRING
-
77517761 SCREW 3/8-24X2.5HX/CP GR8-YSCREW 3/8-24X2.5HX/CP GR8-Y
