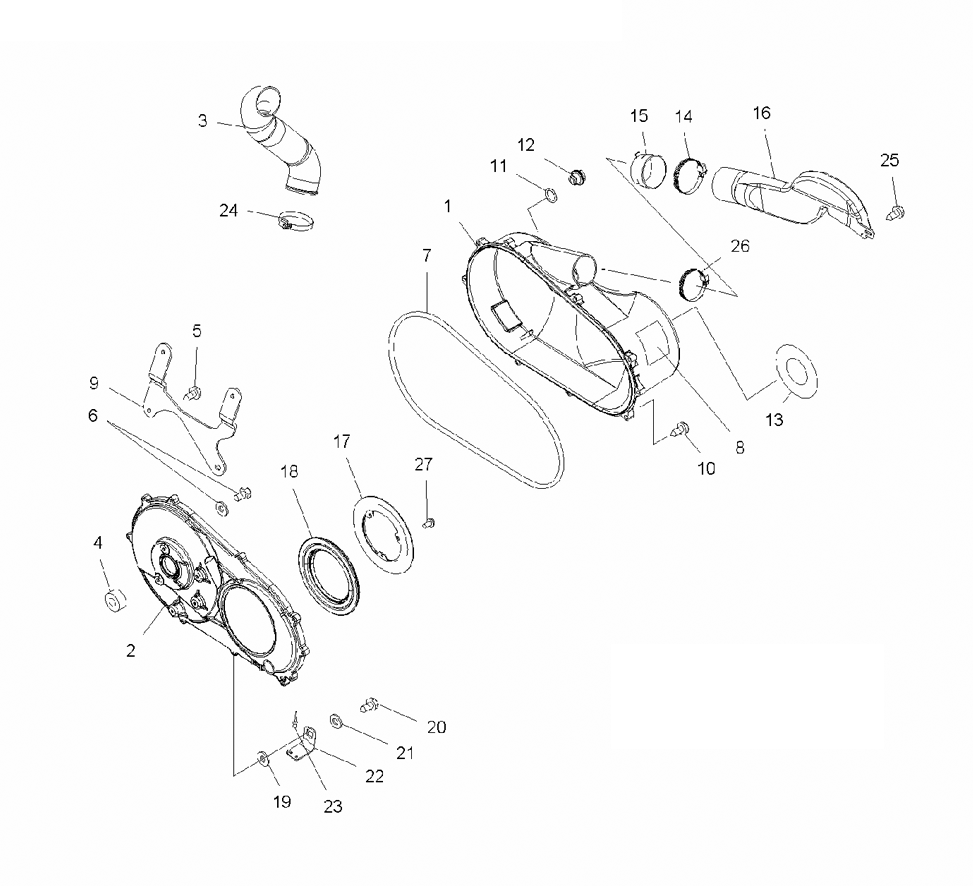

CLUTCH COVER для Polaris SCRAMBLER 4X4 (BG50AA) (SONIC BLUE) - 2008 года выпуска
-
№АртикулНазвание
-
12633262 ASM-COVER, CLUTCH, OUTER, HV [INCL. OUTER COVER, 11, 12]ASM-COVER, CLUTCH, OUTER, HV [INCL. OUTER COVER, 11, 12]
-
22201957 COVER [INCL. 7, 10, 18]COVER [INCL. 7, 10, 18]
-
35437060 DUCT-CLUTCH, AIR INLETDUCT-CLUTCH, AIR INLET
-
45411553 SEAL, CVR, INNERSEAL, CVR, INNER
-
57517386 SCREWSCREW
-
67510000 BOLT AND WASHERBOLT AND WASHER
-
75521738 SEAL-OUTER CLUTCH COVERSEAL-OUTER CLUTCH COVER
-
87172563 DECALDECAL
-
95247524-067 BRKT-CLUTCH COVER, BLACKBRKT-CLUTCH COVER, BLACK
-
107512094 SCREWSCREW
-
115410542 O RINGO RING
-
125434264 PLUG-DRAINPLUG-DRAIN
-
137172746 DECAL-AUTOMATIC TRANSMISSIONDECAL-AUTOMATIC TRANSMISSION
-
147080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
155412636 BOOT-DUCT, HI-FLOWBOOT-DUCT, HI-FLOW
-
165434160 DUCT-CLUTCH, OUT, HI-FLOW, 13.6DUCT-CLUTCH, OUT, HI-FLOW, 13.6
-
175242046 BRKT-CLUTCH SEALBRKT-CLUTCH SEAL
-
185412637 SEAL-COVER CASE, ENGINESEAL-COVER CASE, ENGINE
-
197555932 WASHER, NYLONWASHER, NYLON
-
207512098 SCREWSCREW
-
217555935 WASHERWASHER
-
225247949 BRKT-CLUTCH COVER, FRT, PLTDBRKT-CLUTCH COVER, FRT, PLTD
-
237661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
247080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
257517386 SCREWSCREW
-
267081279 CLAMP-BAND, NARROW 70-90MMCLAMP-BAND, NARROW 70-90MM
-
273084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
