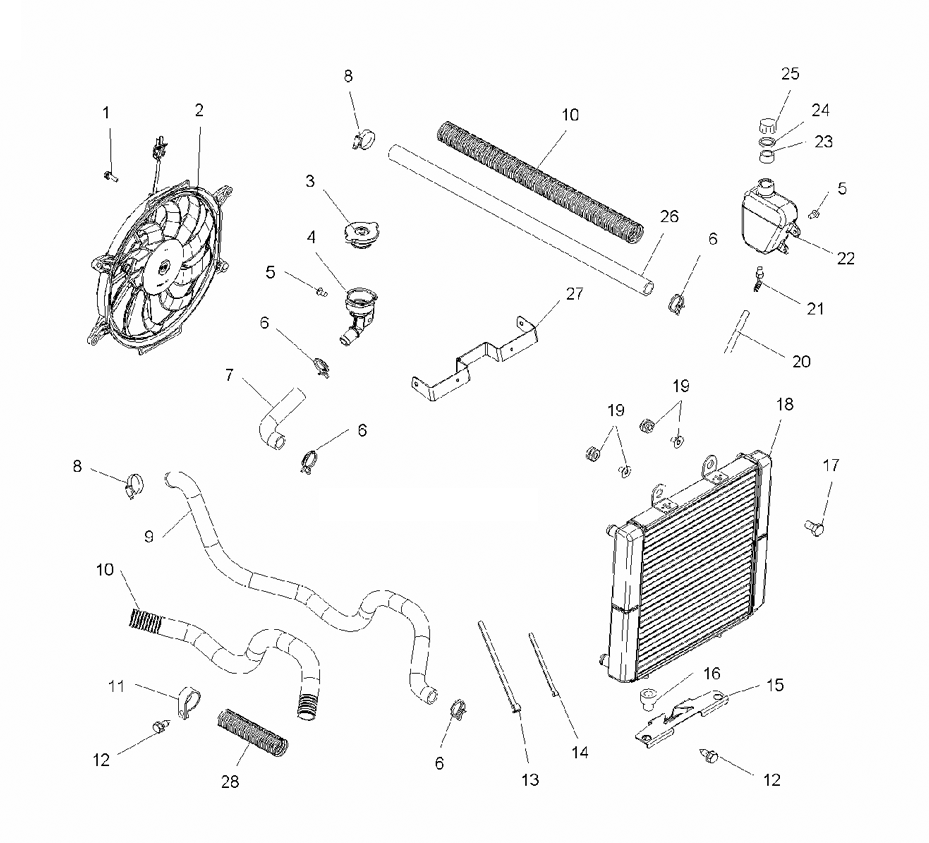

COOLING SYSTEM для Polaris SPORTSMAN 500 EFI INT (A07MH50FC) - 2007 года выпуска`
-
№АртикулНазвание
-
17517975 BOLT-M6 HEX HDBOLT-M6 HEX HD
-
22410383 ASM-FAN AND MOTOR, SPAL, 11''ASM-FAN AND MOTOR, SPAL, 11''
-
31240044 CAP-PRESSURE, 13 PSICAP-PRESSURE, 13 PSI
-
45412402 FILLER NECKFILLER NECK
-
57512084 SCREWSCREW
-
67080826 CLAMP-ROTO CLIPCLAMP-ROTO CLIP
-
75412405 HOSE-FILLER NECKHOSE-FILLER NECK
-
87080696 CLAMP, HOSE,1.25, WORM DRIVECLAMP, HOSE,1.25, WORM DRIVE
-
95412404 HOSE-LOWER, ENGINEHOSE-LOWER, ENGINE
-
105521550 PLASTIC, HOSEGUARD 18''PLASTIC, HOSEGUARD 18''
-
117080908 CLAMP, HOSE 1.375,VNL ECOATEDCLAMP, HOSE 1.375,VNL ECOATED
-
127517386 SCREWSCREW
-
137080138 CABLE TIECABLE TIE
-
147080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
-
155247047-067 BRKT-RADIATOR, LOWER, BLACKBRKT-RADIATOR, LOWER, BLACK
-
165410584 BUSHING-MOUNT, LOWER RADIATORBUSHING-MOUNT, LOWER RADIATOR
-
177515179 SCREWSCREW
-
181240305 RADIATOR-CROSSFLOW [IF BUILT BEFORE 10/05/06]RADIATOR-CROSSFLOW [IF BUILT BEFORE 10/05/06]
-
181240305 RADIATOR-CROSSFLOW [IF BUILT AFTER 10/05/06]RADIATOR-CROSSFLOW [IF BUILT AFTER 10/05/06]
-
195411975 GROMMET/INSERT-ASMGROMMET/INSERT-ASM
-
208450003-1525 LINE, FUEL, 1/4 ID (1525 CM.)LINE, FUEL, 1/4 ID (1525 CM.)
-
217052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
225436936 TANK-SURGETANK-SURGE
-
235433774 CAP, PLUG 9X (GRN), FLEX TEMPCAP, PLUG 9X (GRN), FLEX TEMP
-
245810279 GASKETGASKET
-
255430743 CAP, OVERFLOWCAP, OVERFLOW
-
265412403 HOSE-UPPER, ENGINEHOSE-UPPER, ENGINE
-
275246754-067 BRKT-RADIATOR, UPPER, BLACKBRKT-RADIATOR, UPPER, BLACK
-
285521602 TUBING-CONVOLUTED,1''X4.00''TUBING-CONVOLUTED,1''X4.00''
