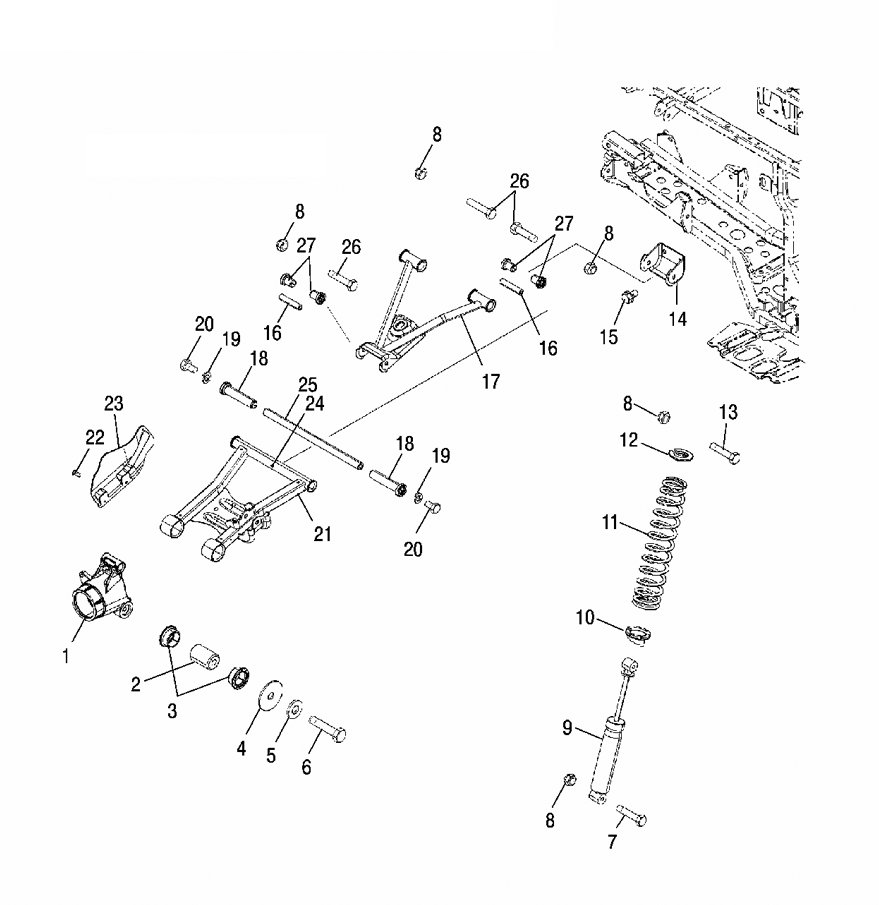

SUSPENSION - REAR для Polaris SPORTSMAN 500 EFI INT (A07MH50FC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5135563 CARRIER-BEARING, WHEEL (MACH)
    CARRIER-BEARING, WHEEL (MACH)
  • 2
    5631142 BUSHING-BRNG, CARRIER, PM,7/16
    BUSHING-BRNG, CARRIER, PM,7/16
  • 3
    5434550 BUSHING-CONTROL, LOWER, BLACK
    BUSHING-CONTROL, LOWER, BLACK
  • 4
    7555740 WASHER
    WASHER
  • 5
    7552614 WASHER, LOCK
    WASHER, LOCK
  • 6
    7517873 BOLT-7/16-14 UNC-2AX2.75'' GR5
    BOLT-7/16-14 UNC-2AX2.75'' GR5
  • 7
    7515415 SCREW
    SCREW
  • 8
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 9
    7043100 SHOCK-RR, IRS
    SHOCK-RR, IRS
  • 10
    5630551 CAM, ADJUST, SPRING
    CAM, ADJUST, SPRING
  • 11
    7043091-067 SPRING-COMP, REAR 100#,15LG, BLACK
    SPRING-COMP, REAR 100#,15LG, BLACK
  • 12
    5631887 RETAINER-SPRING
    RETAINER-SPRING
  • 13
    7515433 SCREW
    SCREW
  • 14
    5247345 BRKT-A-ARM PIVOT PLTD
    BRKT-A-ARM PIVOT PLTD
  • 15
    7518364 BOLT-3/8-16X7/8 HEX FLANGE GR5
    BOLT-3/8-16X7/8 HEX FLANGE GR5
  • 16
    5020826 SHAFT, A-ARM, SHORT
    SHAFT, A-ARM, SHORT
  • 17
    1014320-067 WELD-UPPER CONTROL ARM, LEFT HAND, BLACK
    WELD-UPPER CONTROL ARM, LEFT HAND, BLACK
  • 17
    1014321-067 WELD-UPPER CONTROL ARM, RIGHT HAND, BLACK
    WELD-UPPER CONTROL ARM, RIGHT HAND, BLACK
  • 18
    5434551 BUSHING-A-ARM, LONG, BLACK
    BUSHING-A-ARM, LONG, BLACK
  • 19
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 20
    7512492 SCREW
    SCREW
  • 21
    1015117-067 CONTROL,LOWER, LEFT HAND, BLACK
    CONTROL,LOWER, LEFT HAND, BLACK
  • 21
    1015118-067 CONTROL,LOWER, RIGHT HAND, BLACK
    CONTROL,LOWER, RIGHT HAND, BLACK
  • 22
    7512084 SCREW
    SCREW
  • 23
    5435008-070 SHIELD-CV, REAR,BASIC, BLACK, LEFT HAND
    SHIELD-CV, REAR,BASIC, BLACK, LEFT HAND
  • 23
    5435009-070 SHIELD-CV, REAR,BASIC, BLACK, RIGHT HAND
    SHIELD-CV, REAR,BASIC, BLACK, RIGHT HAND
  • 24
    7080433 FITTING, LUBRICATION, THREADED
    FITTING, LUBRICATION, THREADED
  • 25
    5133806 SHAFT-A-ARM
    SHAFT-A-ARM
  • 26
    7515472 BOLT
    BOLT
  • 27
    5434548 BUSHING-A-ARM-SHORT, BLACK
    BUSHING-A-ARM-SHORT, BLACK
