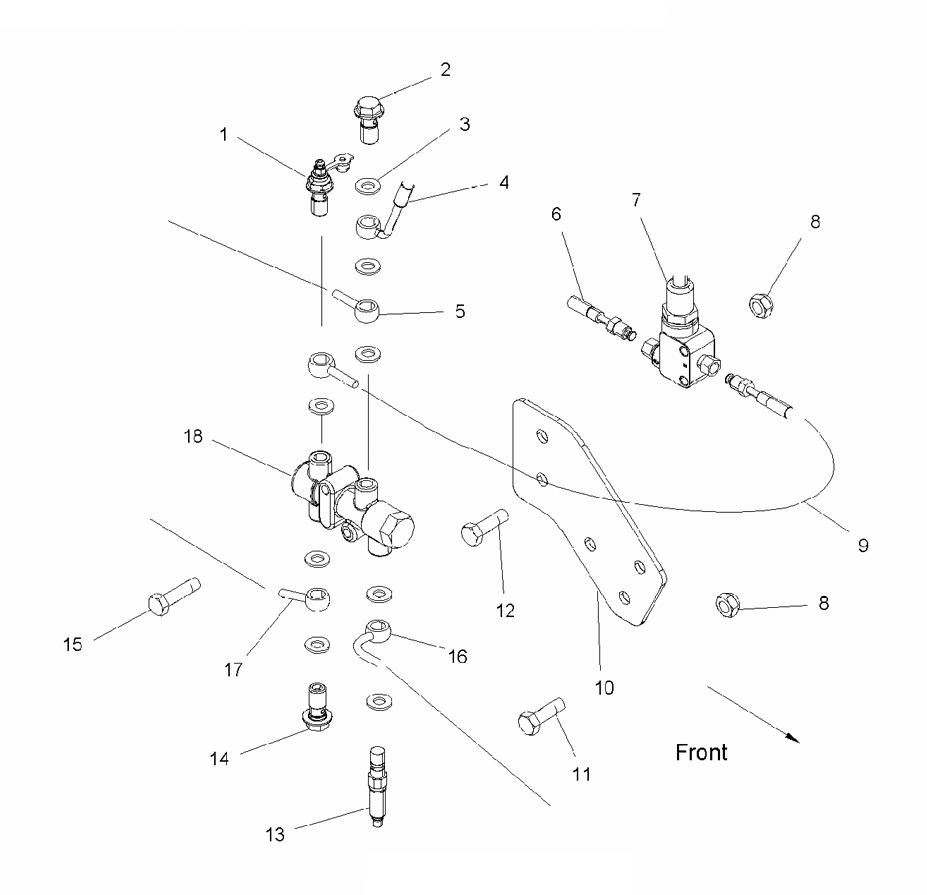

BRAKE - VALVE SYSTEM для Polaris SPORTSMAN 500 EFI INT (A07MH50FC) - 2007 года выпуска
-
№АртикулНазвание
-
11911112 BOLT-BANJO 10MM X 1.25 W/BLEEDERBOLT-BANJO 10MM X 1.25 W/BLEEDER
-
21911194 BOLT-DOUBLE BANJO, M10X1.25BOLT-DOUBLE BANJO, M10X1.25
-
35413212 SEAL-STAT-O-3/8, 70EPSEAL-STAT-O-3/8, 70EP
-
41911103 LINE-BRAKE,HAND TO J/BLINE-BRAKE,HAND TO J/B
-
51911139 LINE-BRAKE, REAR, AUX, 500 INT'LLINE-BRAKE, REAR, AUX, 500 INT'L
-
61911138 LINE-BRAKE, REAR, SERVICE, 500INTLINE-BRAKE, REAR, SERVICE, 500INT
-
71911109 VALVE-REDUCING, BRAKEVALVE-REDUCING, BRAKE
-
87542122 NUT-NYLOKNUT-NYLOK
-
91911200 LINE-BRAKE, J/B TO P/VALVE, NPTLINE-BRAKE, J/B TO P/VALVE, NPT
-
105250532-067 PLATE-BRAKE VALVE, BLACKPLATE-BRAKE VALVE, BLACK
-
117512241 HEX-BOLTHEX-BOLT
-
127512130 BOLTBOLT
-
134011478 SWITCH-PRESSURE, BRAKE, M10X1.25SWITCH-PRESSURE, BRAKE, M10X1.25
-
141910799 BOLT WITH HOLEBOLT WITH HOLE
-
157517451 BOLTBOLT
-
161911183 LINE-BRAKE, FRONT 500 INTLLINE-BRAKE, FRONT 500 INTL
-
171911137 LINE-BRAKE, FOOT TO J/B, 500INTLLINE-BRAKE, FOOT TO J/B, 500INTL
-
181911185 BLOCK-DIST,BRAKE,LONG PISTONBLOCK-DIST,BRAKE,LONG PISTON
