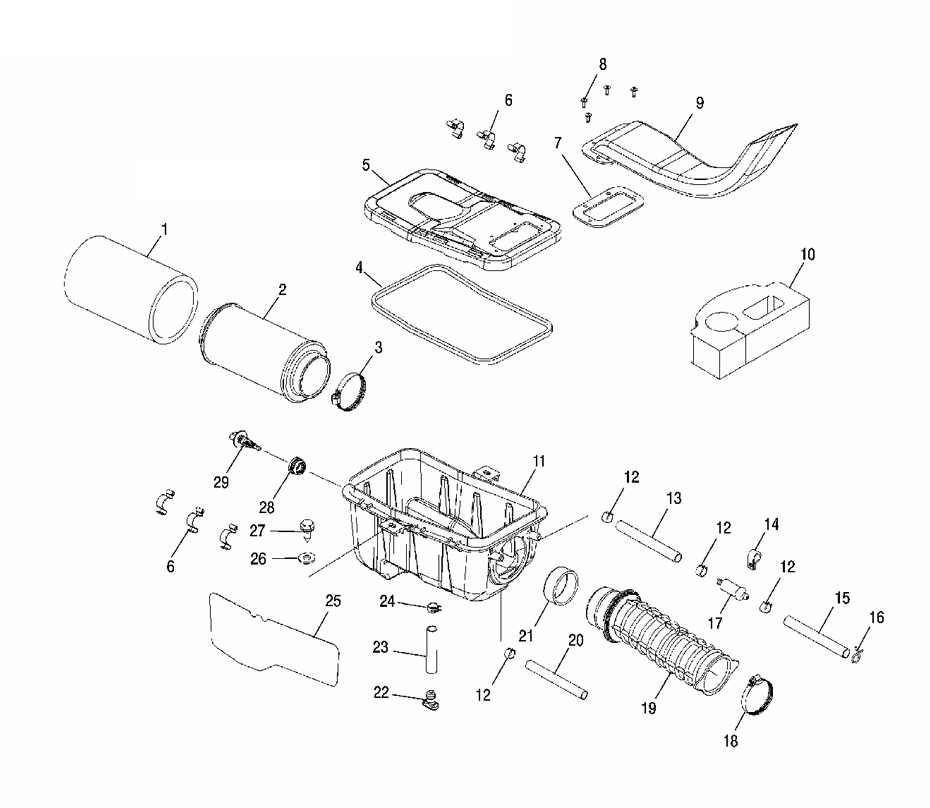

AIR BOX ASSY. для Polaris SPORTSMAN 500 EFI INT (A07MH50FC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5811633 FILTER, PRECLEAN, SLEEVE
    FILTER, PRECLEAN, SLEEVE
  • 2
    7080595 FILTER, AIR
    FILTER, AIR
  • 3
    7080413 CLAMP, BAND, NARROW
    CLAMP, BAND, NARROW
  • 4
    5812829 SEAL-AIRBOX COVER [IF BUILT BEFORE 4/02/07]
    SEAL-AIRBOX COVER [IF BUILT BEFORE 4/02/07]
  • 4
    5812829 SEAL-AIRBOX COVER [IF BUILT AFTER 4/02/07]
    SEAL-AIRBOX COVER [IF BUILT AFTER 4/02/07]
  • 5
    5432868 COVER, AIRBOX- [IF BUILT BEFORE 8/21/06]
    COVER, AIRBOX- [IF BUILT BEFORE 8/21/06]
  • 5
    1203567 COVER, AIRBOX- [IF BUILT AFTER 8/21/06]
    COVER, AIRBOX- [IF BUILT AFTER 8/21/06]
  • 6
    5242044 CLIP
    CLIP
  • 7
    5411422 GASKET, INTAKE
    GASKET, INTAKE
  • 8
    7517317 SCREW
    SCREW
  • 9
    5436937 DUCT-AIR INLET
    DUCT-AIR INLET
  • 10
    5811626 SEAL, FOAM
    SEAL, FOAM
  • 11
    5436454 BOX-AIR INTAKE, 4-STROKE,EFI
    BOX-AIR INTAKE, 4-STROKE,EFI
  • 12
    7080699 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    8450073-600 LINE, BREATHER, 3/8 ID.
    LINE, BREATHER, 3/8 ID.
  • 14
    7080913 CLAMP-P, STL,1'' BDL DIA-B
    CLAMP-P, STL,1'' BDL DIA-B
  • 15
    5413104 HOSE-BREATHER, FORMED
    HOSE-BREATHER, FORMED
  • 16
    7080694 CLAMP, HOSE,SPRING
    CLAMP, HOSE,SPRING
  • 17
    2530029 FILTER, BREATHER, IN LINE
    FILTER, BREATHER, IN LINE
  • 18
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 19
    5412962 BOOT-T-BODY, 39MM
    BOOT-T-BODY, 39MM
  • 20
    5413003 BREATHER-LINE-115 CM, SLIT
    BREATHER-LINE-115 CM, SLIT
  • 21
    5433847 SLEEVE-CARB, INNER
    SLEEVE-CARB, INNER
  • 22
    5432377 PLUG, TRAP [IF BUILT BEFORE 9/04/06]
    PLUG, TRAP [IF BUILT BEFORE 9/04/06]
  • 22
    5435299 PLUG-TRAP [IF BUILT AFTER 9/04/06]
    PLUG-TRAP [IF BUILT AFTER 9/04/06]
  • 23
    8450059-150 FUEL LINE
    FUEL LINE
  • 24
    7080650 CLAMP, HOSE
    CLAMP, HOSE
  • 25
    5813042 FOIL-AIRBOX, 10.75 X 5.60
    FOIL-AIRBOX, 10.75 X 5.60
  • 26
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 27
    7515179 SCREW
    SCREW
  • 28
    5436346 GROMMET-AIR TEMP SENSOR
    GROMMET-AIR TEMP SENSOR
  • 29
    2410687 SENSOR-AIR TEMP
    SENSOR-AIR TEMP
