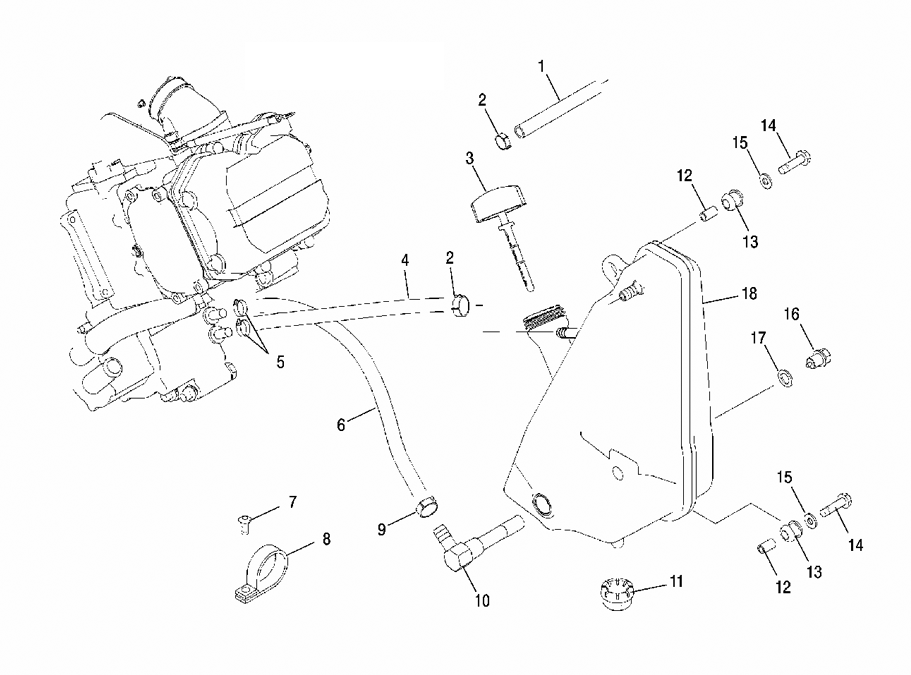

OIL TANK для Polaris SPORTSMAN 500 EFI INT (A07MH50FC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5413003 BREATHER-LINE-115 CM, SLIT
    BREATHER-LINE-115 CM, SLIT
  • 2
    7080699 CLAMP, HOSE
    CLAMP, HOSE
  • 3
    5434574 DIPSTICK-OIL TANK
    DIPSTICK-OIL TANK
  • 4
    8450073-600 LINE, BREATHER, 3/8 ID.
    LINE, BREATHER, 3/8 ID.
  • 5
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    8450096-100 LINE-FUEL GOODYEAR,1/2''SAE 30R7
    LINE-FUEL GOODYEAR,1/2''SAE 30R7
  • 7
    7512024 SCREW
    SCREW
  • 8
    7080693 CLAMP, HOSE, NYLON
    CLAMP, HOSE, NYLON
  • 9
    7081026 CLAMP-HOSE, SPRING .81
    CLAMP-HOSE, SPRING .81
  • 10
    7052326 SCREEN-OIL FILTER, 90°
    SCREEN-OIL FILTER, 90°
  • 11
    5412507 GROMMET
    GROMMET
  • 12
    5333204 BUSHING, MTG.
    BUSHING, MTG.
  • 13
    5410828 GROMMET, MTG, RESERVOIR
    GROMMET, MTG, RESERVOIR
  • 14
    7512242 SCREW
    SCREW
  • 15
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 16
    7051524 PLUG
    PLUG
  • 17
    5850135 WASHER
    WASHER
  • 18
    1261653 WELDMENT-OIL TANK
    WELDMENT-OIL TANK
