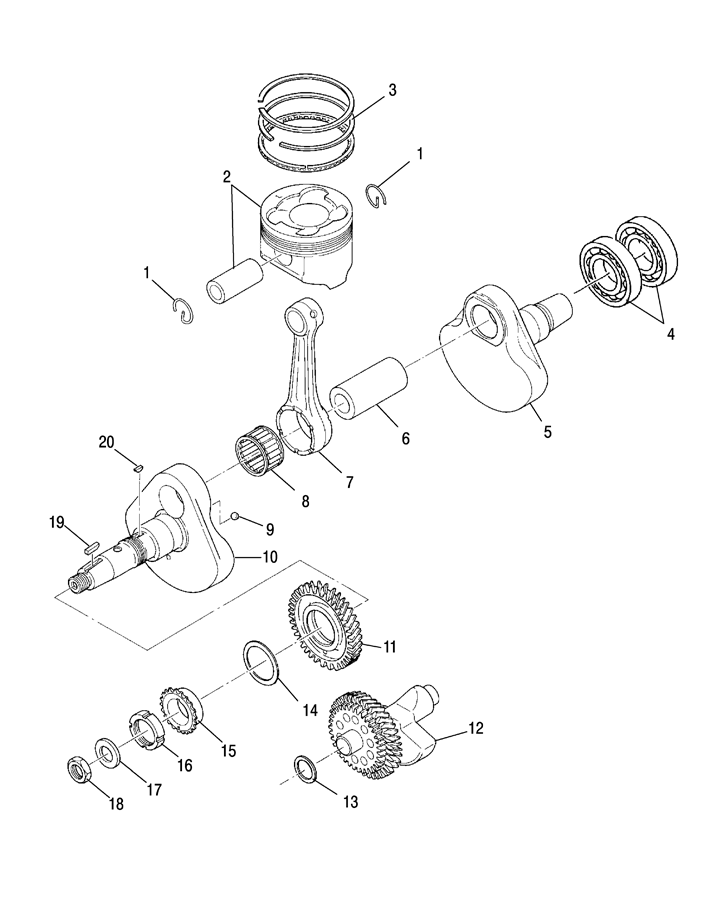

CRANKSHAFT W/ PISTON для Polaris SCRAMBLER 500 2X4 (A07BA50FA) (INDY RED) - 2007 года выпуска`
-
№АртикулНазвание
-
13085534 CLIPCLIP
-
23087221 SET, PISTON, STANDARD (INCL. 1)SET, PISTON, STANDARD (INCL. 1)
-
23087222 SET, PISTON, .010''/.25MM O/S (INCL. 1)SET, PISTON, .010''/.25MM O/S (INCL. 1)
-
23087223 SET, PISTON, .020''/.50MM O/S (INCL. 1)SET, PISTON, .020''/.50MM O/S (INCL. 1)
-
33087224 SET, PISTON, RING, STANDARDSET, PISTON, RING, STANDARD
-
33087225 SET, PISTON, RING, .010''/.25MM O/SSET, PISTON, RING, .010''/.25MM O/S
-
33087226 SET, PISTON, RING, .020''/.50MM O/SSET, PISTON, RING, .020''/.50MM O/S
-
43085815 BEARING, BALLBEARING, BALL
-
53085812 CRANKSHAFT, #2CRANKSHAFT, #2
-
63087090 PIN-CRANKPIN-CRANK
-
73085813 ROD, CONNECTINGROD, CONNECTING
-
83085343 BEARING, LARGE ENDBEARING, LARGE END
-
93085024 BALL, STEEL (INCL. 4-11)BALL, STEEL (INCL. 4-11)
-
103089570 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
103089678 CRANKSHAFT 1CRANKSHAFT 1
-
113089245 BALANCE GEAR 1BALANCE GEAR 1
-
123089773 SHAFT, BALANCER, COMPL.SHAFT, BALANCER, COMPL.
-
133084895 SPACER, 0.8SPACER, 0.8
-
133084896 SPACER, 1.0SPACER, 1.0
-
133084897 SPACER, 1.2SPACER, 1.2
-
143240088 SPACER, 0.6SPACER, 0.6
-
143084892 SPACER, 0.8SPACER, 0.8
-
143084893 SPACER, 1.0SPACER, 1.0
-
143084894 SPACER, 1.2SPACER, 1.2
-
153084882 SPROCKET 1SPROCKET 1
-
163085528 NUT, SLITNUT, SLIT
-
173086767 WASHERWASHER
-
183083905 NUT, LOCKNUT, LOCK
-
193081447 KEYKEY
-
203240168 KEY, WOODRUFFKEY, WOODRUFF
