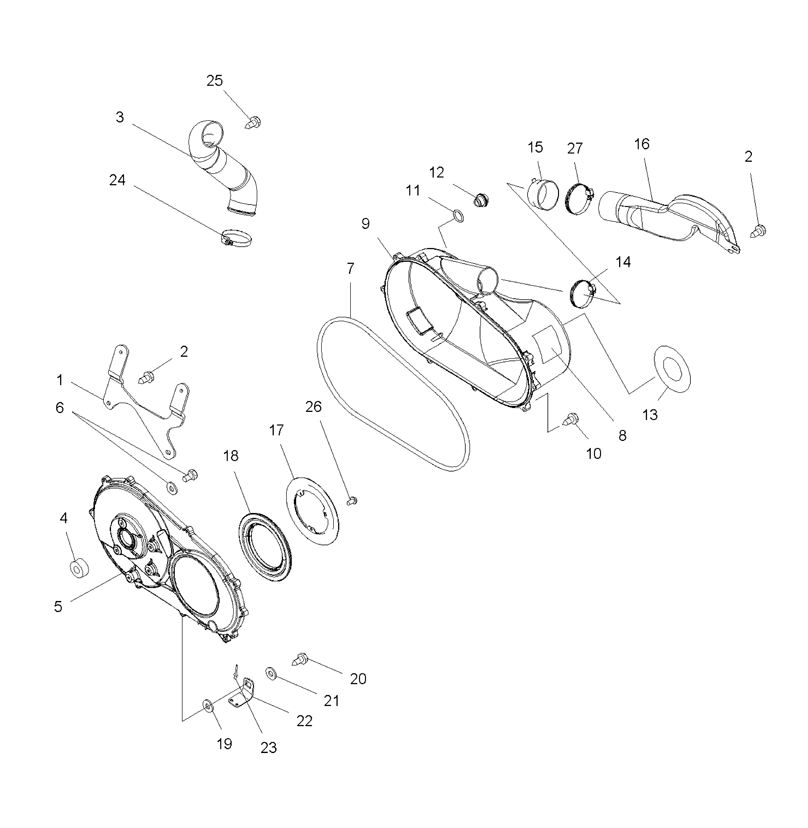

CLUTCH COVER для Polaris SCRAMBLER 500 2X4 (A07BA50FA) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
15247524-067 BRACKET CLUTCH COVER (BLACK)BRACKET CLUTCH COVER (BLACK)
-
27517386 SCREWSCREW
-
35436940 DUCT, CLUTCH AIR INLETDUCT, CLUTCH AIR INLET
-
45411553 SEAL, CVR, INNERSEAL, CVR, INNER
-
52201957 COULD NOT FINDCOULD NOT FIND
-
67510000 BOLT/WASHER ASSY, 1.125BOLT/WASHER ASSY, 1.125
-
75521738 SEAL-OUTER CLUTCH COVERSEAL-OUTER CLUTCH COVER
-
87172563 COULD NOT FINDCOULD NOT FIND
-
95434255-070 COVER-CLUTCH OUTER, HV (BLACK)COVER-CLUTCH OUTER, HV (BLACK)
-
107512094 SCREW *SCREW *
-
115410542 O-RINGO-RING
-
125434264 PLUG-DRAINPLUG-DRAIN
-
137172746 DECAL-AUTOMATIC TRANSMISSIONDECAL-AUTOMATIC TRANSMISSION
-
147080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
155412636 BOOT-DUCT, HI-FLOWBOOT-DUCT, HI-FLOW
-
165434160 DUCT-CLUTCH, OUT, HI-FLOW, 13.6DUCT-CLUTCH, OUT, HI-FLOW, 13.6
-
175242046 BRKT-CLUTCH SEALBRKT-CLUTCH SEAL
-
185412637 SEAL-COVER CASE, ENGINESEAL-COVER CASE, ENGINE
-
197555932 WASHER, NYLONWASHER, NYLON
-
207512098 SCREWSCREW
-
217555935 WASHERWASHER
-
225247949 BRKT-CLUTCH COVER, FRT, PLTDBRKT-CLUTCH COVER, FRT, PLTD
-
237661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
247080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
257517916 SCREWSCREW
-
263084205 ASSY., SCREW AND WASHERASSY., SCREW AND WASHER
-
277081279 CLAMP-BAND, NARROW 70-90MMCLAMP-BAND, NARROW 70-90MM
