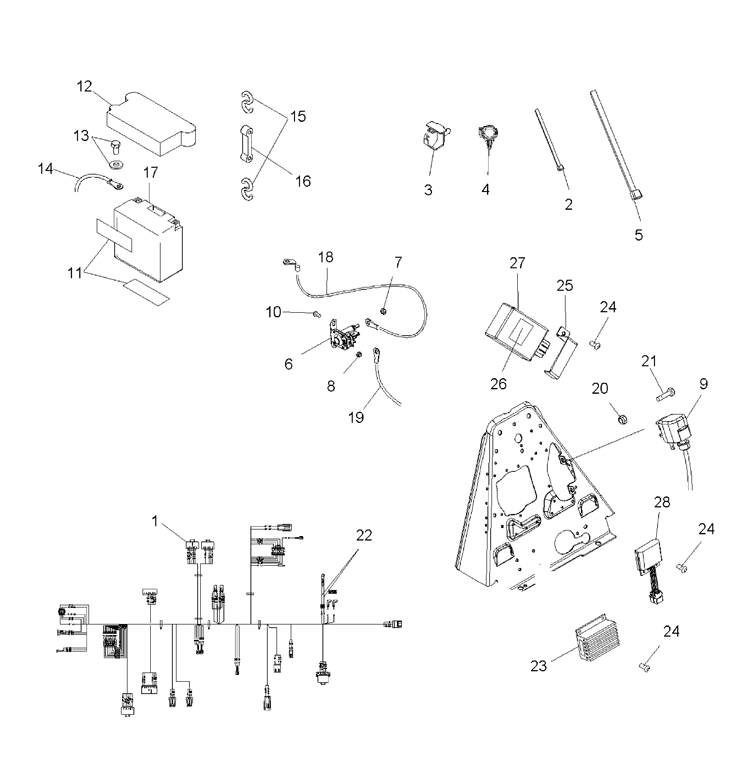

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris SCRAMBLER 500 2X4 (A07BA50FA) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
12410884 HARNESS-MAINHARNESS-MAIN
-
27080138 CABLE TIECABLE TIE
-
37670109 CLIP-ROUTINGCLIP-ROUTING
-
44020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
57080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
-
64010947 SOLENOID-STARTER-C1100SOLENOID-STARTER-C1100
-
77547270 NUT-HXFLGHD, M6, SERRATEDNUT-HXFLGHD, M6, SERRATED
-
87518287 NUT-#10-24 NYLOK INSERTNUT-#10-24 NYLOK INSERT
-
93089260 ASSY-IGNITION COILASSY-IGNITION COIL
-
107512027 SCREWSCREW
-
115810290 PAD, BATTERYPAD, BATTERY
-
125431769 COVER, BATTERYCOVER, BATTERY
-
132200361 KIT-BATTERY BOLT (SHORT)KIT-BATTERY BOLT (SHORT)
-
144010095 CABLE, BATTERY/ENGINE (BLACK)CABLE, BATTERY/ENGINE (BLACK)
-
157010032 HOOK-BATTERY STRAPHOOK-BATTERY STRAP
-
165412499 STRAP-BATTERY HOLD DOWN-CSTRAP-BATTERY HOLD DOWN-C
-
174140006 BATTERYBATTERY
-
175432077 TUBE, VENTTUBE, VENT
-
184010094 CABLE, BATT/SOLENOID (RED)CABLE, BATT/SOLENOID (RED)
-
194010093 CABLE, SOL/STARTERCABLE, SOL/STARTER
-
207541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
217512007 BOLTBOLT
-
222202147 KIT-FUSIBLE LINKKIT-FUSIBLE LINK
-
234011700 CONTROLLER MODULE-FAN, CIR, REGCONTROLLER MODULE-FAN, CIR, REG
-
247512024 SCREWSCREW
-
255246747 BRKT-CDI, DIGITAL, LONGBRKT-CDI, DIGITAL, LONG
-
265810317 PAD, BULK FUELPAD, BULK FUEL
-
273089238 CDI SYSTEMCDI SYSTEM
-
284010994 LIMITER-RPM, HUB GROUND, W/CONLIMITER-RPM, HUB GROUND, W/CON
