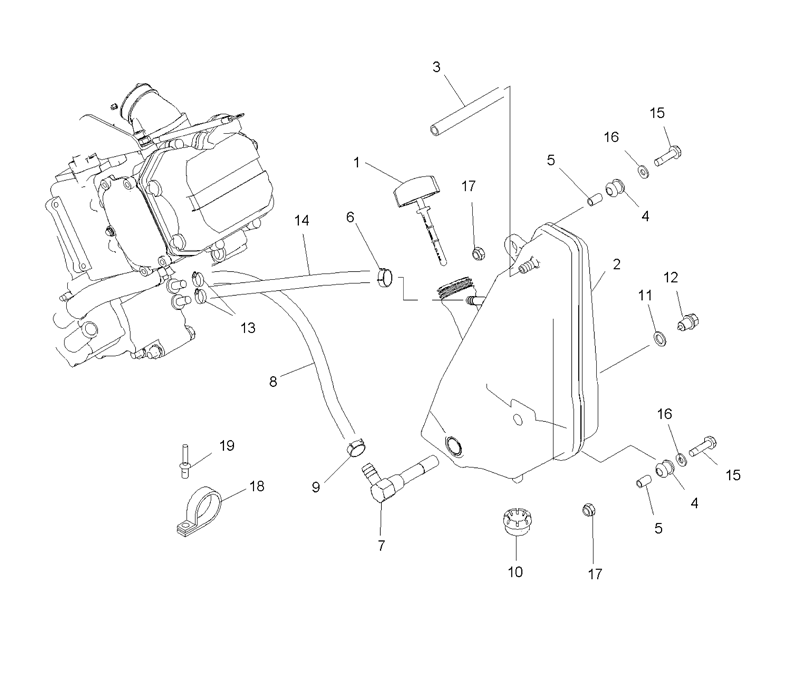

OIL TANK для Polaris SCRAMBLER 500 2X4 (A07BA50FA) (INDY RED) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5434307 DIPSTICK
    DIPSTICK
  • 2
    1261654 WELDMENT-OIL TANK
    WELDMENT-OIL TANK
  • 3
    5411873 HOSE, BREATHER, SLIT, 63CM, 3/8I.D
    HOSE, BREATHER, SLIT, 63CM, 3/8I.D
  • 4
    5410828 GROMMET, MOUNTING, RESERVOIR
    GROMMET, MOUNTING, RESERVOIR
  • 5
    5333204 BUSHING, MOUNTING
    BUSHING, MOUNTING
  • 6
    7080699 CLAMP, HOSE
    CLAMP, HOSE
  • 7
    7052326 SCREEN-OIL FILTER, 90°
    SCREEN-OIL FILTER, 90°
  • 8
    5412227 HOSE-FORMED, 1/2''ID
    HOSE-FORMED, 1/2''ID
  • 9
    7081026 CLAMP-HOSE, SPRING .81
    CLAMP-HOSE, SPRING .81
  • 10
    5412507 GROMMET
    GROMMET
  • 11
    5850135 WASHER
    WASHER
  • 12
    7051524 PLUG
    PLUG
  • 13
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    8450073-600 LINE, BREATHER, 3/8 ID.
    LINE, BREATHER, 3/8 ID.
  • 15
    7512130 BOLT
    BOLT
  • 16
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 17
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 18
    7080880 CLAMP-HOSE, .625 DIA VNL COATED
    CLAMP-HOSE, .625 DIA VNL COATED
  • 19
    7621432 RIVET, 3/16X.402
    RIVET, 3/16X.402
