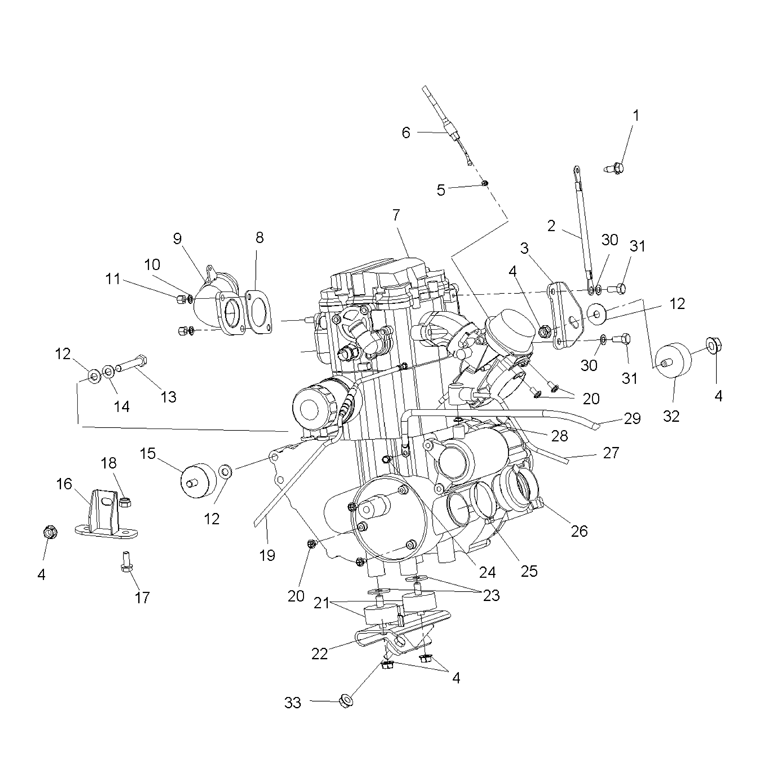

ENGINE - MOUNTING для Polaris SCRAMBLER 500 2X4 (A07BA50FA) (INDY RED) - 2007 года выпуска
‹-+›
-
№АртикулНазвание
-
17517386 SCREWSCREW
-
24010132 CABLE, GND-ENGINECABLE, GND-ENGINE
-
35242674 BRACKET, ENGINE MOUNT, TOP (BLACK)BRACKET, ENGINE MOUNT, TOP (BLACK)
-
47547108 NUTNUT
-
53084696 GUIDE, CABLEGUIDE, CABLE
-
67081170 CABLE-THROTTLE, 1/4 TURN, 4 STKCABLE-THROTTLE, 1/4 TURN, 4 STK
-
73089962 ENGINE-SB, EH500PLE126 (SEE NOTE)ENGINE-SB, EH500PLE126 (SEE NOTE)
-
83085075 ASSY., GASKET(EXHAUST)ASSY., GASKET(EXHAUST)
-
91261391-029 MANIFOLD, BLACKMANIFOLD, BLACK
-
103080051 WASGERWASGER
-
113087199 NUTNUT
-
127555823 WASHERWASHER
-
137515417 SCREWSCREW
-
147552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
153110067 MOUNT, MOTORMOUNT, MOTOR
-
161040688-067 MOUNT, FRONT ENGINE (BLACK)MOUNT, FRONT ENGINE (BLACK)
-
177515398 SCREWSCREW
-
187542324 NUT, NYLOKNUT, NYLOK
-
197081177 CABLE-CHOKE, FRICTION, 26''CABLE-CHOKE, FRICTION, 26''
-
203084205 ASSY., SCREW AND WASHERASSY., SCREW AND WASHER
-
213110046 MOUTN, RUBBER (FRONT)MOUTN, RUBBER (FRONT)
-
221013222-067 MOUNT, ENGINE, REAR, 500 (BLACK)MOUNT, ENGINE, REAR, 500 (BLACK)
-
237555815 WASHER, FLATWASHER, FLAT
-
243082038 BOLTANDWASHER ASSYBOLTANDWASHER ASSY
-
257080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
265412487 BOOT-CLUTCH, INTAKEBOOT-CLUTCH, INTAKE
-
274010093 CABLE, SOL/STARTERCABLE, SOL/STARTER
-
283083649 NUT, FLANGENUT, FLANGE
-
294010095 CABLE, BATTERY/ENGINE (BLACK)CABLE, BATTERY/ENGINE (BLACK)
-
307552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
317512315 BOLTBOLT
-
323110044 ISOLATOR-3/8-24M/M, 60DUROISOLATOR-3/8-24M/M, 60DURO
-
337547089 NUT, FLANGENUT, FLANGE
