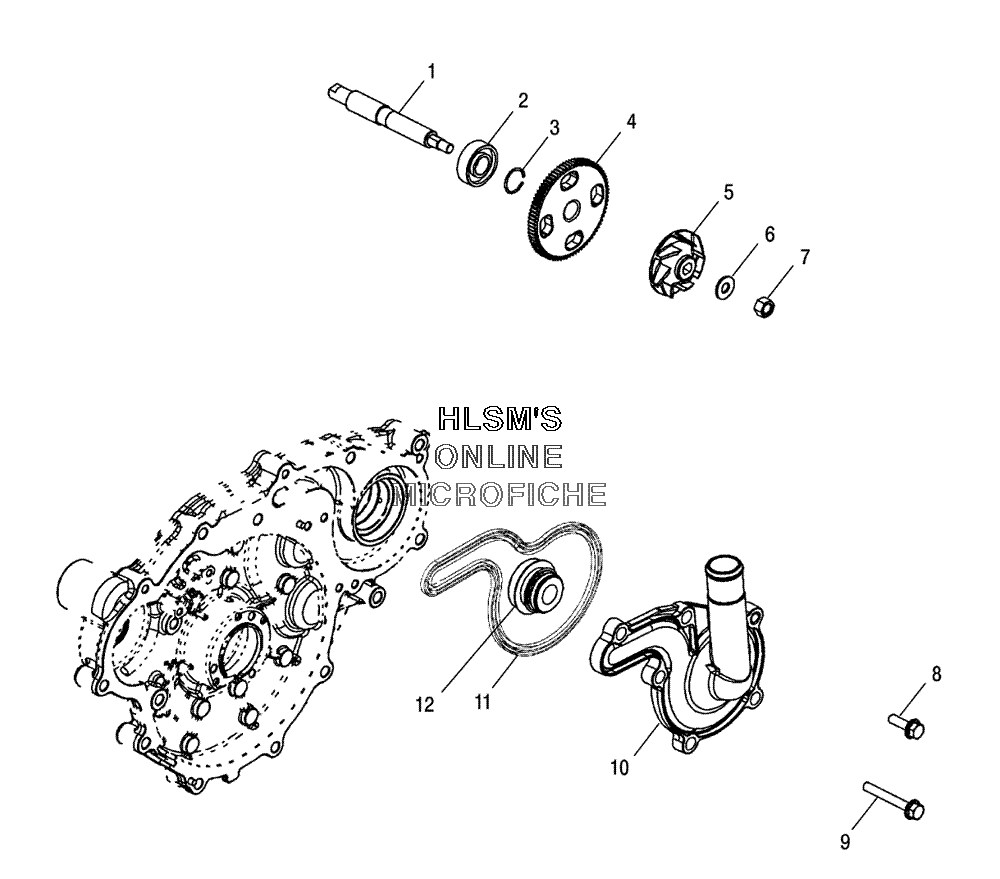

WATER PUMP для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
15133948 SHAFT OIL/WATER PUMPSHAFT OIL/WATER PUMP
-
23584404 BEARING, BALLBEARING, BALL
-
37710531 RING RETAININGRING RETAINING
-
55433684 IMPELLER WATER PUMPIMPELLER WATER PUMP
-
67555874 WASHER FLATWASHER FLAT
-
77546804 NUT HEXAGON NYLOKNUT HEXAGON NYLOK
-
87516822 SCREWSCREW
-
97517950 SCREW HEXAGON FLANGESCREW HEXAGON FLANGE
-
105631389 WATER PUMP KITWATER PUMP KIT
-
115812571 SEAL WATERPUMPSEAL WATERPUMP
-
123610075 WATER PUMP, SEALWATER PUMP, SEAL
