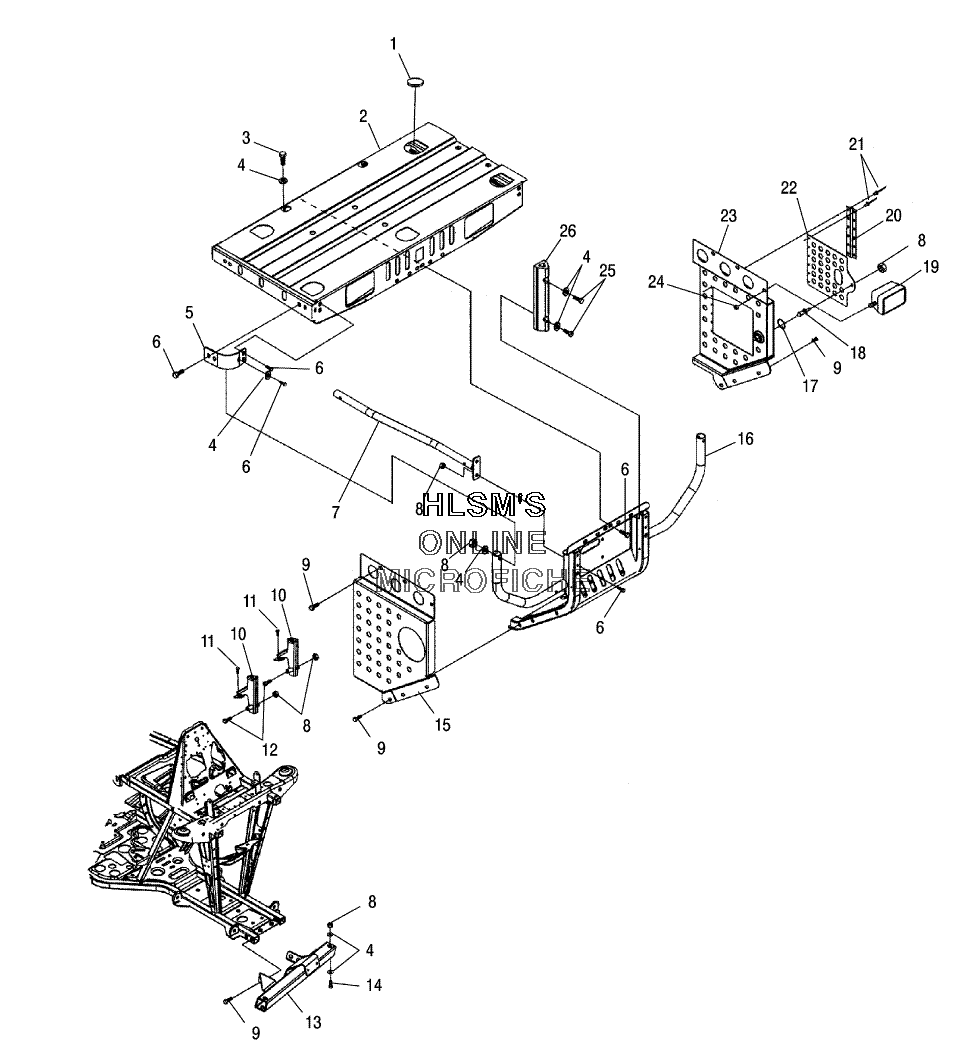

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
15812047 PAD SHAFT (REAR)PAD SHAFT (REAR)
-
21014839-463 WELD PLATFORM, FLAT (FRONT/BLACK)WELD PLATFORM, FLAT (FRONT/BLACK)
-
37515384 BOLTBOLT
-
47555960 WASHER, FLATWASHER, FLAT
-
55248445-418 BRACKET CORNER SUPPORT (BLACK)BRACKET CORNER SUPPORT (BLACK)
-
67518436 SCREWSCREW
-
71014919-067 BRUSHGUARD (FRONT/LEFT/BLACK)BRUSHGUARD (FRONT/LEFT/BLACK)
-
71014920-067 BRUSHGUARD (FRONT/RIGHT/BLACK)BRUSHGUARD (FRONT/RIGHT/BLACK)
-
87542324 NUT NYLOKNUT NYLOK
-
97515399 SCREWSCREW
-
101014917-067 RACK SUPPORT (FRONT/LEFT/BLACK)RACK SUPPORT (FRONT/LEFT/BLACK)
-
101014918-067 RACK SUPPORT (FRONT/RIGHT/BLACK)RACK SUPPORT (FRONT/RIGHT/BLACK)
-
117518340 BOLT HEXAGON FLANGEBOLT HEXAGON FLANGE
-
127518213 SCREWSCREW
-
131014364-067 WELD MOUNT, BRUSHGUARD (FRONT/BLACK)WELD MOUNT, BRUSHGUARD (FRONT/BLACK)
-
147515339 BOLTBOLT
-
155248630-418 PLATE VENT MOUNT (RIGHT/BLACK)PLATE VENT MOUNT (RIGHT/BLACK)
-
161014841-418 BRUSHGUARD (FRONT/BLACK)BRUSHGUARD (FRONT/BLACK)
-
175412507 GROMMETGROMMET
-
185910096 PIN SEAT LATCHPIN SEAT LATCH
-
192431014 HEADLIGHT, SIDE MOUNT ASSY (LEFT) (INCL. 24)HEADLIGHT, SIDE MOUNT ASSY (LEFT) (INCL. 24)
-
192431015 HEADLIGHT, SIDE MOUNT ASSY (RIGHT) (INCL. 24)HEADLIGHT, SIDE MOUNT ASSY (RIGHT) (INCL. 24)
-
207020024-468 HINGE INSTRUMENT PANELHINGE INSTRUMENT PANEL
-
217621432 RIVETRIVET
-
225248631-418 PLATE VENT DOOR (BLACK)PLATE VENT DOOR (BLACK)
-
235248629-418 PLATE VENT MOUNT (LEFT/BLACK)PLATE VENT MOUNT (LEFT/BLACK)
-
247542343 NUT FLANGENUT FLANGE
-
257517208 SCREWSCREW
-
265412446 BUMPER, EXTRUDED SHORTBUMPER, EXTRUDED SHORT
