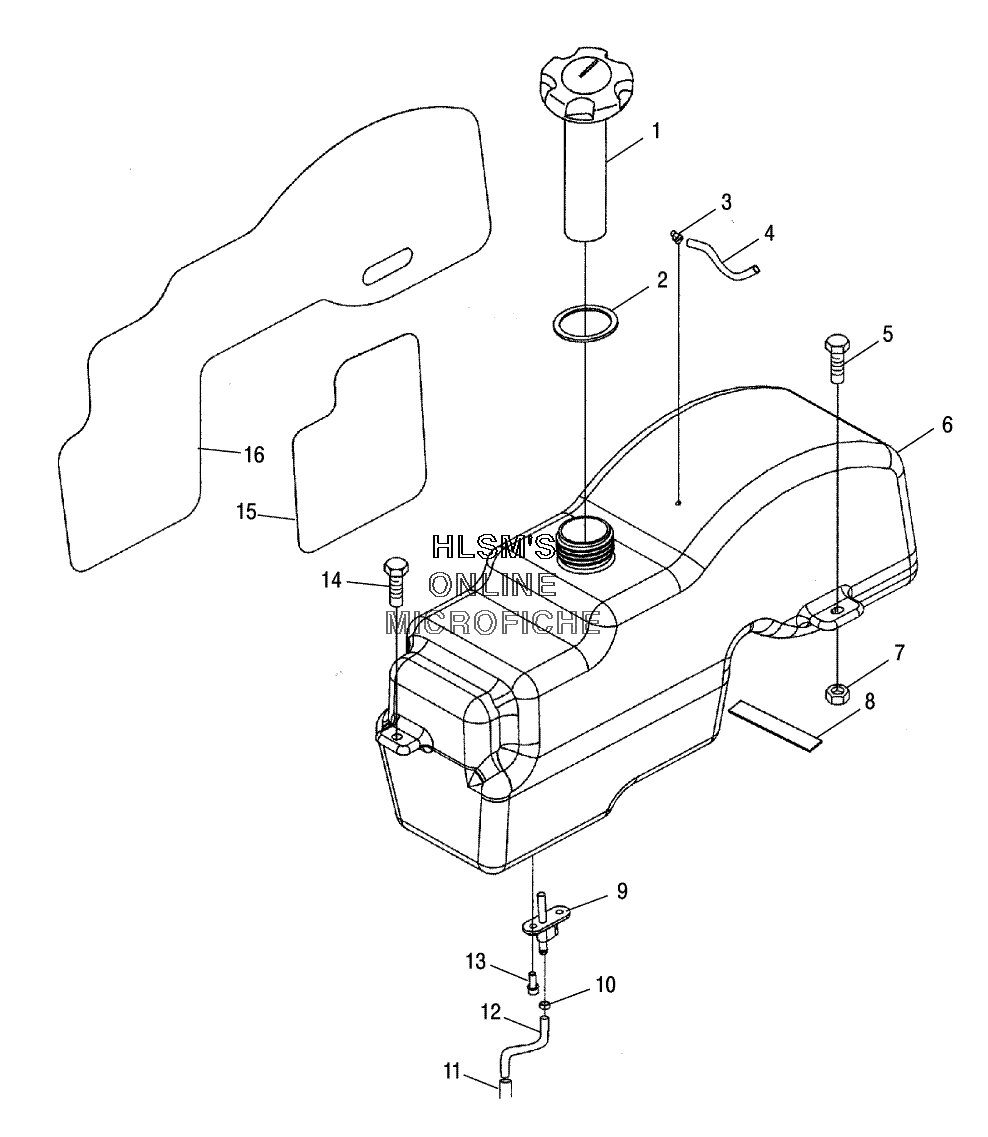

FUEL TANK W/ RESERVE для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
12873626 GAUGE FUEL KITGAUGE FUEL KIT
-
25812123 GASKETGASKET
-
35431053 VENT TANKVENT TANK
-
48450061-600 LINE FUELLINE FUEL
-
57515307 BOLTBOLT
-
62520458 FUEL TANK RESERVE CMV ASSY (INCL. 3, 9, 15, 16)FUEL TANK RESERVE CMV ASSY (INCL. 3, 9, 15, 16)
-
77542343 NUT FLANGENUT FLANGE
-
85810290 PAD, BATTERYPAD, BATTERY
-
97052363 FITTING FUEL SINGLE OUTLETFITTING FUEL SINGLE OUTLET
-
107080003 CLAMP, HOSECLAMP, HOSE
-
118360031-145 CONDUIT (145 CM)CONDUIT (145 CM)
-
128450103 LINE, FUEL (1/4" DP SAE)LINE, FUEL (1/4" DP SAE)
-
137515136 SCREWSCREW
-
147517230 SCREWSCREW
-
155812515 FOIL GAS TANKFOIL GAS TANK
-
165812750 FOIL, GAS TANK RESFOIL, GAS TANK RES
