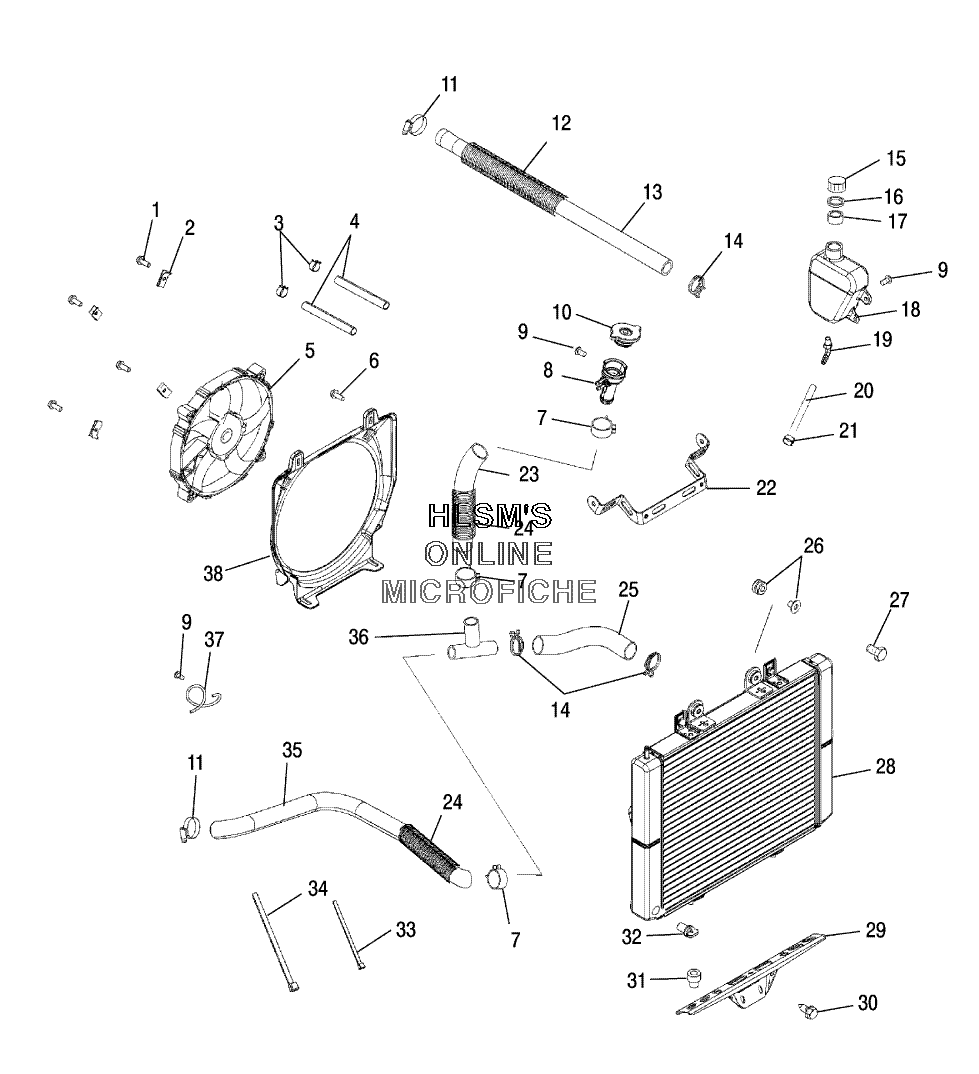

COOLING SYSTEM для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
17517975 BOLT HEXAGON HEADBOLT HEXAGON HEAD
-
27547197 CLIP "U"CLIP "U"
-
37080003 CLAMP HOSECLAMP HOSE
-
48450040 LINE, FUELLINE, FUEL
-
52410413 FAN 11" ASSEMBLY, PKRDFAN 11" ASSEMBLY, PKRD
-
67547220 SCR WITH WASHERSCR WITH WASHER
-
77081047 CLAMP ROT SPRING (31.5 MM)CLAMP ROT SPRING (31.5 MM)
-
85435196 FILLER NECK, REMOTE COOLANTFILLER NECK, REMOTE COOLANT
-
97512084 SCREWSCREW
-
101240044 CAP PRESSURECAP PRESSURE
-
117081174 CLAMP HOSECLAMP HOSE
-
125521597 GUARD HOSEGUARD HOSE
-
135412391 HOSE ENGINE (UPPER)HOSE ENGINE (UPPER)
-
147080826 CLAMP ROTO CLIPCLAMP ROTO CLIP
-
155430743 CAP OVERFLOWCAP OVERFLOW
-
165810279 GASKETGASKET
-
175433774 CAP, PLUG 9X FLEX TEMP (GREEN)CAP, PLUG 9X FLEX TEMP (GREEN)
-
185431673 TANK, SURGETANK, SURGE
-
197052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
208450003-1525 LINE, FUEL (1/4 ID, 1525 CM.)LINE, FUEL (1/4 ID, 1525 CM.)
-
217080307 CLAMP, HOSECLAMP, HOSE
-
225246656 BRACKET RADIATOR MOUNT (UPPER)BRACKET RADIATOR MOUNT (UPPER)
-
235412311 HOSE FILLER NECKHOSE FILLER NECK
-
245521644 GUARD HOSEGUARD HOSE
-
255412392 HOSE RADIATOR (LOWER)HOSE RADIATOR (LOWER)
-
265411975 GROMMET/INSERT ASSYGROMMET/INSERT ASSY
-
277515179 SCREWSCREW
-
281240190 RADIATOR FITTINGSRADIATOR FITTINGS
-
295245773-067 BRACKET RADIATOR (LOWER/BLACK)BRACKET RADIATOR (LOWER/BLACK)
-
307517386 SCREWSCREW
-
315410584 BUSHING MOUNT RADIATOR (LOWER)BUSHING MOUNT RADIATOR (LOWER)
-
327052296 VALVE PLASTIC DRAINVALVE PLASTIC DRAIN
-
337080138 CABLE TIECABLE TIE
-
347080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
-
355412585 HOSE ENGINE, SHORTER (LOWER)HOSE ENGINE, SHORTER (LOWER)
-
367052342 CONNECTOR TEE, 1INCH BARBEDCONNECTOR TEE, 1INCH BARBED
-
377042089 RETAINER HOSE, WIRE FORMRETAINER HOSE, WIRE FORM
-
385434853 SHROUD, FANSHROUD, FAN
