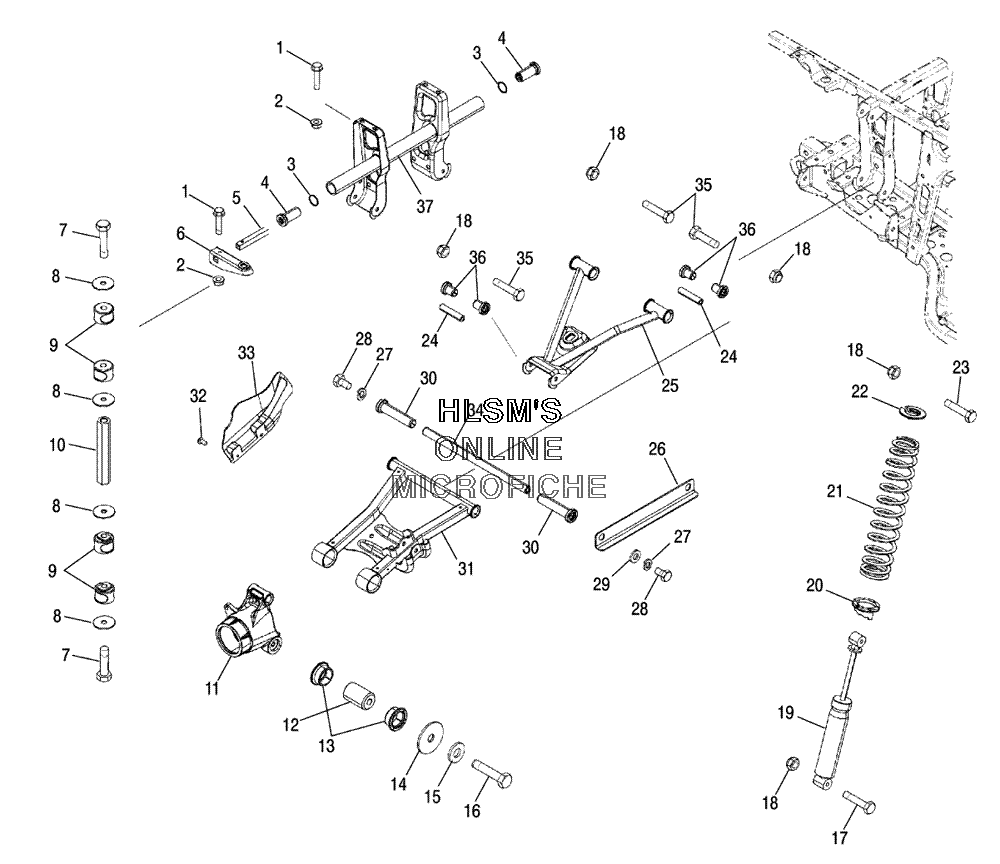

SUSPENSION - REAR для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
17518341 BOLT HEXAGON FLANGEBOLT HEXAGON FLANGE
-
27542324 NUT NYLOKNUT NYLOK
-
37555939 WASHERWASHER
-
45434549 BUSHING STABILIZER TUBE (BLACK)BUSHING STABILIZER TUBE (BLACK)
-
55334114-067 BAR STABILIZER TUBE (BLACK)BAR STABILIZER TUBE (BLACK)
-
61580107-067 ARM, STABILIZER BAR (BLACK)ARM, STABILIZER BAR (BLACK)
-
77517231 SCREWSCREW
-
87555761 WASHERWASHER
-
95432598 BUSHING, STABILIZER LINK (IF BUILT BEFORE 1/01/05)BUSHING, STABILIZER LINK (IF BUILT BEFORE 1/01/05)
-
95435772 BUSHING STABILIZER LINK (IF BUILT AFTER 1/01/05)BUSHING STABILIZER LINK (IF BUILT AFTER 1/01/05)
-
105020827 ROD LINKAGE STABILIZERROD LINKAGE STABILIZER
-
115134206 CARRIER BEARING WHEEL (MACH)CARRIER BEARING WHEEL (MACH)
-
125631142 BUSHING BRNG, CARRIERBUSHING BRNG, CARRIER
-
135434550 BUSHING CONTROL (LOWER/BLACK)BUSHING CONTROL (LOWER/BLACK)
-
147552614 WASHER LOCKWASHER LOCK
-
157555740 WASHERWASHER
-
167517873 BOLTBOLT
-
177515415 SCREWSCREW
-
187542439 NUT, NYLOKNUT, NYLOK
-
197043055 SHOCK (REAR)SHOCK (REAR)
-
205631014 CAM, SPRING ADJUSTCAM, SPRING ADJUST
-
217041880-067 SPRING COMP, 14.2 LARGE (BLACK)SPRING COMP, 14.2 LARGE (BLACK)
-
225630885 RETAINER SPRINGRETAINER SPRING
-
237515433 SCREWSCREW
-
245020826 SHAFT A-ARM SHORTSHAFT A-ARM SHORT
-
251014320-067 WELD CONTROL ARM (UPPER/LEFT/BLACK) (IF BUILT BEFORE 1/01/05)WELD CONTROL ARM (UPPER/LEFT/BLACK) (IF BUILT BEFORE 1/01/05)
-
251014321-067 WELD CONTROL ARM (UPPER/RIGHT/BLACK) (IF BUILT BEFORE 1/01/05)WELD CONTROL ARM (UPPER/RIGHT/BLACK) (IF BUILT BEFORE 1/01/05)
-
251014868-067 CONTROL ARM (UPPER/LEFT/BLACK) (IF BUILT AFTER 1/01/05)CONTROL ARM (UPPER/LEFT/BLACK) (IF BUILT AFTER 1/01/05)
-
251014869-067 CONTROL ARM (UPPER/RIGHT/BLACK) (IF BUILT AFTER 1/01/05)CONTROL ARM (UPPER/RIGHT/BLACK) (IF BUILT AFTER 1/01/05)
-
265245140-067 STRAP (BLACK)STRAP (BLACK)
-
277552603 WASHER SPRING LOCKWASHER SPRING LOCK
-
287512492 SCREWSCREW
-
297555832 WASHERWASHER
-
305434551 BUSHING A-ARM LONG (BLACK)BUSHING A-ARM LONG (BLACK)
-
311015117-067 CONTROL (LOWER/LEFT/BLACK)CONTROL (LOWER/LEFT/BLACK)
-
311015118-067 CONTROL (LOWER/RIGHT/BLACK)CONTROL (LOWER/RIGHT/BLACK)
-
327512084 SCREWSCREW
-
335434890-1038 SHIELD CV (REAR/LEFT/BLACK)SHIELD CV (REAR/LEFT/BLACK)
-
335434891-1038 SHIELD CV (REAR/RIGHT/BLACK)SHIELD CV (REAR/RIGHT/BLACK)
-
345133806 SHAFT A-ARMSHAFT A-ARM
-
357515472 BOLTBOLT
-
365434548 BUSHING A-ARM SHORT (BLACK)BUSHING A-ARM SHORT (BLACK)
-
371541801-067 STABILIZER SUPPORT (BLACK)STABILIZER SUPPORT (BLACK)
