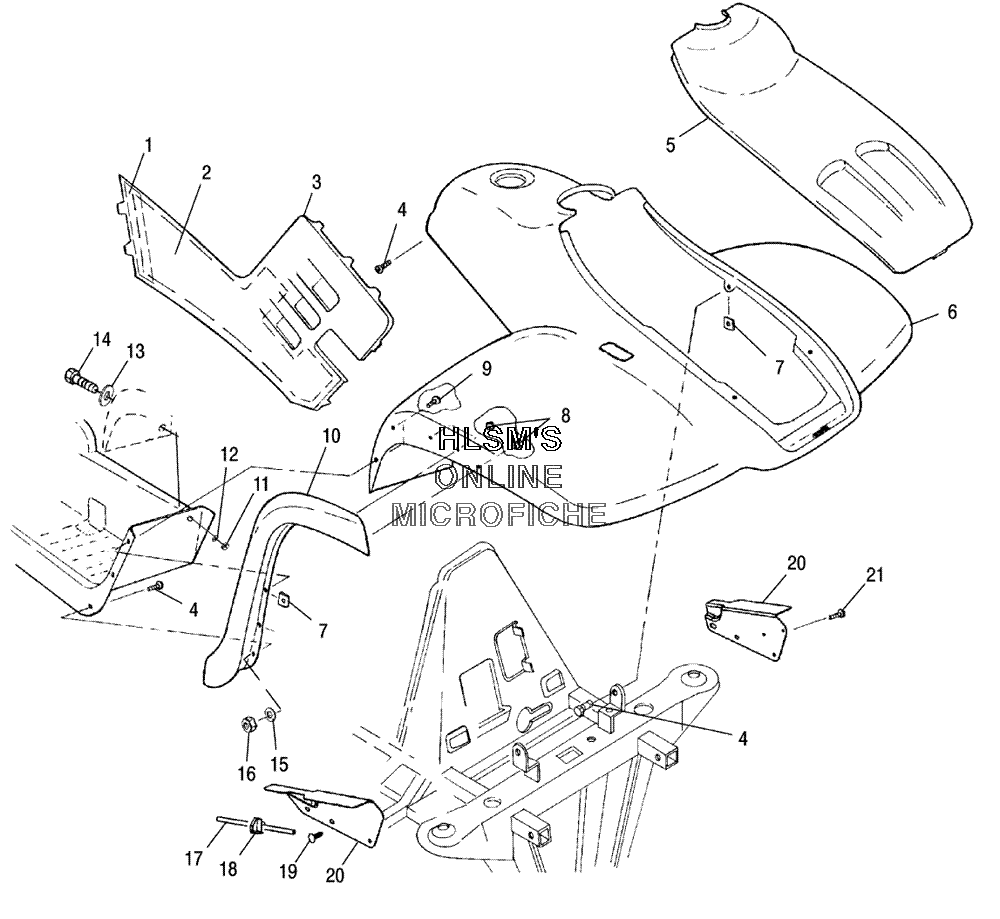

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска`
-
№АртикулНазвание
-
15811491 FOIL (RIGHT)FOIL (RIGHT)
-
25810996 FOIL, FOAMFOIL, FOAM
-
32632663-177 PANEL/FOAM ASSY (LEFT/BLACK METALLIC)PANEL/FOAM ASSY (LEFT/BLACK METALLIC)
-
32632782-177 PANEL/FOAM ASSY (RIGHT/BLACK METALLIC)PANEL/FOAM ASSY (RIGHT/BLACK METALLIC)
-
35812138 FOAM (LEFT)FOAM (LEFT)
-
47512232 BOLTBOLT
-
55435110-400 COVER (FRONT/CAMO GREEN METALLIC)COVER (FRONT/CAMO GREEN METALLIC)
-
62632986-400 CAB ASSY, SVC (FRONT/CAMO GREEN MET) (W/WARNING DECALS)CAB ASSY, SVC (FRONT/CAMO GREEN MET) (W/WARNING DECALS)
-
77670057 NUT, SPEEDNUT, SPEED
-
87670135 NUT SPEED, 3/16NUT SPEED, 3/16
-
97517312 SCREWSCREW
-
105431798-070 GUARD MUDFLAP (FRONT/LEFT/BLACK)GUARD MUDFLAP (FRONT/LEFT/BLACK)
-
105431799-070 GUARD MUDFLAP (FRONT/RIGHT/BLACK)GUARD MUDFLAP (FRONT/RIGHT/BLACK)
-
117541925 NUT, NYLOK 10 24 YNUT, NYLOK 10 24 Y
-
127555792 WASHERWASHER
-
137556034 WASHERWASHER
-
147512085 SCREWSCREW
-
157555931 WASHERWASHER
-
167542122 NUT NYLOKNUT NYLOK
-
175412191 LINE, BREATHER SLIT (85 CM)LINE, BREATHER SLIT (85 CM)
-
187670109 CLIP ROUTINGCLIP ROUTING
-
197621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
205246315-067 GUARD SPLASH (BLACK/LEFT)GUARD SPLASH (BLACK/LEFT)
-
205246316-067 GUARD SPLASH (BLACK/RIGHT)GUARD SPLASH (BLACK/RIGHT)
-
217517685 SCREWSCREW
