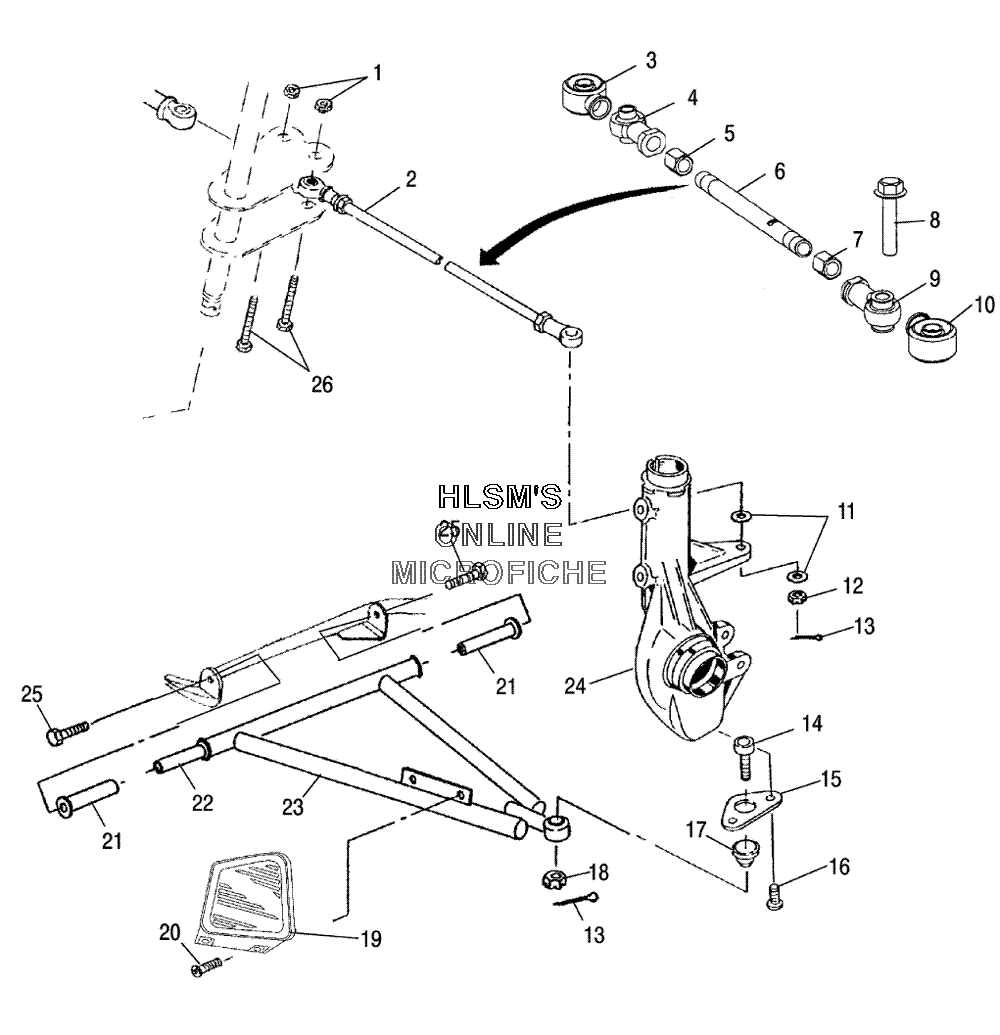

SUSPENSION - FRONT A ARM W/ STRUT MOUNTING для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 2
    1820805 TIE, ROD ASS (1/2 20X13.4) (INCL. 3-9)
    TIE, ROD ASS (1/2 20X13.4) (INCL. 3-9)
  • 3
    5411291 SEAL, BOOT ROD END (1/2 IN)
    SEAL, BOOT ROD END (1/2 IN)
  • 4
    7061034 ROD END (RIGHT)
    ROD END (RIGHT)
  • 5
    7542711 NUT JAM
    NUT JAM
  • 6
    5020926 ROD, TIE
    ROD, TIE
  • 7
    7547028 NUT, JAM (LEFT)
    NUT, JAM (LEFT)
  • 8
    7517909 BOLT, HEXAGON WASHER HD (M10X1.25X65)
    BOLT, HEXAGON WASHER HD (M10X1.25X65)
  • 9
    7061054 ROD, END (10MM) (1/2 20) (LEFT) (42 DEG)
    ROD, END (10MM) (1/2 20) (LEFT) (42 DEG)
  • 10
    5411920 BOOT, SEAL, ROD END (10MM)
    BOOT, SEAL, ROD END (10MM)
  • 11
    7556099 WASHER
    WASHER
  • 12
    7547177 NUT HEXAGON LOCK Y (M10X1.25)
    NUT HEXAGON LOCK Y (M10X1.25)
  • 13
    7661203 PIN, COTTER
    PIN, COTTER
  • 14
    7080673 BALL, JOIN (53 DEG)
    BALL, JOIN (53 DEG)
  • 15
    5211121 BRACKET, BALL JOINT
    BRACKET, BALL JOINT
  • 16
    7512284 BOLT, SOCKET
    BOLT, SOCKET
  • 17
    5410548 BOOT, RUBBER
    BOOT, RUBBER
  • 18
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 19
    5431150-070 SHIELD CV JOINT (LEFT/BLACK)
    SHIELD CV JOINT (LEFT/BLACK)
  • 19
    5431149-070 SHIELD CV JOINT (RIGHT/BLACK)
    SHIELD CV JOINT (RIGHT/BLACK)
  • 20
    7512084 SCREW
    SCREW
  • 21
    5434551 BUSHING A ARM, LONG (BLACK)
    BUSHING A ARM, LONG (BLACK)
  • 22
    5133806 SHAFT A ARM
    SHAFT A ARM
  • 23
    2202282 A FRAME KIT (LEFT) (1541870) (INCL. 13, 21, 22, 25)
    A FRAME KIT (LEFT) (1541870) (INCL. 13, 21, 22, 25)
  • 23
    2202283 A FRAME KIT (RIGHT) (1541871) (INCL. 13, 21, 22, 25)
    A FRAME KIT (RIGHT) (1541871) (INCL. 13, 21, 22, 25)
  • 25
    7518364 BOLT HEXAGON FLANGE GR5 (3/8 16X7/8)
    BOLT HEXAGON FLANGE GR5 (3/8 16X7/8)
  • 26
    7515415 SCREW
    SCREW
