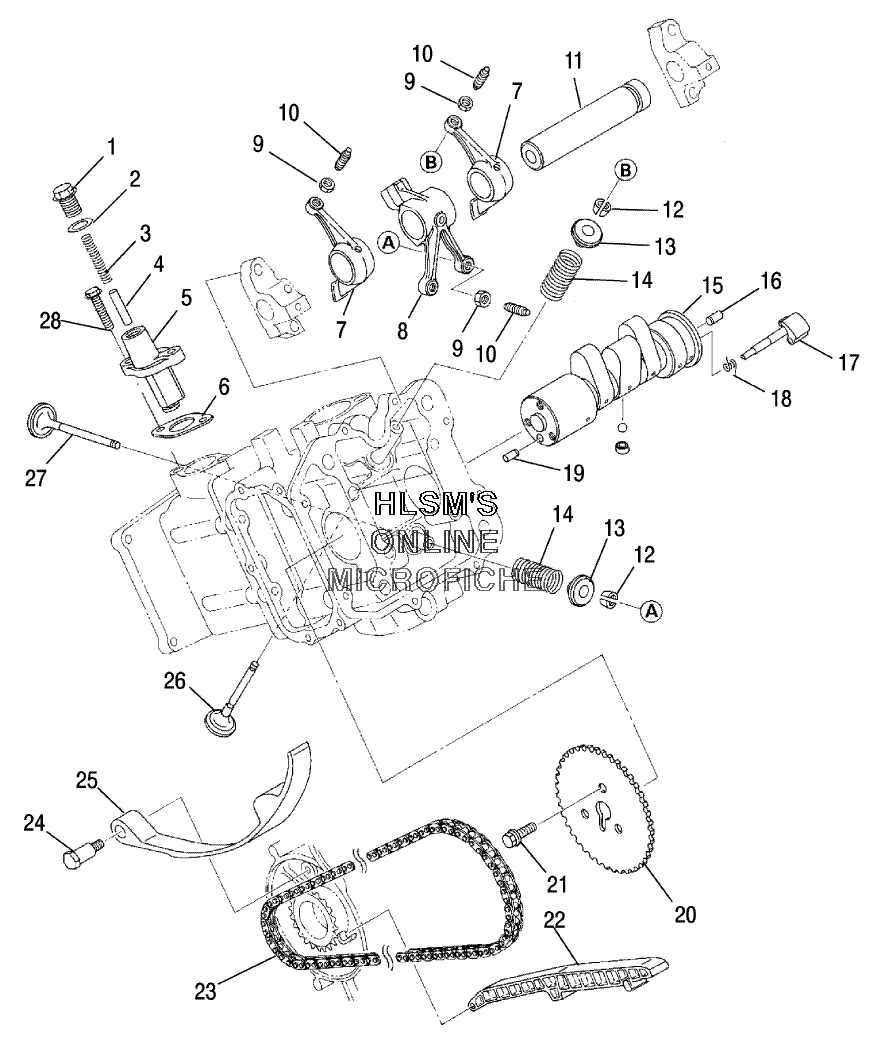

CAMSHAFT W/ VALVE ASSY. для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3087129 PLUG
    PLUG
  • 2
    3087130 GASKET, PLUG
    GASKET, PLUG
  • 3
    3087131 SPRING, TENSIONER
    SPRING, TENSIONER
  • 4
    3087132 PIN
    PIN
  • 5
    3086493 TENSIONER ASSY (INCL. 1-4)
    TENSIONER ASSY (INCL. 1-4)
  • 6
    3086448 GASKET TENSIONER
    GASKET TENSIONER
  • 7
    3084910 ROCKER ARM ASSY, INTAKE (INCL. 9, 10)
    ROCKER ARM ASSY, INTAKE (INCL. 9, 10)
  • 8
    3084913 ROCKERARM ASSY, EXHAUST (INCL. 9, 10)
    ROCKERARM ASSY, EXHAUST (INCL. 9, 10)
  • 9
    3084912 NUT
    NUT
  • 10
    3084911 SCREW, ADJ.
    SCREW, ADJ.
  • 11
    3084909 SHAFT, ROCKER
    SHAFT, ROCKER
  • 12
    3084908 COLLET, VALVE
    COLLET, VALVE
  • 13
    3087203 RETAINER VALVE SPRING
    RETAINER VALVE SPRING
  • 14
    3086892 SPRING, VALVE
    SPRING, VALVE
  • 15
    3086212 CAMSHAFT ASSY (INCL. 15-19)
    CAMSHAFT ASSY (INCL. 15-19)
  • 16
    3086838 PIN, DOWEL
    PIN, DOWEL
  • 17
    3085348 LEVER, RELEASE
    LEVER, RELEASE
  • 18
    3085076 SPRING, RETURN
    SPRING, RETURN
  • 19
    3084899 PIN, DOWEL
    PIN, DOWEL
  • 20
    3084914 SPROCKET 2
    SPROCKET 2
  • 21
    3081657 BOLT AND WASHER ASSY
    BOLT AND WASHER ASSY
  • 22
    3084916 GUIDE, CHAIN
    GUIDE, CHAIN
  • 23
    3084915 CHAIN, TIMING
    CHAIN, TIMING
  • 24
    3084924 BOLT ASSY, PIVOT LEVER
    BOLT ASSY, PIVOT LEVER
  • 25
    3084917 LEVER
    LEVER
  • 26
    3085349 VALVE, INTAKE
    VALVE, INTAKE
  • 27
    3085412 VALVE, EXHAUST
    VALVE, EXHAUST
  • 28
    3083361 BOLT, FLANGE
    BOLT, FLANGE
