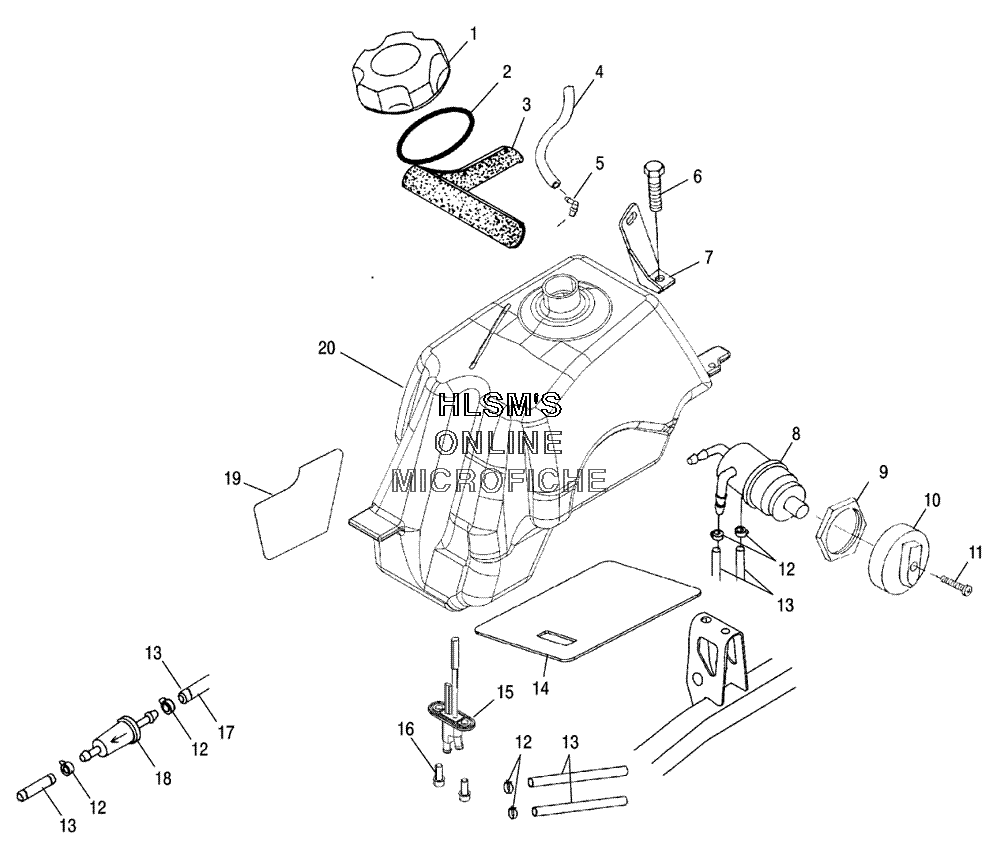

FUEL TANK для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 2
    5812123 GASKET
    GASKET
  • 3
    5811310 SEAL FOAM (21 IN)
    SEAL FOAM (21 IN)
  • 4
    8360009-600 LINE, FUEL (1/8 ID) (600 CM)
    LINE, FUEL (1/8 ID) (600 CM)
  • 5
    5431053 VENT, TANK
    VENT, TANK
  • 6
    7517685 SCREW
    SCREW
  • 7
    5222154 BRACKET FUEL COVER MOUNT, PLATED (LEFT)
    BRACKET FUEL COVER MOUNT, PLATED (LEFT)
  • 7
    5222155 BRACKET FUEL COVER MOUNT, PLATED (RIGHT)
    BRACKET FUEL COVER MOUNT, PLATED (RIGHT)
  • 8
    7052161 VALVE, 3 WAY
    VALVE, 3 WAY
  • 9
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 10
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 11
    7517505 SCREW
    SCREW
  • 12
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    8450103 LINE, FUEL 1/4" DP SAE J30R9
    LINE, FUEL 1/4" DP SAE J30R9
  • 14
    5812005 FOIL (9.5X7.125)
    FOIL (9.5X7.125)
  • 15
    7052364 FITTING FUEL, DUAL OUTLET
    FITTING FUEL, DUAL OUTLET
  • 16
    7515136 SCREW
    SCREW
  • 17
    8450105-65 SHEATH REFLECTOR SLEEVE (16MMX65CM)
    SHEATH REFLECTOR SLEEVE (16MMX65CM)
  • 18
    2530009 FILTER, SMALL IN LINE
    FILTER, SMALL IN LINE
  • 19
    5812004 FOIL
    FOIL
  • 20
    2520407 FUEL TANK ASSY (INCL. 14/16, 19)
    FUEL TANK ASSY (INCL. 14/16, 19)
