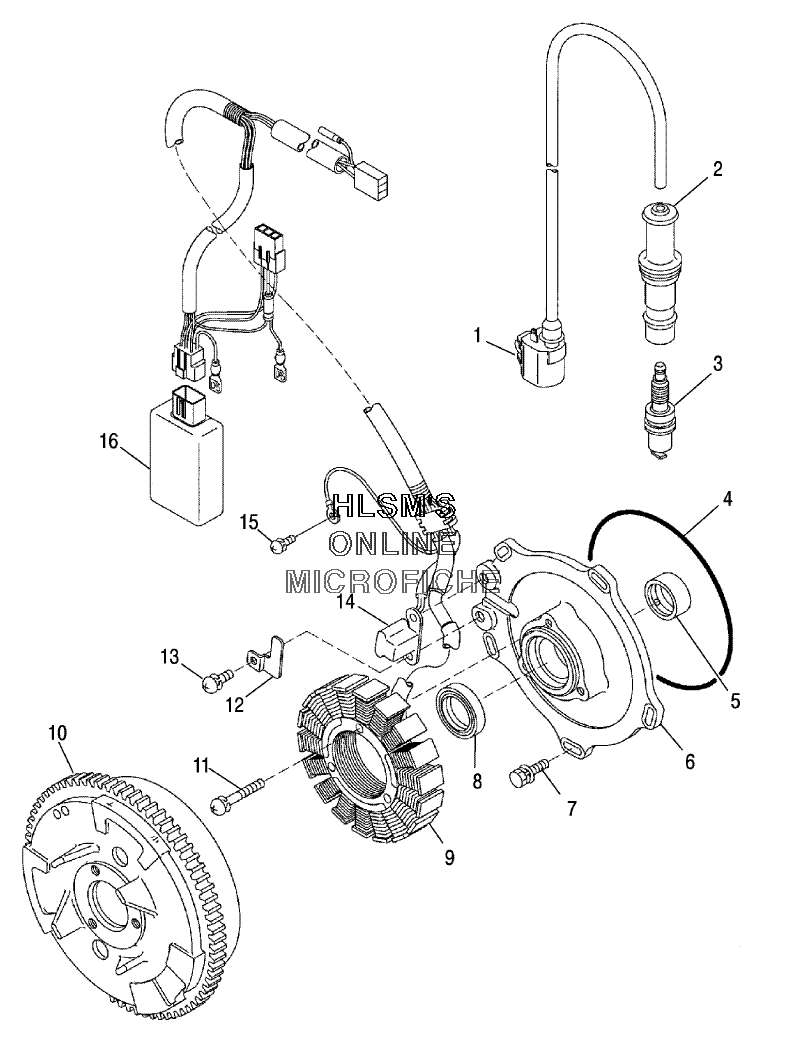

MAGNETO для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска
-
№АртикулНазвание
-
13089239 IGNITION COIL ASSY (INCL. 1, 2)IGNITION COIL ASSY (INCL. 1, 2)
-
23084980 CAP, SPARKPLUGCAP, SPARKPLUG
-
33070175 SPARKPLUG, BKR5ESPARKPLUG, BKR5E
-
43084978 O RINGO RING
-
53084972 BEARING, METALBEARING, METAL
-
63089545 PLATE ASSY (INCL. 5, 6, 8, 9, 11-15)PLATE ASSY (INCL. 5, 6, 8, 9, 11-15)
-
63089248 PLATEPLATE
-
73081657 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
83084973 SEAL, OILSEAL, OIL
-
93089546 STATOR (INCL. 14)STATOR (INCL. 14)
-
103089544 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
-
113089547 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
123089250 BAND PULSEBAND PULSE
-
133084976 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
143089254 COIL PULSERCOIL PULSER
-
153081256 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
163089238 CDI SYSTEMCDI SYSTEM
