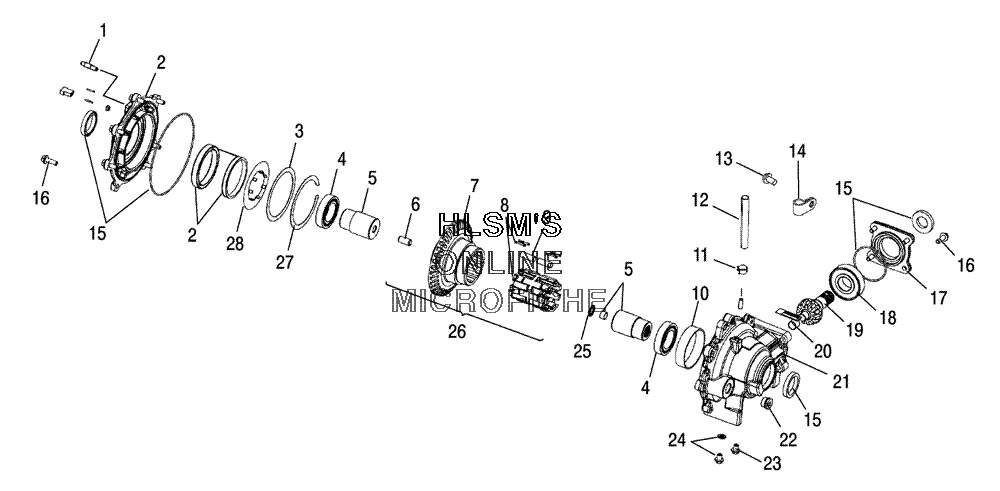

DIFFERENTIAL - FRONT для Polaris SPORTSMAN 600 (A05MH59AN) (SONIC BLUE) - 2005 года выпуска`
-
№АртикулНазвание
-
13234163 SCREW SETSCREW SET
-
23234159 COVER PLATE ASSY(INCL. OUTPUT COVER, INSERT AND COIL)COVER PLATE ASSY(INCL. OUTPUT COVER, INSERT AND COIL)
-
33234161 PLATE ARMATURE, SHIMPLATE ARMATURE, SHIM
-
43233926 BEARING ROLLER BALLBEARING ROLLER BALL
-
53233953 RACE/OUTPUT HUB ASSY (INCL. 25)RACE/OUTPUT HUB ASSY (INCL. 25)
-
63233928 PIN DOWEL (1/2"DIA X 1")PIN DOWEL (1/2"DIA X 1")
-
73234166 CLUTCH HOUSING/RING GEARCLUTCH HOUSING/RING GEAR
-
83234167 ROLL CAGE ASSY (INCL. SPRING AND ROLL CAGE)ROLL CAGE ASSY (INCL. SPRING AND ROLL CAGE)
-
93233957 ROLLER KITROLLER KIT
-
103234169 BUSHINGBUSHING
-
117080307 CLAMP, HOSECLAMP, HOSE
-
128450003 LINE, FUEL (1/4 ID) (1525CM)LINE, FUEL (1/4 ID) (1525CM)
-
137512024 SCREWSCREW
-
147080693 CLAMP, HOSE, NYLONCLAMP, HOSE, NYLON
-
153233956 MINOR REPAIR KIT (INCL. O-RINGS AND SEALS)MINOR REPAIR KIT (INCL. O-RINGS AND SEALS)
-
163233918 BOLT, KITBOLT, KIT
-
173233947 COVER INPUT (MACH)COVER INPUT (MACH)
-
183234112 BEARING DEEP GROVE ROLLER BALLBEARING DEEP GROVE ROLLER BALL
-
193233944 SHAFT PINION (11T) (6.75DP) (MACH)SHAFT PINION (11T) (6.75DP) (MACH)
-
223233942 PLUG OIL FILL (3/4 16 HOLLOW)PLUG OIL FILL (3/4 16 HOLLOW)
-
237518364 BOLT HEXAGON FLANGE GR5 (3/8 16X7/8)BOLT HEXAGON FLANGE GR5 (3/8 16X7/8)
-
243233951 DRAIN PLUG ASSY (INCL. PLUG AND WASHER)DRAIN PLUG ASSY (INCL. PLUG AND WASHER)
-
253233929 BEARING NEEDLE ROLLER THRUSTBEARING NEEDLE ROLLER THRUST
-
263234168 CLUTCH ASSY (INCL. 7-9)CLUTCH ASSY (INCL. 7-9)
-
273234162 RING RETAINING, INTERNALRING RETAINING, INTERNAL
-
283234160 PLATE ARMATUREPLATE ARMATURE
-
281341497 GEARCASE ASSY, BEARINGLESS (FRONT)GEARCASE ASSY, BEARINGLESS (FRONT)
-
283233955 BOLT, KITBOLT, KIT
