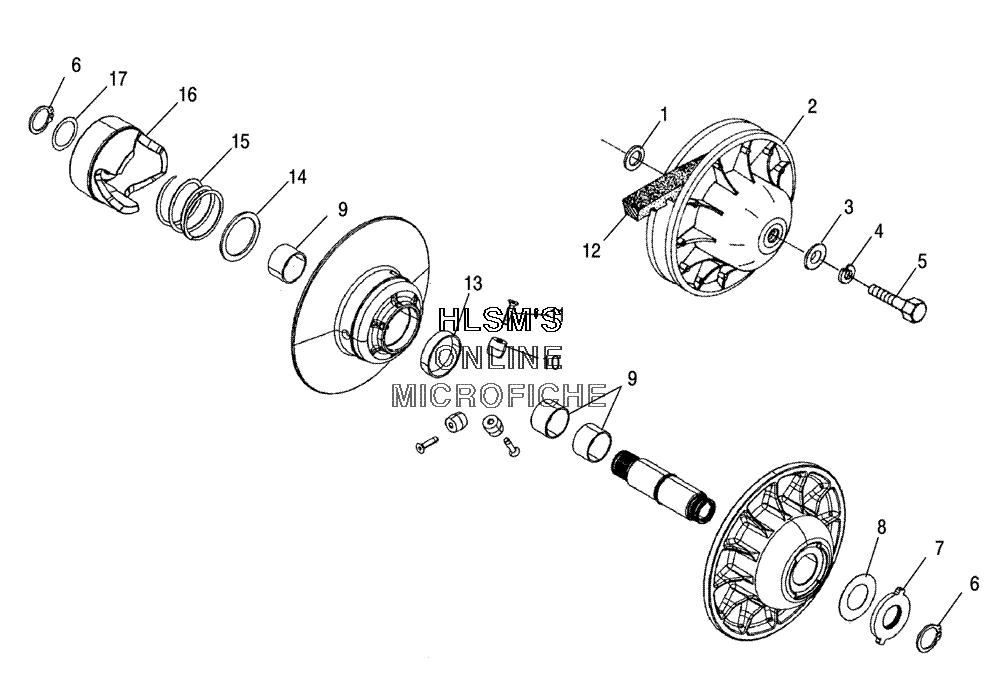

CLUTCH - DRIVEN для Polaris SPORTSMAN 600 (A05MH59AN) (SONIC BLUE) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7556120 BUSHING (7/8 X 3/8 X 16 GA Y)
    BUSHING (7/8 X 3/8 X 16 GA Y)
  • 2
    1322407 CLUTCH ASSY, DRIVEN, EBS W/Y (INCL. 3 6, 13 17)
    CLUTCH ASSY, DRIVEN, EBS W/Y (INCL. 3 6, 13 17)
  • 3
    5220646 WASHER, DOMED
    WASHER, DOMED
  • 4
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 5
    7515382 BOLT
    BOLT
  • 6
    7710448 RING, RETAINING
    RING, RETAINING
  • 7
    5133655 PLATE CLUTCH, DRIVEN EBS
    PLATE CLUTCH, DRIVEN EBS
  • 8
    7556203 WASHER (1.39X2.50X.030) (PTFE)
    WASHER (1.39X2.50X.030) (PTFE)
  • 9
    3576511 BUSHING, MOVEABLE (1 INCH)
    BUSHING, MOVEABLE (1 INCH)
  • 10
    1321977 ROLLER TAPER
    ROLLER TAPER
  • 11
    7517323 SCREW, SPECIAL
    SCREW, SPECIAL
  • 12
    3211091 BELT DRIVE
    BELT DRIVE
  • 13
    3585710 BEARING
    BEARING
  • 14
    5211115 WASHER
    WASHER
  • 15
    7041635 SPRING (WHITE/YELLOW)
    SPRING (WHITE/YELLOW)
  • 16
    5132751 RAMP STA EBS 31Ш (MACH)
    RAMP STA EBS 31Ш (MACH)
  • 17
    5210753 SPACER (.032)
    SPACER (.032)
