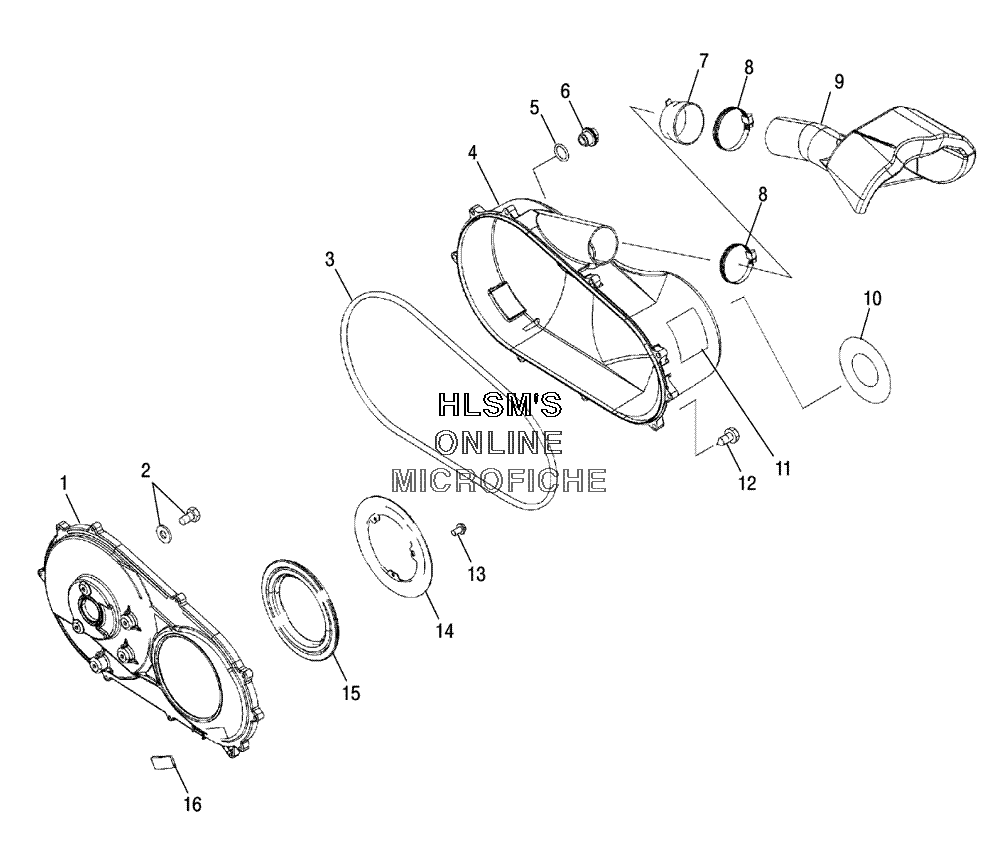

CLUTCH COVER для Polaris SPORTSMAN 600 (A05MH59AN) (SONIC BLUE) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    2201955 CLUTCH COVER KIT (INNER) (INCL. 12)
    CLUTCH COVER KIT (INNER) (INCL. 12)
  • 2
    7517599 BOLT/WASHER ASSY (.88)
    BOLT/WASHER ASSY (.88)
  • 3
    5521578 SEAL CLUTCH COVER (OUTER)
    SEAL CLUTCH COVER (OUTER)
  • 4
    5434255-070 COVER CLUTCH, HV (OUTER/BLACK)
    COVER CLUTCH, HV (OUTER/BLACK)
  • 5
    5410542 O-RING
    O-RING
  • 6
    5434264 PLUG DRAIN
    PLUG DRAIN
  • 7
    5411489 BOOT, DUCT HI FLOW (IF BUILT BEFORE 11/15/04)
    BOOT, DUCT HI FLOW (IF BUILT BEFORE 11/15/04)
  • 7
    5412636 BOOT DUCT, HI FLOW (IF BUILT AFTER 11/15/04)
    BOOT DUCT, HI FLOW (IF BUILT AFTER 11/15/04)
  • 8
    7080707 CLAMP, BAND NARROW
    CLAMP, BAND NARROW
  • 9
    5434012 DUCT CLUTCH OUTLET (IF BUILT BEFORE 7/26/04)
    DUCT CLUTCH OUTLET (IF BUILT BEFORE 7/26/04)
  • 9
    5435976 DUCT CLUTCH OUTLET (IF BUILT AFTER 7/26/04)
    DUCT CLUTCH OUTLET (IF BUILT AFTER 7/26/04)
  • 10
    7172747 DECAL AUTO.TRANSMISSION, EBS
    DECAL AUTO.TRANSMISSION, EBS
  • 11
    7172563 DECAL, WARNING CLUTCH COVER
    DECAL, WARNING CLUTCH COVER
  • 12
    7512094 SCREW
    SCREW
  • 13
    7517867 SCREW, L/W SEM (M5X0.8X10) (PHPN ZY)
    SCREW, L/W SEM (M5X0.8X10) (PHPN ZY)
  • 14
    5244527-067 BRACKET, RETAINER SEAL (BLACK)
    BRACKET, RETAINER SEAL (BLACK)
  • 15
    5411918 SEAL, COVER, CLUTCH (INNER)
    SEAL, COVER, CLUTCH (INNER)
  • 16
    5412675 STOPPER, CLUTCH COVER (INNER)
    STOPPER, CLUTCH COVER (INNER)
