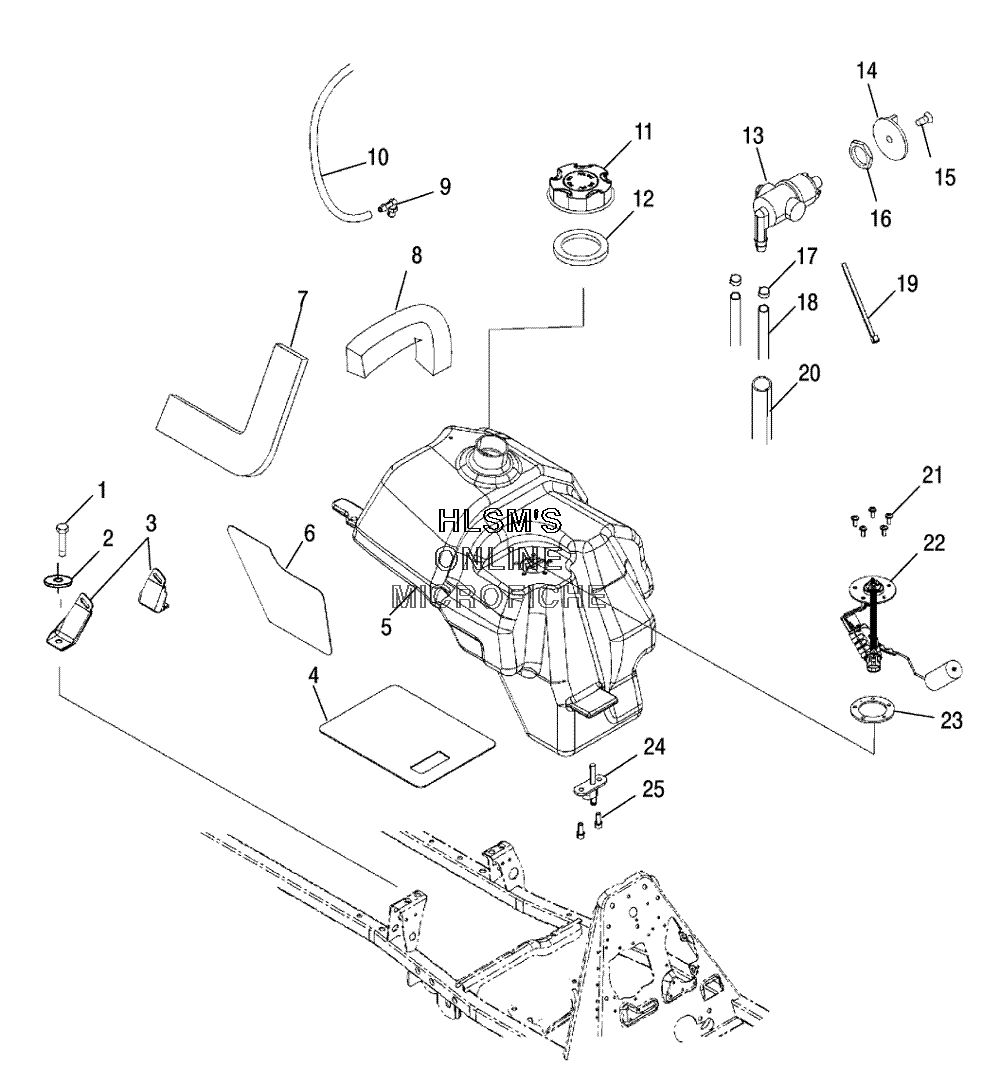

FUEL TANK для Polaris SPORTSMAN 600 (A05MH59AN) (SONIC BLUE) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7517685 SCREW
    SCREW
  • 2
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 3
    5247184 BRACKET FUEL COVER MOUNT, PLATED (LEFT)
    BRACKET FUEL COVER MOUNT, PLATED (LEFT)
  • 3
    5247185 BRACKET FUEL COVER MOUNT, PLATED (RIGHT)
    BRACKET FUEL COVER MOUNT, PLATED (RIGHT)
  • 4
    5812005 FOIL (9.5X7.125)
    FOIL (9.5X7.125)
  • 5
    2520403 FUEL TANK W/SENDER ASSY (INCL. 4, 6, 9, 24, 25)
    FUEL TANK W/SENDER ASSY (INCL. 4, 6, 9, 24, 25)
  • 6
    5812004 FOIL
    FOIL
  • 7
    5812265 SEAL FOAM (12 IN)
    SEAL FOAM (12 IN)
  • 8
    5812776 FOAM
    FOAM
  • 9
    5431053 VENT, TANK
    VENT, TANK
  • 10
    8360009-600 LINE, FUEL (1/8 ID) (600 CM)
    LINE, FUEL (1/8 ID) (600 CM)
  • 11
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 12
    5812123 GASKET
    GASKET
  • 13
    7052159 VALVE, ON/OFF
    VALVE, ON/OFF
  • 14
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 15
    7517505 SCREW
    SCREW
  • 16
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 17
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    8450103 LINE, FUEL (1/4" DP SAE J30R9)
    LINE, FUEL (1/4" DP SAE J30R9)
  • 19
    7080492 CABLE TIE (11 INCH)
    CABLE TIE (11 INCH)
  • 20
    8450105-65 SHEATH REFLECTSLEEVE (16MMX65CM)
    SHEATH REFLECTSLEEVE (16MMX65CM)
  • 21
    7518257 SCREW (#10 32X1/2)
    SCREW (#10 32X1/2)
  • 22
    2410554 SENDER FUEL, LEVEL
    SENDER FUEL, LEVEL
  • 23
    5810858 GASKET
    GASKET
  • 24
    7052363 FITTING FUEL, SINGLE OUTLET
    FITTING FUEL, SINGLE OUTLET
  • 25
    7515136 SCREW
    SCREW
