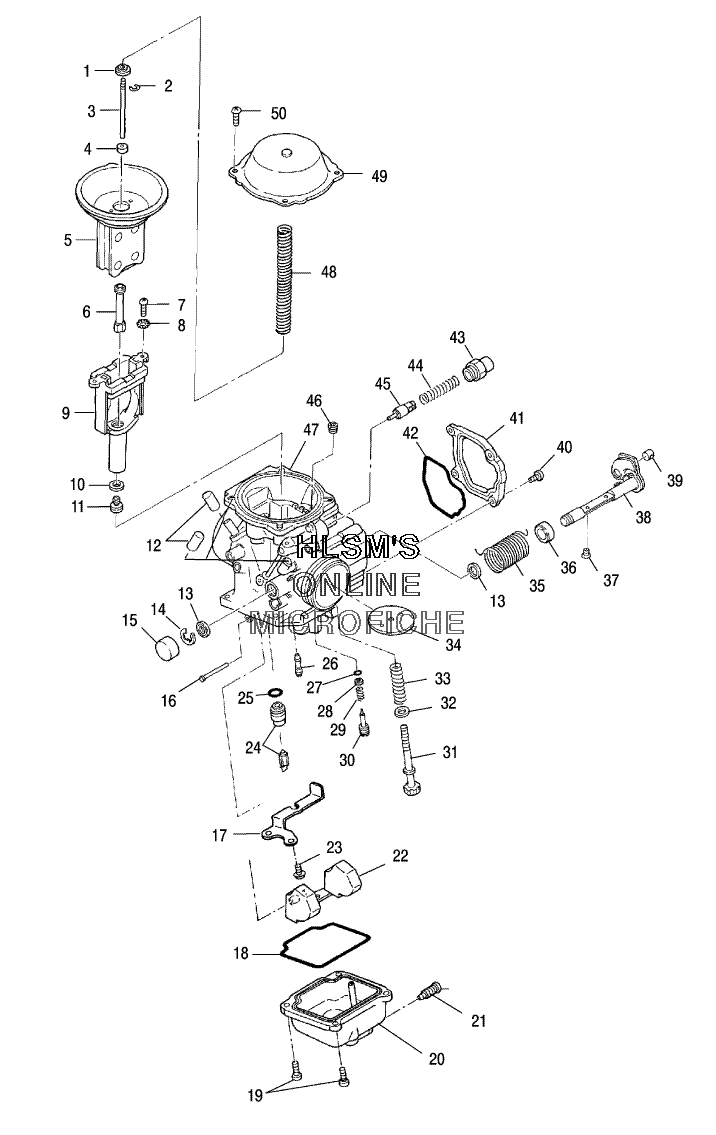

CARBURETOR для Polaris SPORTSMAN 600 (A05MH59AN) (SONIC BLUE) - 2005 года выпуска
-
№АртикулНазвание
-
13130507 RINGRING
-
23130508 E-RINGE-RING
-
33130963 NEEDLE, JETNEEDLE, JET
-
43130752 RINGRING
-
53130732 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
63131363 JET NEEDLE (P 6)JET NEEDLE (P 6)
-
73130541 SCREWSCREW
-
83130540 WASHER, SPRINGWASHER, SPRING
-
103130014 WASHERWASHER
-
113130572 MAIN JET (#157.5)MAIN JET (#157.5)
-
125434505 CAP DIP BLACK VINYL (.230X.50)CAP DIP BLACK VINYL (.230X.50)
-
133130515 SEALSEAL
-
153130519 CAPCAP
-
163130361 PIN, FLOATPIN, FLOAT
-
173130594 PLATEPLATE
-
183130532 O-RINGO-RING
-
193130520 SCREWSCREW
-
203130590 FLOATBODY ASSYFLOATBODY ASSY
-
213130521 SCREWSCREW
-
223130529 FLOAT ASSYFLOAT ASSY
-
233130591 SCREWSCREW
-
243131360 VALVE NEEDLE (PUSH IN) (1.5)VALVE NEEDLE (PUSH IN) (1.5)
-
253130533 O-RINGO-RING
-
263131397 JET PILOT (45)JET PILOT (45)
-
273130522 O-RINGO-RING
-
283130523 WASHERWASHER
-
293130525 SPRINGSPRING
-
303130524 ADJUSTERADJUSTER
-
313130546 SCREW, ADJUSTSCREW, ADJUST
-
323130545 RINGRING
-
333130544 SPRINGSPRING
-
353131398 SPRINGSPRING
-
363130514 RINGRING
-
393130543 GUIDE, CABLEGUIDE, CABLE
-
403130535 SCREWSCREW
-
413130511 COVER (IF BUILT BEFORE 7/16/04)COVER (IF BUILT BEFORE 7/16/04)
-
411202421 (IF BUILT AFTER 7/16/04)(IF BUILT AFTER 7/16/04)
-
423130512 O-RINGO-RING
-
433131396 HOLDER GUIDEHOLDER GUIDE
-
443130538 SPRINGSPRING
-
453131395 ASSY PLUNGERASSY PLUNGER
-
463130625 JET, AIR, PILOT (#160)JET, AIR, PILOT (#160)
-
471253537 CARBURETOR ASSY (INCL. 1 12/IF BUILT BEFORE 1/31/05)CARBURETOR ASSY (INCL. 1 12/IF BUILT BEFORE 1/31/05)
-
471203059 CARBURETOR ASSY, 600 05 R/C (INCL. 1 12/IF BUILT AFTER 1/31/05)CARBURETOR ASSY, 600 05 R/C (INCL. 1 12/IF BUILT AFTER 1/31/05)
-
483131451 SPRING COMPRESSIONSPRING COMPRESSION
-
493130503 COVER ASSYCOVER ASSY
-
503130924 SCREWSCREW
