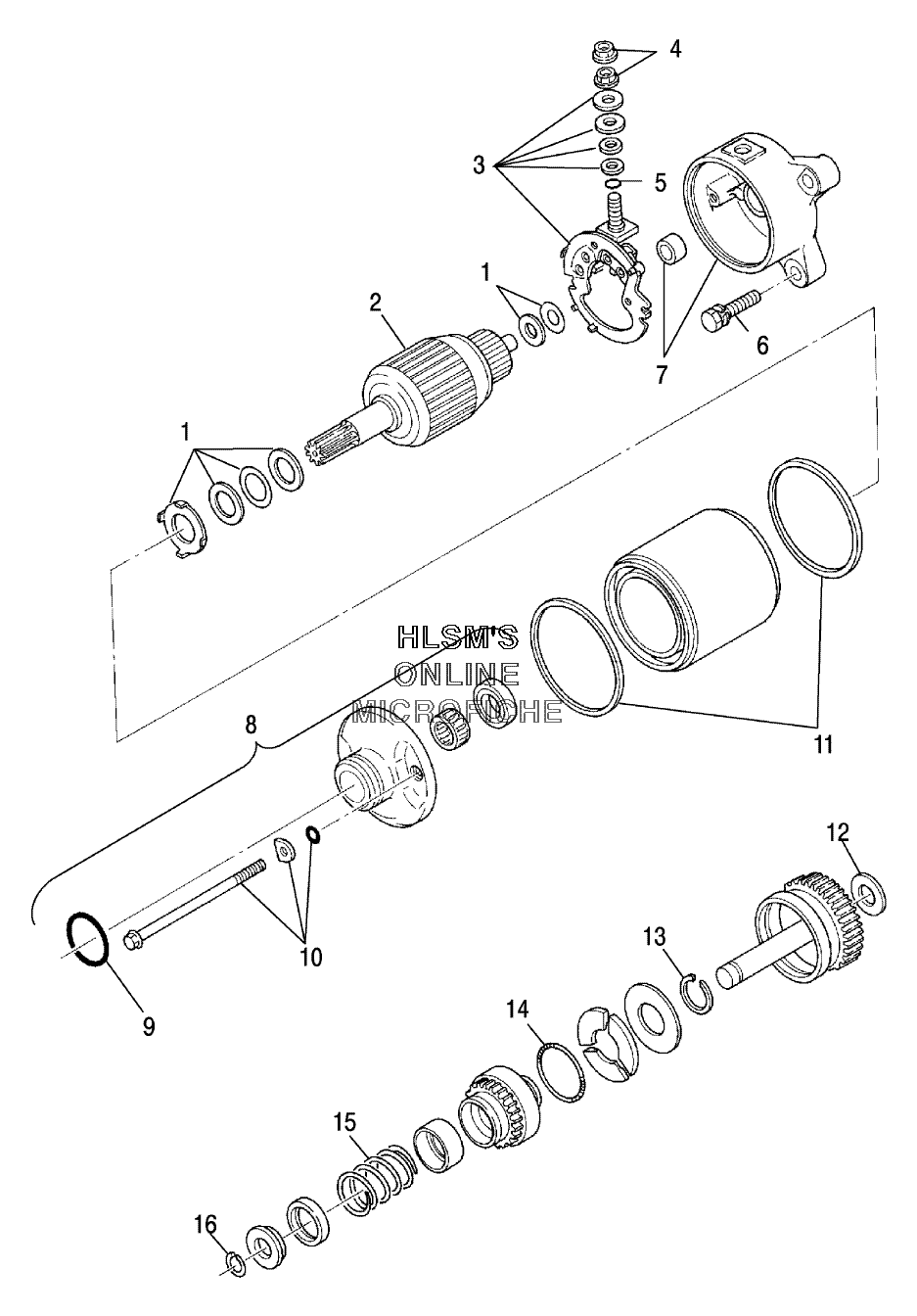

STARTING MOTOR для Polaris ATP 330 4X4 (A05JD32AA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3084982 WASHER SET
    WASHER SET
  • 2
    3085353 ARMATURE ASSY.
    ARMATURE ASSY.
  • 3
    3088169 CARBON BRUSH SET
    CARBON BRUSH SET
  • 4
    3083649 NUT, FLANGE
    NUT, FLANGE
  • 5
    3084408 O RING
    O RING
  • 6
    3082038 BOLT AND WASHER ASSY
    BOLT AND WASHER ASSY
  • 7
    3085034 COVER ASSY (REAR)
    COVER ASSY (REAR)
  • 8
    3085033 BRACKET ASSY (FRONT) (INCL. 9)
    BRACKET ASSY (FRONT) (INCL. 9)
  • 9
    3240114 O RING
    O RING
  • 10
    3084983 BOLT ASSY, SET (INCL. 5)
    BOLT ASSY, SET (INCL. 5)
  • 11
    3084405 RING, RUBBER
    RING, RUBBER
  • 12
    7555908 WASHER
    WASHER
  • 13
    3084412 CLIP
    CLIP
  • 14
    3084411 SPRING, WEIGHT
    SPRING, WEIGHT
  • 15
    3084410 SPRING, RETURN
    SPRING, RETURN
  • 16
    3084409 CLIP
    CLIP
  • 16
    3084981 MOTOR ASSY, STARTING (INCL. 1, 5, 7, 11)
    MOTOR ASSY, STARTING (INCL. 1, 5, 7, 11)
  • 16
    3087030 GEAR, SHAFT ASSY (INCL. 13-16)
    GEAR, SHAFT ASSY (INCL. 13-16)
