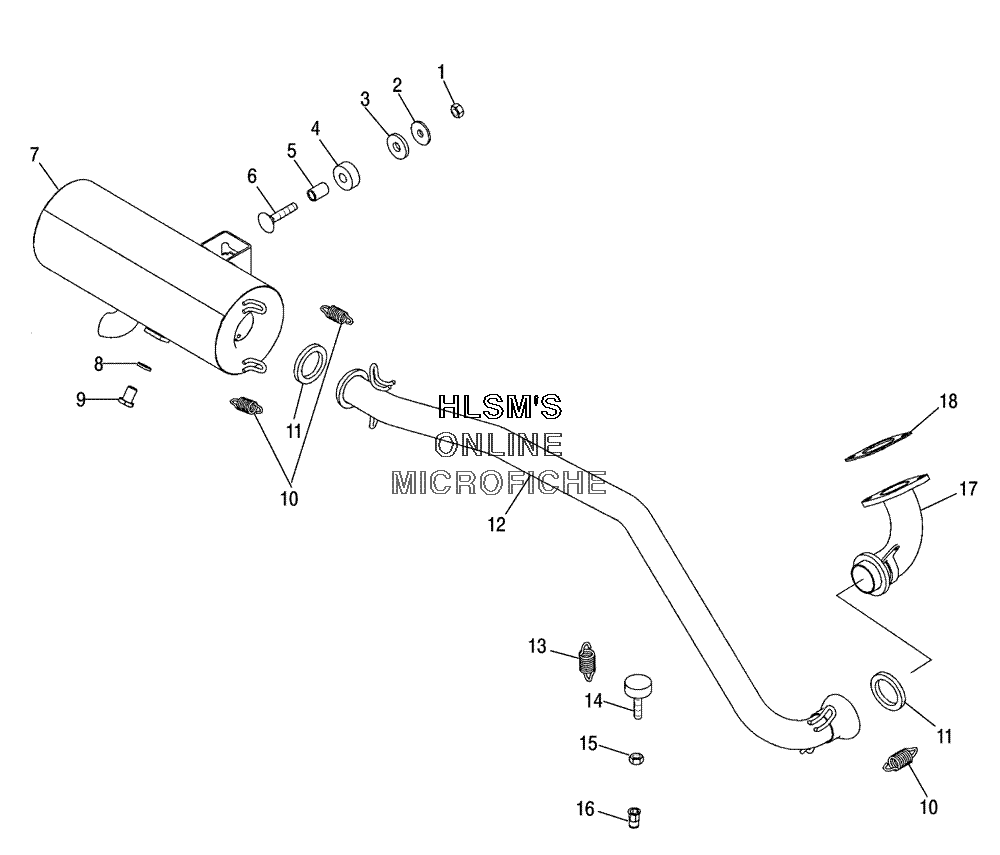

EXHAUST SYSTEM для Polaris ATP 330 4X4 (A05JD32AA) - 2005 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27555716 WASHERWASHER
-
35410436 WASHER, RUBBERWASHER, RUBBER
-
45412233 DAMPENER VIBRATION (IF BUILT BEFORE 10/04/04)DAMPENER VIBRATION (IF BUILT BEFORE 10/04/04)
-
45412659 DAMPENER VIBRATION (IF BUILT AFTER 10/04/04)DAMPENER VIBRATION (IF BUILT AFTER 10/04/04)
-
55010192 BUSHINGBUSHING
-
67515316 BOLTBOLT
-
71261215-029 WELD SILENCER (BLACK)WELD SILENCER (BLACK)
-
87556230 WASHER CLEAN OUT (.51X.75X.09)WASHER CLEAN OUT (.51X.75X.09)
-
97512666 BOLTBOLT
-
107041804 SPRINGSPRING
-
115243517 SEAL, EXHAUSTSEAL, EXHAUST
-
121261222-029 WELD HEADPIPE (BLACK)WELD HEADPIPE (BLACK)
-
137041687 SPRINGSPRING
-
143110064 MOUNT, TORQUE STOPMOUNT, TORQUE STOP
-
157542301 NUT HEXNUT HEX
-
167547101 NUTSERT, HXY (5/16 18) (.027 .150)NUTSERT, HXY (5/16 18) (.027 .150)
-
171260960-029 MANIFOLD (BLACK)MANIFOLD (BLACK)
-
183086421 GASKET, EXHAUSTGASKET, EXHAUST
