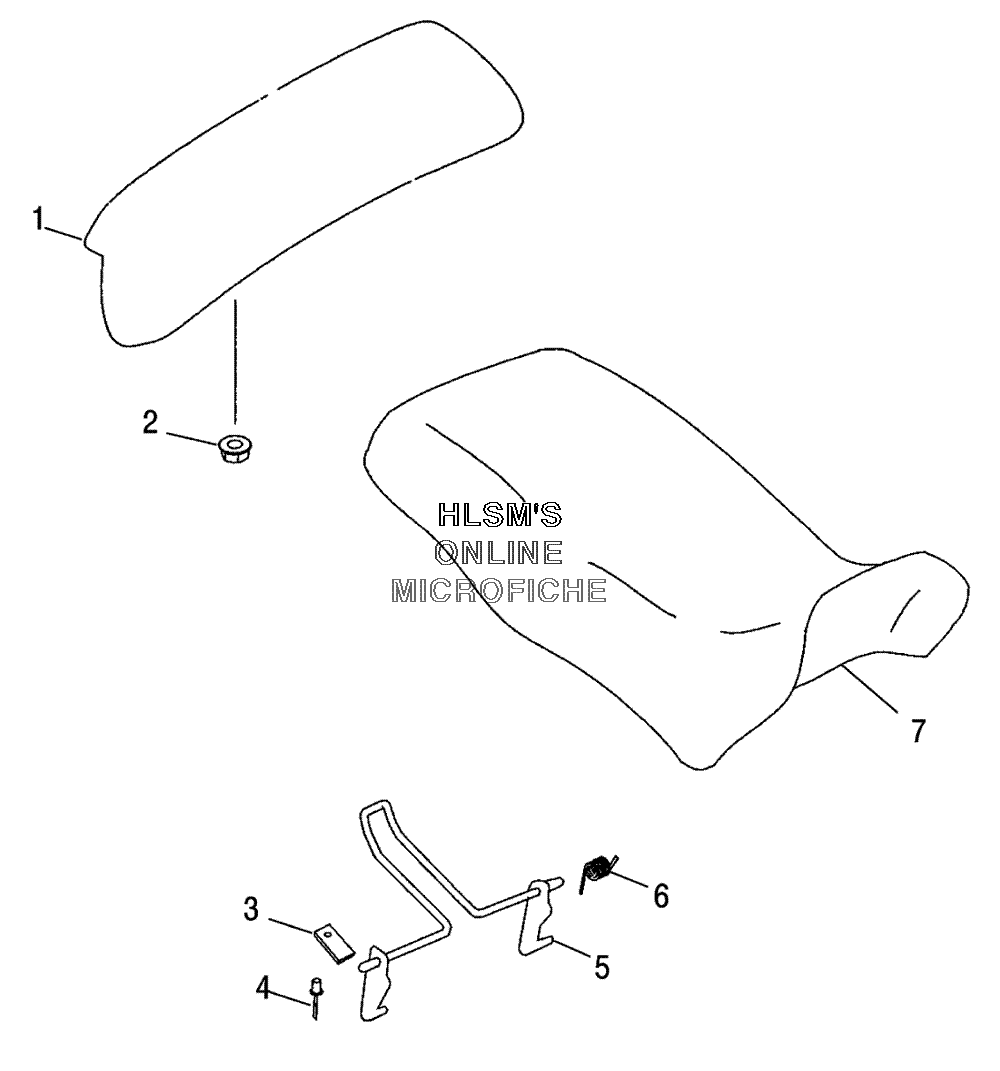

SEAT ASSY. для Polaris ATP 330 4X4 (A05JD32AA) - 2005 года выпуска
-
№АртикулНазвание
-
15434839 BACKRESTBACKREST
-
27542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
35211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
47621403 BLIND RIVETBLIND RIVET
-
51040387 LATCH, SEATLATCH, SEAT
-
67041370 SPRING, LATCHSPRING, LATCH
-
72683197-070 SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
72682958-070 COVERING, SEAT (BLACK)COVERING, SEAT (BLACK)
