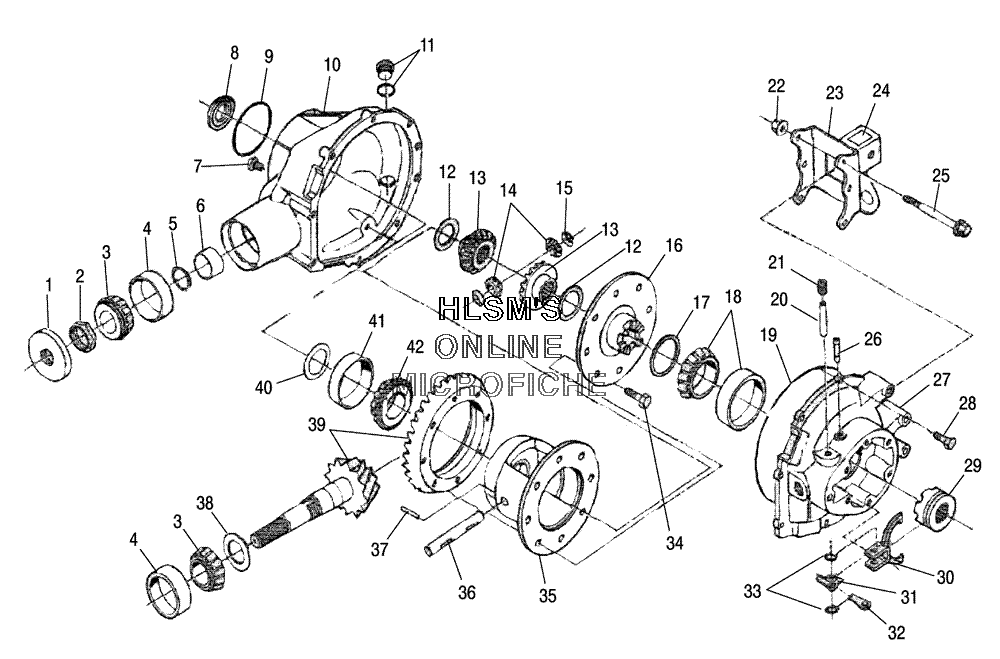

DIFFERENTIAL - REAR для Polaris ATP 330 4X4 (A05JD32AA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3610102 SEAL OIL, PINION (026HH102)
    SEAL OIL, PINION (026HH102)
  • 2
    7547243 NUT PINION (026HN104)
    NUT PINION (026HN104)
  • 3
    3514432 BEARING CONE, PINION (585974)
    BEARING CONE, PINION (585974)
  • 4
    3514431 BEARING CUP, PINION (3514431)
    BEARING CUP, PINION (3514431)
  • 5
    5133761 SPACER PINION (026HS101)
    SPACER PINION (026HS101)
  • 6
    5133762 SPACER BEARING, PINION (026HS102)
    SPACER BEARING, PINION (026HS102)
  • 7
    5133731 PLUG DRAIN
    PLUG DRAIN
  • 8
    3610103 SEAL OIL, SHAFT
    SEAL OIL, SHAFT
  • 9
    5412339 O RING (026HH104)
    O RING (026HH104)
  • 10
    5133765 HOUSING HALF, CARRIER (026CH100)
    HOUSING HALF, CARRIER (026CH100)
  • 11
    5133736 PLUG FILL/CHECK
    PLUG FILL/CHECK
  • 12
    7556268 WASHER THRST, SIDE GEAR (026HN103)
    WASHER THRST, SIDE GEAR (026HN103)
  • 13
    5133767 GEAR SIDE, DIFF (026GD108)
    GEAR SIDE, DIFF (026GD108)
  • 14
    5133768 GEAR PINION, MATE, DIFF (026GC100)
    GEAR PINION, MATE, DIFF (026GC100)
  • 15
    7556267 WASHER THRUST, PINION (026HN102)
    WASHER THRUST, PINION (026HN102)
  • 16
    5133758 COVER HALF, DIFF CASE (026DC102)
    COVER HALF, DIFF CASE (026DC102)
  • 17
    5133756 SPACER BEARING, DIFF (026HS103)
    SPACER BEARING, DIFF (026HS103)
  • 18
    3514435 BEARING TAPERED ROLLER (026HD101)
    BEARING TAPERED ROLLER (026HD101)
  • 19
    5412338 O RING HOUSING HALVES (026HH103)
    O RING HOUSING HALVES (026HH103)
  • 20
    5133755 SHAFT PIVOT, SHIFT YOKE (026SS100)
    SHAFT PIVOT, SHIFT YOKE (026SS100)
  • 21
    7518171 SCREW SET (026HM106)
    SCREW SET (026HM106)
  • 22
    7547242 NUT HEX,AGON FLANGED (026HN105)
    NUT HEX,AGON FLANGED (026HN105)
  • 23
    1014155 HITCH ASSY (026HT100)
    HITCH ASSY (026HT100)
  • 24
    7170910 DECAL HITCH (1000 LBS.)
    DECAL HITCH (1000 LBS.)
  • 25
    7518175 BOLT HEX FLANGED (026HM102)
    BOLT HEX FLANGED (026HM102)
  • 26
    7052334 VENT TUBE (026HN106)
    VENT TUBE (026HN106)
  • 27
    5133764 COVER HALF, CARRIER (026CH102)
    COVER HALF, CARRIER (026CH102)
  • 28
    7518172 BOLT HEXAGON, FLANGED (026HM103)
    BOLT HEXAGON, FLANGED (026HM103)
  • 29
    5133757 GEAR CLUTCH (026HS104)
    GEAR CLUTCH (026HS104)
  • 30
    5133759 YOKE SHIFT (026SV100)
    YOKE SHIFT (026SV100)
  • 31
    7042209 SPRING LEVER, SHIFT (026HE100)
    SPRING LEVER, SHIFT (026HE100)
  • 32
    5133760 LEVER SHIFT (026SV101)
    LEVER SHIFT (026SV101)
  • 33
    7042210 SPRING RETURN, SHIFT (026HE101)
    SPRING RETURN, SHIFT (026HE101)
  • 34
    7518173 BOLT HEXAGON (41221)
    BOLT HEXAGON (41221)
  • 35
    5133777 CASE HALF, DIFF (026DC100)
    CASE HALF, DIFF (026DC100)
  • 36
    5133769 PIN CROSS, DIFF (026DP100)
    PIN CROSS, DIFF (026DP100)
  • 37
    7661164 PIN ROLL, DIFF (500596-15)
    PIN ROLL, DIFF (500596-15)
  • 38
    5133763 SPACER PINION (026HS105)
    SPACER PINION (026HS105)
  • 39
    1341454 HYPIOD GEAR ASSY 0266A100X)
    HYPIOD GEAR ASSY 0266A100X)
  • 40
    5133766 SPACER BEARING, DIFF (026HS106)
    SPACER BEARING, DIFF (026HS106)
  • 41
    3514433 BEARING DIFF (585911)
    BEARING DIFF (585911)
  • 42
    3514434 BEARING, CONE DIFF
    BEARING, CONE DIFF
