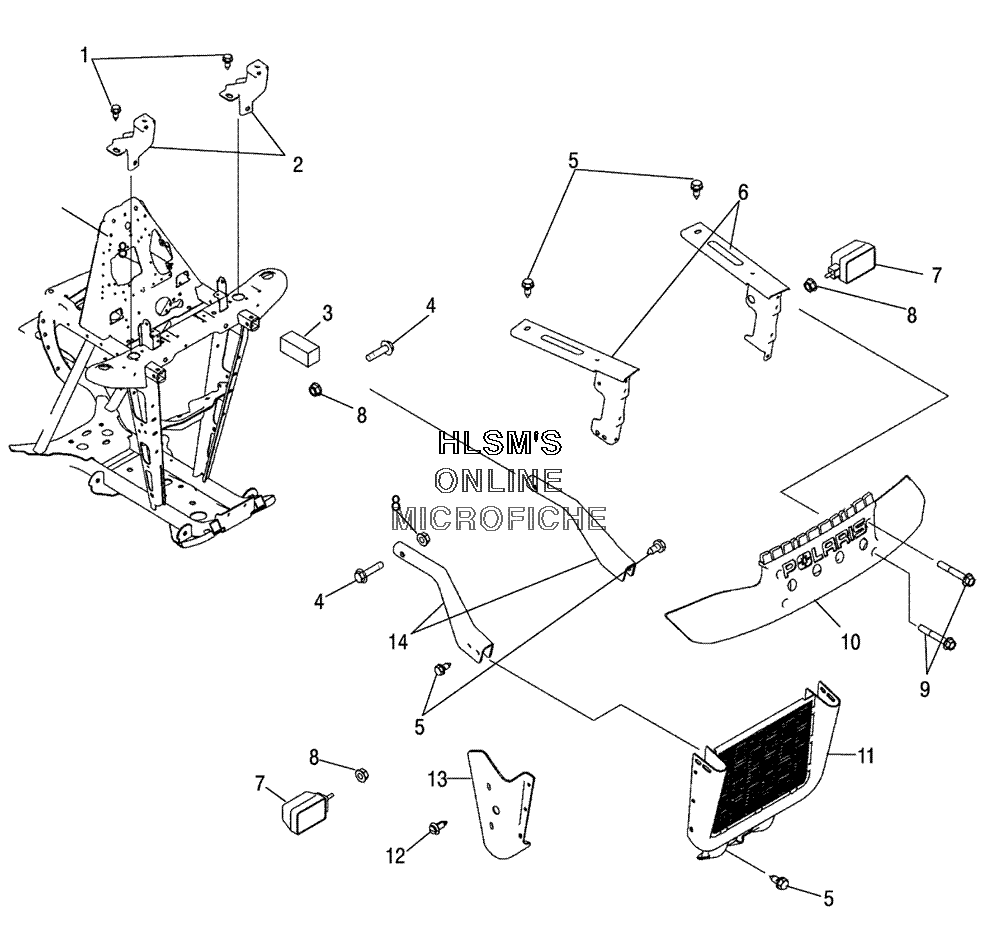

RACK AND BUMPER MOUNTING - FRONT для Polaris ATP 330 4X4 (A05JD32AA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7512232 BOLT
    BOLT
  • 2
    1013744-067 WELD SUPPORT RACK (FRONT/LEFT/BLACK)
    WELD SUPPORT RACK (FRONT/LEFT/BLACK)
  • 2
    1013746-067 WELD SUPPORT, RACK (FRONT/RIGHT/BLACK)
    WELD SUPPORT, RACK (FRONT/RIGHT/BLACK)
  • 3
    5810467 PLUG, FRAME
    PLUG, FRAME
  • 4
    7518341 BOLT, HEXAGON FLANGE GR5 (5/16 18X1 3/4)
    BOLT, HEXAGON FLANGE GR5 (5/16 18X1 3/4)
  • 5
    7515399 SCREW
    SCREW
  • 6
    1014099-067 WELD RACK MOUNT (LEFT/BLACK)
    WELD RACK MOUNT (LEFT/BLACK)
  • 6
    1014101-067 WELD RACK MOUNT (RIGHT/BLACK)
    WELD RACK MOUNT (RIGHT/BLACK)
  • 7
    2431011 HEADLIGHT ASSY, SIDE MOUNT (30/30W)
    HEADLIGHT ASSY, SIDE MOUNT (30/30W)
  • 7
    2431012 HEADLIGHT ASSY, SIDE MOUNT (30/30W)
    HEADLIGHT ASSY, SIDE MOUNT (30/30W)
  • 7
    4030061 BULB, HEADLIGHT (30/30 W)
    BULB, HEADLIGHT (30/30 W)
  • 8
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 9
    7517977 BOLT FLG TAP/R Y ( 5/16 18X2.25)
    BOLT FLG TAP/R Y ( 5/16 18X2.25)
  • 10
    5432155-070 BUMPER (BLACK)
    BUMPER (BLACK)
  • 10
    5432155-070 BUMPER (BLACK)
    BUMPER (BLACK)
  • 11
    1013772-067 WELD BRUSH GUARD (BLACK)
    WELD BRUSH GUARD (BLACK)
  • 12
    7661855 RIVET TUFLOK (.315 .325X.787)
    RIVET TUFLOK (.315 .325X.787)
  • 13
    5433923 SHIELD RADIATOR, SIDE (LEFT)
    SHIELD RADIATOR, SIDE (LEFT)
  • 13
    5433924 SHIELD RADIATOR, SIDE (RIGHT)
    SHIELD RADIATOR, SIDE (RIGHT)
  • 14
    5244729-067 EXTENSION FRAME (LEFT/BLACK)
    EXTENSION FRAME (LEFT/BLACK)
  • 14
    5244730-067 EXTENSION, FRAME (RIGHT/BLACK)
    EXTENSION, FRAME (RIGHT/BLACK)
