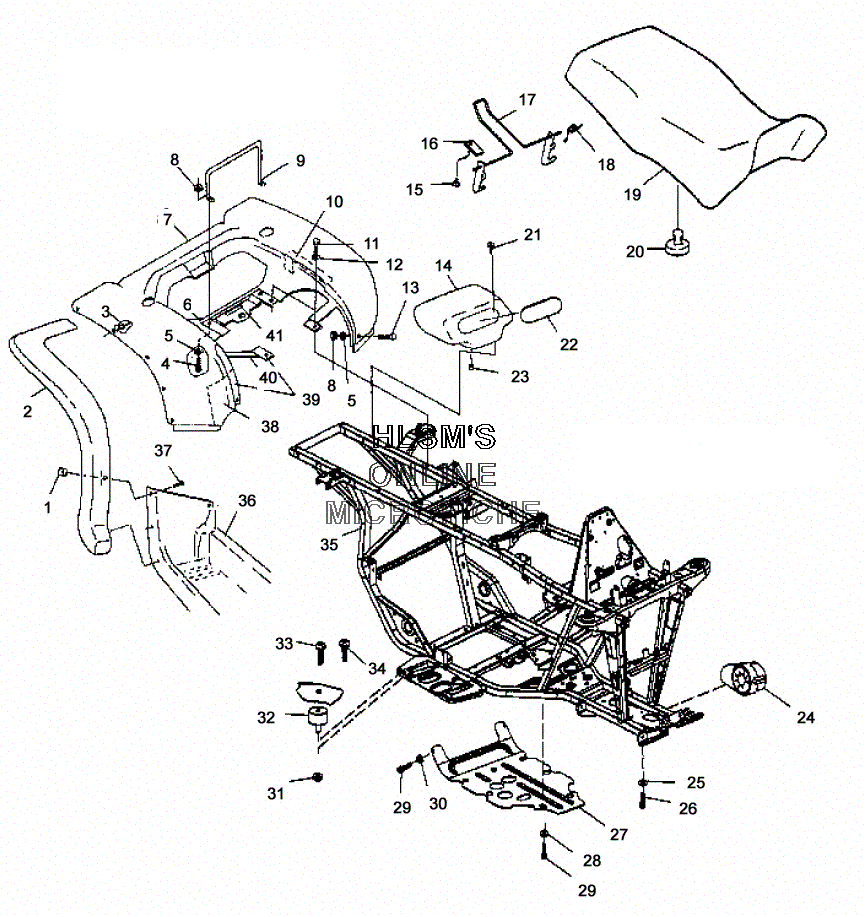

FENDER - REAR W/ SEAT - FRAME для Polaris XPEDITION 325 (A02CK32AA) - 2002 года выпуска`
-
№АртикулНазвание
-
17670057 NUT, SPEEDNUT, SPEED
-
25431796-070 GUARD-MUD,REAR, (LEFT), (BLACK)GUARD-MUD,REAR, (LEFT), (BLACK)
-
25431797-070 GUARD-MUD,REAR, (RIGHT), (BLACK)GUARD-MUD,REAR, (RIGHT), (BLACK)
-
37661645 RIVETRIVET
-
47511930 SCREWSCREW
-
57555792 WASHERWASHER
-
65811107 FOIL,REAR CAB,REARFOIL,REAR CAB,REAR
-
75432117-282 CAB,REAR,GEN 4,DESERT DUNECAB,REAR,GEN 4,DESERT DUNE
-
87541925 NUTNUT
-
95224592 RETAINER,SEAT LATCHRETAINER,SEAT LATCH
-
105811308 FOIL,TAPE,3 X 12FOIL,TAPE,3 X 12
-
117512242 SCREWSCREW
-
127555859 WASHER, FLATWASHER, FLAT
-
137512085 SCREWSCREW
-
145431786 TOOLBOXTOOLBOX
-
157621403 BLIND RIVETBLIND RIVET
-
165211033 BRACKET,LEVER RETAINERBRACKET,LEVER RETAINER
-
171040387 LATCH,SEATLATCH,SEAT
-
187041370 SPRING, LATCHSPRING, LATCH
-
192682441-070 SEAT, (BLACK)SEAT, (BLACK)
-
192682958-070 COVERING-SEAT, (BLACK)COVERING-SEAT, (BLACK)
-
195811104 FOIL,SEATBASE,LG.FOIL,SEATBASE,LG.
-
195811105 FOIL,SEATBASE,SM.FOIL,SEATBASE,SM.
-
205412067 BUMPER-RUBBERBUMPER-RUBBER
-
217517599 BOLT /WASHER.88BOLT /WASHER.88
-
225431787 COVER, TOOLBOXCOVER, TOOLBOX
-
235410896 CAP,DRAINCAP,DRAIN
-
257552603 WASHERWASHER
-
267512492 SCREWSCREW
-
275433435 GUARD-ROCKGUARD-ROCK
-
287556065 WASHER-SKID PLATEWASHER-SKID PLATE
-
297517386 SCREW,SCREW,
-
307558301 WASHERWASHER
-
317542122 NUT-LOCKNUT-LOCK
-
325411548 MOUNT,RUBBERMOUNT,RUBBER
-
337515111 SCREWSCREW
-
347512297 BOLTBOLT
-
351013668-067 WELD-MAIN FRAME,XPED, (BLACK)WELD-MAIN FRAME,XPED, (BLACK)
-
365433391-070 FOOTWELL- (LEFT),NY,MAN, (BLACK)FOOTWELL- (LEFT),NY,MAN, (BLACK)
-
365433392-070 FOOTWELL- (RIGHT),NY,MAN, (BLACK)FOOTWELL- (RIGHT),NY,MAN, (BLACK)
-
377512232 BOLTBOLT
-
385811111 FOIL FOAMFOIL FOAM
-
395811106 FOIL,FR,REAR CABFOIL,FR,REAR CAB
-
405811087 FOIL,(6X1)FOIL,(6X1)
-
417079902 DECAL-4 STRK,CARB/FILTER INFODECAL-4 STRK,CARB/FILTER INFO
