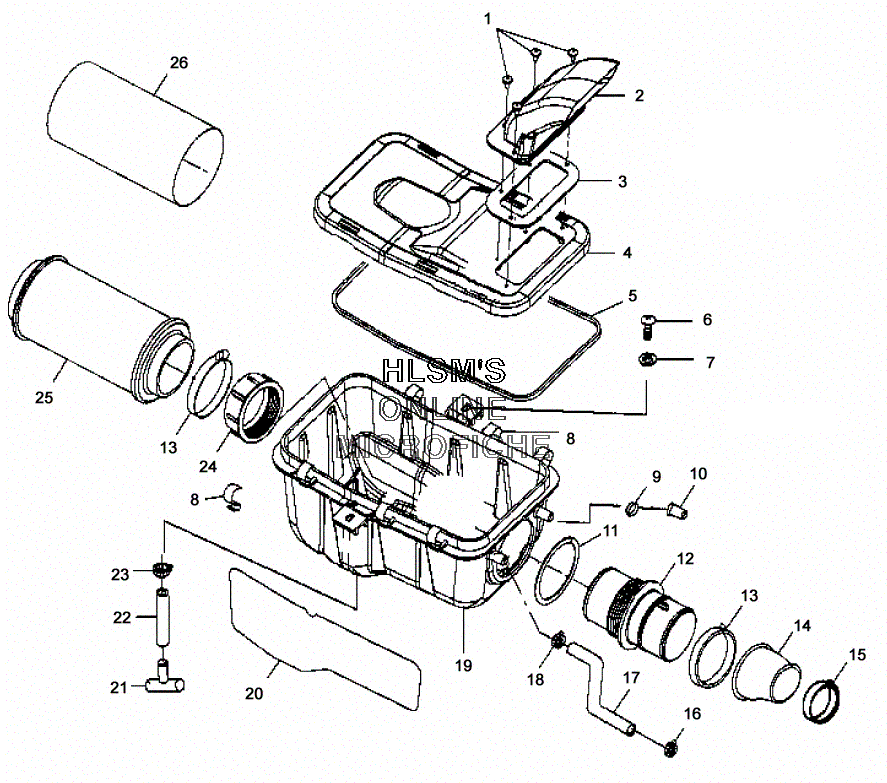

AIR BOX ASSY. для Polaris XPEDITION 325 (A02CK32AA) - 2002 года выпуска
-
№АртикулНазвание
-
17517317 SCREWSCREW
-
25432859 DUCT,INLET,AIRBOX COVERDUCT,INLET,AIRBOX COVER
-
35411422 GASKET,INTAKEGASKET,INTAKE
-
45432868 COVER,AIRBOXCOVER,AIRBOX
-
55811482 SEAL,AIRBOX COVERSEAL,AIRBOX COVER
-
67515179 SCREWSCREW
-
77558301 WASHERWASHER
-
85243694 CLIP,AIRBOX,LOWPROFILECLIP,AIRBOX,LOWPROFILE
-
97080534 CLAMP,SPRING,CLAMP,SPRING,
-
105433396 CAP,END,AIRBX IN,406-12,3/4 (BLACK)CAP,END,AIRBX IN,406-12,3/4 (BLACK)
-
115830128 GASKET,CARB.IN.DUCTGASKET,CARB.IN.DUCT
-
125433180 DUCT-CARB INLETDUCT-CARB INLET
-
137080413 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
145411810 BOOT,CARB,325 MAN.BOOT,CARB,325 MAN.
-
157080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
167080694 CLAMP,HOSE,SPRINGCLAMP,HOSE,SPRING
-
175411866 HOSE,BRTHR,.47-.38X13.5''HOSE,BRTHR,.47-.38X13.5''
-
187080699 CLAMP,HOSECLAMP,HOSE
-
195433678 BOX,AIR INTAKE,4-STRKBOX,AIR INTAKE,4-STRK
-
205811650 FOIL,AIRBOXFOIL,AIRBOX
-
215432377 PLUG, TRAPPLUG, TRAP
-
228450059-150 FUEL LINEFUEL LINE
-
237080650 CLAMP,HOSE,CLAMP,HOSE,
-
245432601 COLLAR,CARB INLETCOLLAR,CARB INLET
-
257080595 FILTER,AIR INTAKEFILTER,AIR INTAKE
-
265811633 FILTER,PRECLEAN.SLEEVEFILTER,PRECLEAN.SLEEVE
