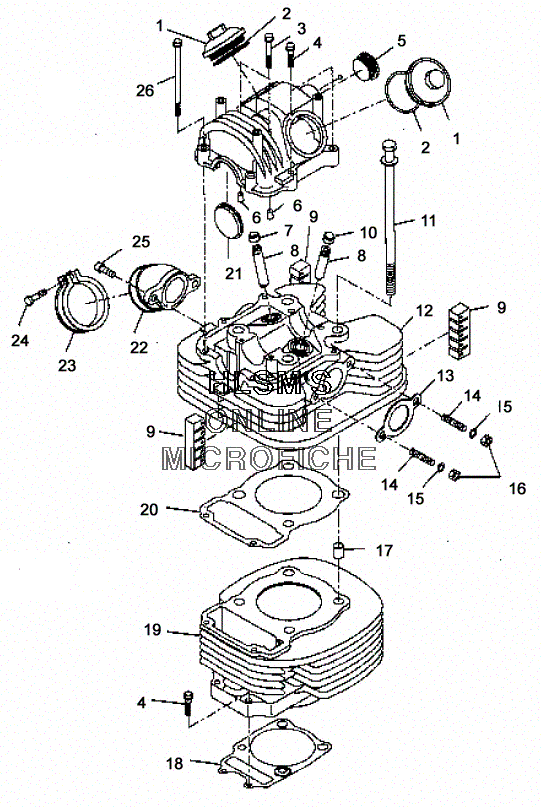

CYLINDER для Polaris XPEDITION 325 (A02CK32AA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3086413 COVER (VALVE)
    COVER (VALVE)
  • 2
    3086414 O-RING
    O-RING
  • 3
    3086412 BOLT,FLANGE
    BOLT,FLANGE
  • 4
    3084874 BOLT, FLANGE
    BOLT, FLANGE
  • 5
    3086417 PLUG,CYLINDER BLOCK
    PLUG,CYLINDER BLOCK
  • 6
    3086410 PIN,STRAIGHT
    PIN,STRAIGHT
  • 7
    3084858 SEAL,INTAKE VALVE
    SEAL,INTAKE VALVE
  • 8
    3084994 GUIDE,VALVE
    GUIDE,VALVE
  • 9
    3084798 FIN DAMPER A
    FIN DAMPER A
  • 10
    3084859 SEAL,EXHAUST VALVE
    SEAL,EXHAUST VALVE
  • 11
    3086418 BOLT AND WASHER
    BOLT AND WASHER
  • 12
    3086796 CYLINDER,SM,HEAD (INCL. 3,4,6-10, 12,14)
    CYLINDER,SM,HEAD (INCL. 3,4,6-10, 12,14)
  • 13
    3086421 GASKET-EXHAUST
    GASKET-EXHAUST
  • 14
    3085326 STUD,
    STUD,
  • 15
    3080530 WASHER LOCK ,
    WASHER LOCK ,
  • 16
    3080285 NUT
    NUT
  • 17
    3084838 PIN,STRAIGHT
    PIN,STRAIGHT
  • 18
    3086407 GASKET-CYLINDER
    GASKET-CYLINDER
  • 19
    3086883 CYLINDER,UNIT
    CYLINDER,UNIT
  • 20
    3086415 GASKET-HEAD
    GASKET-HEAD
  • 21
    3086416 GASKET-CAM
    GASKET-CAM
  • 22
    3087050 ADAPTER
    ADAPTER
  • 23
    3083166 BAND ASSY. (INCL. 24)
    BAND ASSY. (INCL. 24)
  • 24
    3081497 SCREW,
    SCREW,
  • 25
    3081330 BOLT, ALLEN
    BOLT, ALLEN
  • 26
    3086419 BOLT,FLANGE
    BOLT,FLANGE
