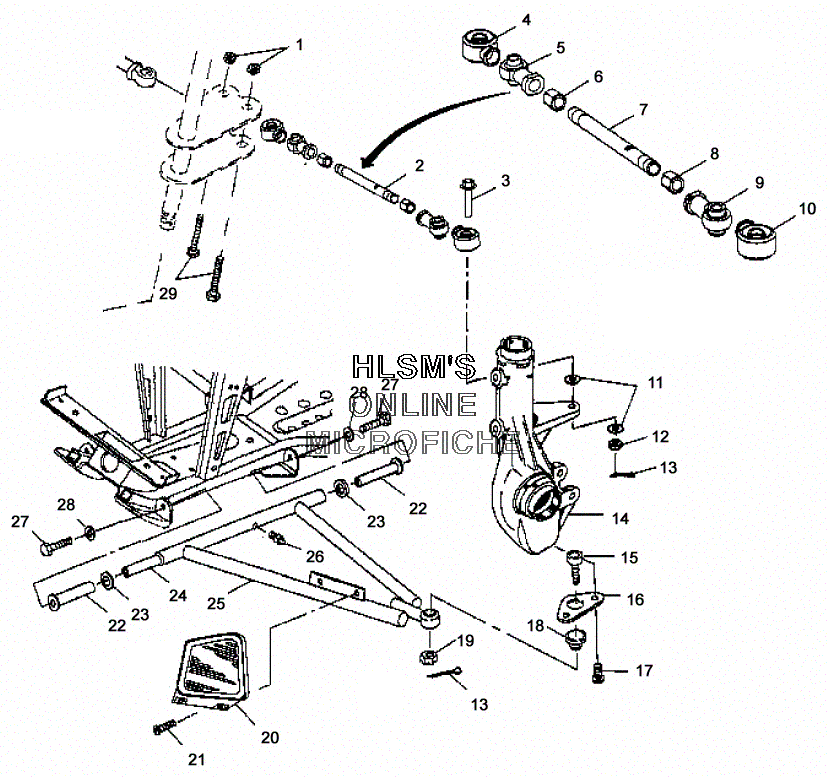

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris XPEDITION 325 (A02CK32AA) - 2002 года выпуска`
-
№АртикулНазвание
-
17542439 NUT,NYLOKNUT,NYLOK
-
21820805 TIE,ROD,1/2-20X13.4,ASSY. (INCL. 4-9)TIE,ROD,1/2-20X13.4,ASSY. (INCL. 4-9)
-
37517909 BOLT-M10X1.25X65,HX WASH HDBOLT-M10X1.25X65,HX WASH HD
-
45411291 SEAL,BOOT,ROD END,1/2 INSEAL,BOOT,ROD END,1/2 IN
-
57061034 ROD END, (RIGHT)ROD END, (RIGHT)
-
67542711 NUT-JAMNUT-JAM
-
75020926 ROD,TIEROD,TIE
-
87547028 NUT, (LEFT),JAMNUT, (LEFT),JAM
-
97061054 ROD,END,10MM,1/2-20 (LEFT),42 DEGROD,END,10MM,1/2-20 (LEFT),42 DEG
-
105411920 BOOT,SEAL,ROD END,10MMBOOT,SEAL,ROD END,10MM
-
117547177 NUT-M10X1.25-HX-LOCK-YNUT-M10X1.25-HX-LOCK-Y
-
127661203 PIN COTTERPIN COTTER
-
147080927 BALL-JOINT,52 DEG,ATVBALL-JOINT,52 DEG,ATV
-
155211121 BRKT, BALL JOINTBRKT, BALL JOINT
-
167512284 BOLT, SOCKETBOLT, SOCKET
-
175410548 BOOT, RUBBERBOOT, RUBBER
-
187542438 NUT, CASTLENUT, CASTLE
-
195431150-070 SHIELD-CV JOINT, (LEFT), (BLACK)SHIELD-CV JOINT, (LEFT), (BLACK)
-
195431149-070 SHIELD-CV JOINT, (RIGHT), (BLACK)SHIELD-CV JOINT, (RIGHT), (BLACK)
-
207512084 SCREWSCREW
-
215434551 BUSHING-A-ARM,LONG, (BLACK)BUSHING-A-ARM,LONG, (BLACK)
-
225020677 BUSHING,A-ARM SPACERBUSHING,A-ARM SPACER
-
235020681 SHAFT-A-ARMSHAFT-A-ARM
-
242201609 KIT-A-FRAME,(LEFT) (1541870)KIT-A-FRAME,(LEFT) (1541870)
-
242201610 KIT-A-FRAME,(RIGHT) (1541871)KIT-A-FRAME,(RIGHT) (1541871)
-
257080433 ZERK,FITTING,THREADEDZERK,FITTING,THREADED
-
267512492 SCREWSCREW
-
277552603 WASHERWASHER
-
287515415 BOLTBOLT
