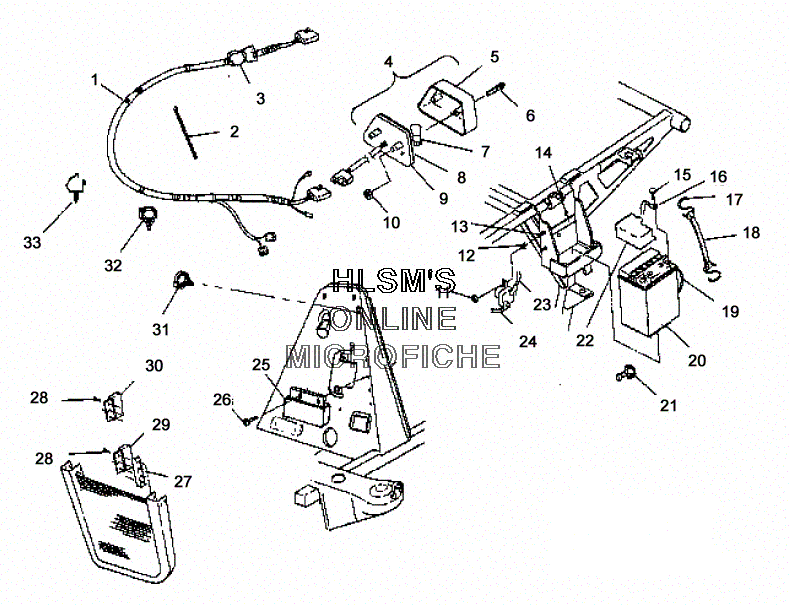

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris XPEDITION 325 (A02CK32AA) - 2002 года выпуска`
-
№АртикулНазвание
-
12460866 HARNESS-MAIN,WIRE,XPD 325HARNESS-MAIN,WIRE,XPD 325
-
27080138 STRAP PANDUITSTRAP PANDUIT
-
32201795 KIT-CIRCUT BREAKER,FANKIT-CIRCUT BREAKER,FAN
-
42410221 TAIL LIGHT NEGATIVE POLAR,ASSY. (INCL. 5-10)TAIL LIGHT NEGATIVE POLAR,ASSY. (INCL. 5-10)
-
54032046 LENS,TAILLIGHTLENS,TAILLIGHT
-
64032029 SCREW, TAILLIGHTSCREW, TAILLIGHT
-
74030043 BULB,TAILLIGHTBULB,TAILLIGHT
-
84032045 GASKET,TAILLIGHTGASKET,TAILLIGHT
-
94032064 BACKING,TAILLIGHTBACKING,TAILLIGHT
-
107670054 NUT, PUSH-ONNUT, PUSH-ON
-
117541925 NUTNUT
-
127571602 WASHERWASHER
-
137512027 SCREWSCREW
-
145810290 PAD, BATTERYPAD, BATTERY
-
152200361 BOLT,BATT,KIT(SHORT)BOLT,BATT,KIT(SHORT)
-
164010095 CABLE,BATT/ENG., (BLACK).CABLE,BATT/ENG., (BLACK).
-
177010032 HOOK-BATT.HOOK-BATT.
-
185410424 STRAP,BATTERY HOLDDOWNSTRAP,BATTERY HOLDDOWN
-
195432077 TUBE,BATTERY VENTTUBE,BATTERY VENT
-
204140006 BATTERYBATTERY
-
217670102 CLIP,SILENCER,CLIP,SILENCER,
-
225431769 COVER,BATTERYCOVER,BATTERY
-
234010094 CABLE,BATT/SOLENOID,REDCABLE,BATT/SOLENOID,RED
-
244010093 CABLE,SOL/STARTERCABLE,SOL/STARTER
-
254010249 SWITCH-THERMISTER,LR-60SWITCH-THERMISTER,LR-60
-
267512017 SCREWSCREW
-
275132214 SINK,HEATSINK,HEAT
-
287512018 SCREWSCREW
-
294060191 RECTIFIER/REGULATOR,LR-35RECTIFIER/REGULATOR,LR-35
-
304010285 SWITCH-HUB SAFETY,LR-84SWITCH-HUB SAFETY,LR-84
-
314020139 CLIP, PLASTICCLIP, PLASTIC
-
324020149 CLIP,ROSEBUDCLIP,ROSEBUD
-
337670109 CLIP-ROUTINGCLIP-ROUTING
