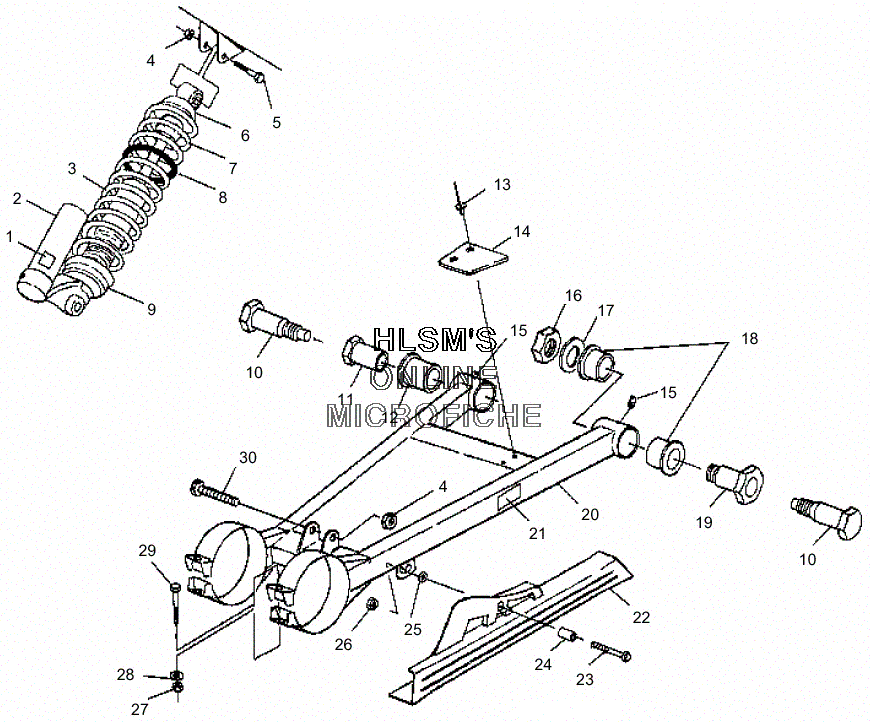

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска`
-
№АртикулНазвание
-
17075343 DECAL, WARN SHOCKDECAL, WARN SHOCK
-
27041867 SHOCK, MONO GASSHOCK, MONO GAS
-
37041864-067 SPRING (BLACK)SPRING (BLACK)
-
47542439 NUT, LOCKNUT, LOCK
-
57515415 BOLTBOLT
-
65631045 RETAINER, SPRINGRETAINER, SPRING
-
77041865-067 SPRING (BLACK)SPRING (BLACK)
-
85433550 SPACER, SPRINGSPACER, SPRING
-
91500278 RING, SPRING PRELOADRING, SPRING PRELOAD
-
105131697 BOLT, SWING ARM PIVOTBOLT, SWING ARM PIVOT
-
115131695 BUSHING, SWING ARM PIVOT (LEFT)BUSHING, SWING ARM PIVOT (LEFT)
-
125433411 BUSHING, SWING ARM (LEFT)BUSHING, SWING ARM (LEFT)
-
137661046 RIVET, POP (3/16) (.376-.500)RIVET, POP (3/16) (.376-.500)
-
145432727 GUIDE, CHAIN PADGUIDE, CHAIN PAD
-
157080510 FITTING, ZERKFITTING, ZERK
-
167547082 NUT, HEXAGON JAMNUT, HEXAGON JAM
-
177556035 WASHER,FLATWASHER,FLAT
-
185433412 BUSHING, SWING ARM RHBUSHING, SWING ARM RH
-
195131696 BUSHING, SWING ARM PIVOT (RIGHT)BUSHING, SWING ARM PIVOT (RIGHT)
-
201541397 SWING ARM, LONG TRVL (16.85") (INCL. 12,15,18)SWING ARM, LONG TRVL (16.85") (INCL. 12,15,18)
-
217078572 DECAL, "CHAIN FREEPLAY"DECAL, "CHAIN FREEPLAY"
-
225432854 GUARD, CHAIN REAR AXLEGUARD, CHAIN REAR AXLE
-
237515304 SCREW, FLANGEDSCREW, FLANGED
-
245332828 BUSHINGBUSHING
-
257558402 WASHER STEELWASHER STEEL
-
267542321 NUT, LOCKNUT, LOCK
-
277542503 NUT, LOCKNUT, LOCK
-
287555883 WASHERWASHER
-
297512576 BOLTBOLT
-
307517761 SCREWSCREW
