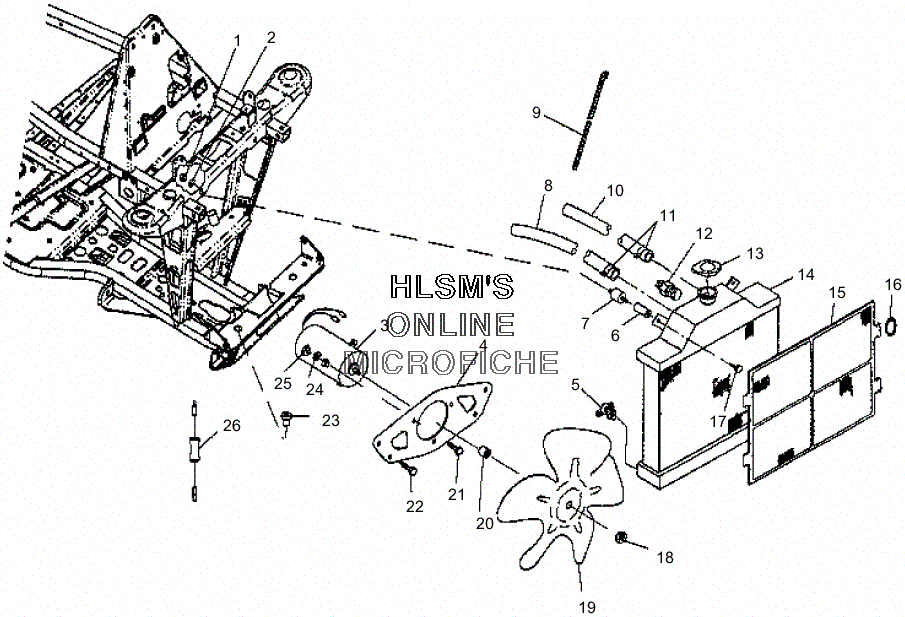

COOLING SYSTEM для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска`
-
№АртикулНазвание
-
17542122 NUT, LOCKNUT, LOCK
-
27558301 WASHERWASHER
-
34170011 MOTOR, FAN LQ W/CONNECTOR (BUILT BEFORE 1/01/00)MOTOR, FAN LQ W/CONNECTOR (BUILT BEFORE 1/01/00)
-
32410141 FAN MOTOR CONN. (BUILT AFTER 1/01/00)FAN MOTOR CONN. (BUILT AFTER 1/01/00)
-
45241355-067 BRKT, COOL FAN (BLACK)BRKT, COOL FAN (BLACK)
-
57052181 VALVE, DRAIN COCKVALVE, DRAIN COCK
-
65020937 SPACER, RADIATOR MOUNTSPACER, RADIATOR MOUNT
-
73110032 MOUNT, RUBBERMOUNT, RUBBER
-
97080492 STRAP, WEATHER-RESIST. (BLACK)STRAP, WEATHER-RESIST. (BLACK)
-
117080614 CLAMP, HOSECLAMP, HOSE
-
124110226 SWITCH, THERMAL FANSWITCH, THERMAL FAN
-
132511189 CAP, RADIATORCAP, RADIATOR
-
141240015 RADIATOR, "U" FLOWRADIATOR, "U" FLOW
-
155431610 COVER, RADIATOR W/MESH (BUILT BEFORE 9/01/99)COVER, RADIATOR W/MESH (BUILT BEFORE 9/01/99)
-
165410607 O-RING (BUILT BEFORE 9/01/99)O-RING (BUILT BEFORE 9/01/99)
-
177515133 SCREWSCREW
-
187542154 NUTNUT
-
195240822 BLADE, FANBLADE, FAN
-
205333457 SPACERSPACER
-
217511875 SCREWSCREW
-
227512232 BOLTBOLT
-
235410584 BUSHING, MOUNT LOW (RED)BUSHING, MOUNT LOW (RED)
-
247558201 WASHER, FLATWASHER, FLAT
-
257547004 NUTNUT
-
264010369 SENSORSENSOR
